Front window guide for BMW 3 Series E30 325i (1988)

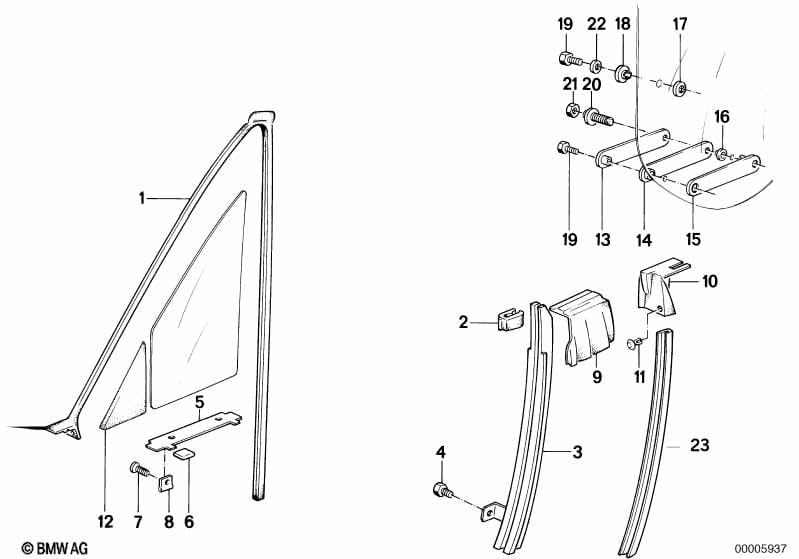

This Front window guide technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket left | 1 | 05/1988 | 51211929895 | $161.53 | Shop at ECS Tuning | ||||
| 01 | Gasket right | 1 | 05/1988 | 51211929896 | $161.53 | Shop at ECS Tuning | ||||
| 02 | Stop buffer | 1 | 51321939499 | $3.15 | ENDED | Shop at ECS Tuning | ||||
| 03 | Window guide rail left | 1 | 51321934893 | $36.07 | Shop at ECS Tuning | |||||
| 03 | Window guide rail right | 1 | 51321934894 | $36.07 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 51321922760 | $5.03 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cap | 2 | 51211847767 | $0.43 | ENDED | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,8X13-Z2 | 1 | 07119907957 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Body nut | ST 4,8-7-ZNS3 | 1 | 07129904226 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Covering left | 1 | 51321924731 | $76.09 | Shop at ECS Tuning | |||||
| 09 | Covering right | 1 | 51321924732 | $76.09 | Shop at ECS Tuning | |||||
| 10 | Covering left | 1 | 51361933773 | $38.71 | Shop at ECS Tuning | |||||
| 10 | Covering right | 1 | 51361933774 | $38.71 | ENDED | Shop at ECS Tuning | ||||
| 11 | Expanding rivet | 2 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 12 | Covering left | 1 | 51321904517 | $15.98 | Shop at ECS Tuning | |||||
| 12 | Covering right | 1 | 51321904518 | $15.98 | Shop at ECS Tuning | |||||
| 13 | Clamping | 1 | 51371935108 | $4.28 | Shop at ECS Tuning | |||||
| 14 | Intermediate piece, interior | 1 | 51371935110 | $0.91 | Shop at ECS Tuning | |||||
| 15 | Intermediate piece, exterior | 1 | 51371935111 | $0.91 | Shop at ECS Tuning | |||||
| 16 | Spacer bush | 1 | 51371935113 | $1.77 | Shop at ECS Tuning | |||||
| 17 | Washer | 10,5X25X1,5 | 1 | 51371919838 | $0.57 | Shop at ECS Tuning | ||||
| 18 | Clamp | 1 | 51371919855 | $0.55 | Shop at ECS Tuning | |||||
| 19 | Hex bolt with washer | M6X12-U2-8.8 | 2 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 20 | Adjusting screw | 1 | 51361932849 | $1.58 | Shop at ECS Tuning | |||||
| 21 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 22 | Washer | 8,4X24X2-ZNS3 | 1 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 23 | Covering left | 1 | 51361922165 | $22.75 | Shop at ECS Tuning | |||||
| 23 | Covering right | 1 | 51361922166 | $23.63 | Shop at ECS Tuning |
