Door window lifting mechanism rear for BMW 7 Series E32 735iL (1992)

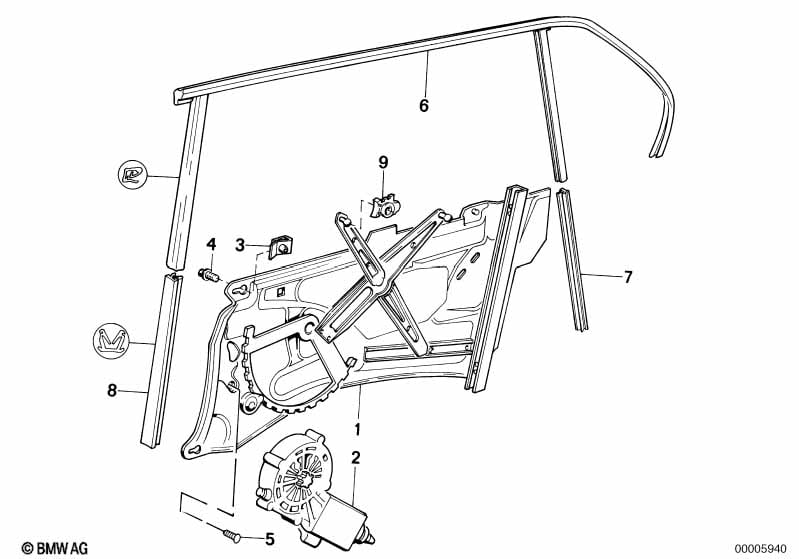

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Electr.window lifter rear left | 1 | 51348147531 | $127.57 | Shop at ECS Tuning | |||||
| 01 | Electr.window lifter rear right | 1 | 51348147532 | $127.57 | Shop at ECS Tuning | |||||
| 02 | Electr.drive left | 1 | 03/1988 | 51331388611 | $338.85 | ENDED | Shop at ECS Tuning | |||
| 02 | Electr.drive right | 1 | 03/1988 | 51331388612 | $338.85 | Shop at ECS Tuning | ||||
| 03 | C-clip nut | M6-ZNS3 | 4 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | 8 | 51341950474 | $0.59 | Shop at ECS Tuning | |||||
| 05 | Countersunk head screw | 6 | 51371952879 | $0.80 | Shop at ECS Tuning | |||||
| 06 | Left rear window guide | 1 | 51348111205 | $140.68 | Shop at ECS Tuning | |||||
| 06 | Rear right window guide | 1 | 51348111206 | $144.62 | Shop at ECS Tuning | |||||
| 07 | Window guide | 2 | 10/1990 | 51348127735 | $7.02 | Shop at ECS Tuning | ||||
| 08 | Window guide | 438MM | 2 | 51341938062 | $6.70 | Shop at ECS Tuning | ||||
| 09 | Sliding piece | 4 | 51321938884 | $3.02 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
