Door window lifting mechanism front for BMW 5 Series E34 524td (1991)

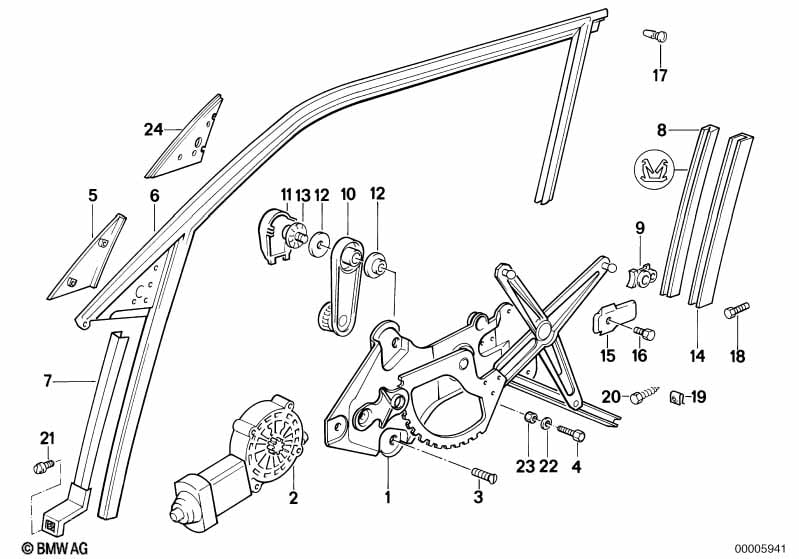

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter front left | 1 | 51321944061 | $74.98 | Shop at ECS Tuning | |||||
| 01 | Window lifter front right | 1 | 51321944062 | $74.98 | Shop at ECS Tuning | |||||
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 01 | Electr.window lifter front left | 1 | 51321944069 | $120.82 | Shop at ECS Tuning | |||||
| 01 | Electr.window lifter front right | 1 | 51321944070 | $120.82 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 02 | Electr.drive | 1 | 67628359374 | $147.05 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 02 | Electr.drive | 1 | 67628359373 | $147.05 | ENDED | Shop at ECS Tuning | ||||
| 03 | Countersunk head screw | 6 | 51371952879 | $0.80 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X10-8.8-ZNS3 | X | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Covering inner left | SCHWARZ | 1 | 09/1990 | 51328138885 | $7.80 | Shop at ECS Tuning | |||
| 05 | Covering inner right | SCHWARZ | 1 | 09/1990 | 51328138886 | $7.80 | ENDED | Shop at ECS Tuning | ||
| 06 | Front left window guide | 1 | 51328176585 | $84.27 | ENDED | Shop at ECS Tuning | ||||
| 06 | Front right window guide | 1 | 51328176586 | $84.27 | ENDED | Shop at ECS Tuning | ||||
| 07 | Guide rail front left | 1 | 51321944525 | $21.01 | Shop at ECS Tuning | |||||
| 07 | Guide rail front right | 1 | 51321944526 | $21.01 | Shop at ECS Tuning | |||||
| 08 | Window guide | 438MM | 2 | 51341938062 | $6.70 | Shop at ECS Tuning | ||||
| 09 | Sliding piece | 4 | 51321938884 | $3.02 | Shop at ECS Tuning | |||||
| 10 | Window crank | SCHWARZ | 2 | 09/1993 | 51328181385 | $20.32 | Shop at ECS Tuning | |||
| 10 | Window crank | KARMESINROT | 2 | 09/1988 | 09/1993 | 51328181391 | ENDED | Shop at ECS Tuning | ||
| 10 | Window crank | SILBERGRAU | 2 | 09/1990 | 09/1993 | 51328126719 | $20.32 | Shop at ECS Tuning | ||
| 10 | Window crank | ULTRAMARIN | 2 | 09/1990 | 09/1993 | 51328126751 | ENDED | Shop at ECS Tuning | ||
| 10 | Window crank | PERGAMENT | 2 | 09/1990 | 09/1993 | 51328126753 | $14.95 | Shop at ECS Tuning | ||
| 10 | Window crank | BRASIL | 2 | 09/1990 | 09/1993 | 51328126755 | ENDED | Shop at ECS Tuning | ||
| 10 | Window crank | SILBERGRAU HELL | 2 | 09/1990 | 09/1993 | 51328138772 | Shop at ECS Tuning | |||
| 11 | Cover | SCHWARZ | 2 | 09/1993 | 51321906497 | $1.77 | Shop at ECS Tuning | |||
| 11 | Cover | KARMESINROT | 2 | 09/1988 | 09/1993 | 51168117116 | ENDED | Shop at ECS Tuning | ||
| 11 | Cover | SILBERGRAU | 2 | 09/1990 | 09/1993 | 51328126757 | $1.74 | ENDED | Shop at ECS Tuning | |
| 11 | Cover | ULTRAMARIN | 2 | 09/1990 | 09/1993 | 51328126759 | Shop at ECS Tuning | |||
| 11 | Cover | PERGAMENT | 2 | 09/1990 | 09/1993 | 51328126797 | Shop at ECS Tuning | |||
| 11 | Cover | BRASIL | 2 | 09/1990 | 09/1993 | 51328126798 | ENDED | Shop at ECS Tuning | ||
| 11 | Cover | SILBERGRAU HELL | 2 | 09/1990 | 09/1993 | 51328138773 | ENDED | Shop at ECS Tuning | ||
| 12 | Stop disk | KARMESINROT | 2 | 09/1989 | 09/1993 | 51328117117 | ENDED | Shop at ECS Tuning | ||
| 12 | Stop disk | SILBERGRAU | 2 | 09/1990 | 09/1993 | 51328126711 | ENDED | Shop at ECS Tuning | ||
| 12 | Stop disk | ULTRAMARIN | 2 | 09/1990 | 09/1993 | 51328126713 | Shop at ECS Tuning | |||
| 12 | Stop disk | PERGAMENT | 2 | 09/1990 | 09/1993 | 51328126715 | Shop at ECS Tuning | |||
| 12 | Stop disk | BRASIL | 2 | 09/1990 | 09/1993 | 51328126717 | ENDED | Shop at ECS Tuning | ||
| 12 | Stop disk | SILBERGRAU HELL | 2 | 09/1990 | 09/1993 | 51328138771 | ENDED | Shop at ECS Tuning | ||
| 13 | Torx-bolt with washer | ISA M5X10 | 2 | 54121907282 | $0.89 | ENDED | Shop at ECS Tuning | |||
| 14 | Guide rail front left | 1 | 51321944041 | $18.92 | ENDED | Shop at ECS Tuning | ||||
| 14 | Guide rail front right | 1 | 51321944042 | $18.92 | Shop at ECS Tuning | |||||
| 15 | Stopper | 2 | 51331908448 | $9.63 | Shop at ECS Tuning | |||||
| 16 | Hex bolt | M6X8 | 2 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 17 | Clamp | 2 | 51221856946 | $0.44 | Shop at ECS Tuning | |||||
| 18 | Fillister-head screw | 2 | 51328181425 | $0.59 | Shop at ECS Tuning | |||||
| 19 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | 2 | 51341950474 | $0.59 | Shop at ECS Tuning | |||||
| 21 | Screw | 2 | 51221944316 | $0.66 | Shop at ECS Tuning | |||||
| 22 | Washer | A6,4-ZNNIV SI | X | 07119904202 | Shop at ECS Tuning | |||||
| 23 | Hex nut | M6-8-ZNNIV SI | X | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 24 | Inner left gasket | 1 | 51328107575 | $0.57 | Shop at ECS Tuning | |||||
| 24 | Inner right gasket | 1 | 51328107576 | $0.57 | Shop at ECS Tuning | |||||
| 24 | Exterior left gasket | 1 | 51328181905 | $2.73 | Shop at ECS Tuning | |||||
| 24 | Exterior right gasket | 1 | 51328181906 | $2.73 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
