Window guide, rear for BMW 3 Series E30 325ix (1992)

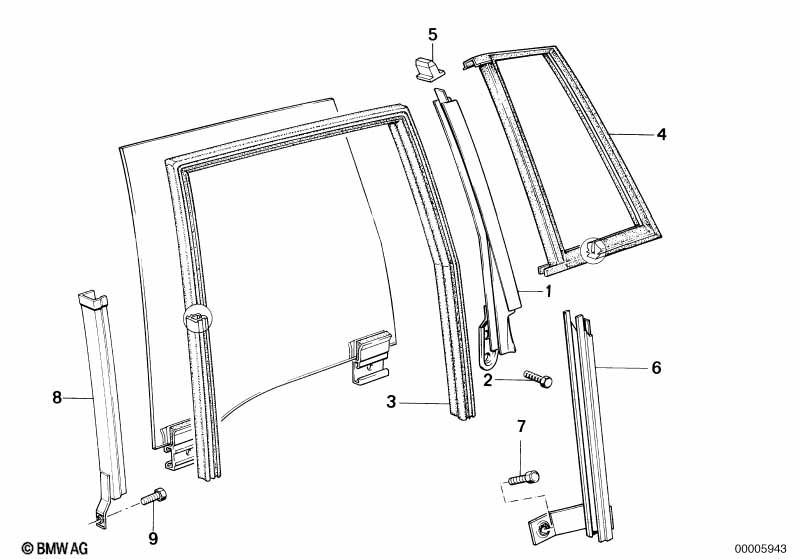

This Window guide, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window guide rail left | 1 | 51341947209 | Shop at ECS Tuning | ||||||
| 01 | Window guide rail right | 1 | 51341947210 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt with washer | M6X12-Z4-2 | 4 | 07119915015 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Left One-piece window guide | 1 | 51341906807 | $60.59 | Shop at ECS Tuning | |||||
| 03 | Right One-piece window guide | 1 | 51341906808 | $60.59 | Shop at ECS Tuning | |||||
| 04 | Window sealing rear left | 1 | 51341947205 | Shop at ECS Tuning | ||||||
| 04 | Window sealing rear right | 1 | 51341947206 | $47.15 | ENDED | Shop at ECS Tuning | ||||
| 05 | Grommet | 1 | 51341922700 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 06 | Guide rail rear left | 1 | 04/1988 | 51341965051 | $18.38 | ENDED | Shop at ECS Tuning | |||
| 06 | Guide rail rear right | 1 | 04/1988 | 51341965052 | $24.55 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 04/1988 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 08 | Guide rail front left | 1 | 04/1988 | 41521961879 | $12.95 | Shop at ECS Tuning | ||||
| 08 | Guide rail front right | 1 | 04/1988 | 41521961880 | $9.75 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X10-Z1 | 2 | 04/1988 | 07119915057 | $3.05 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
