Outside mirror for BMW 3 Series E21 320 (1977)

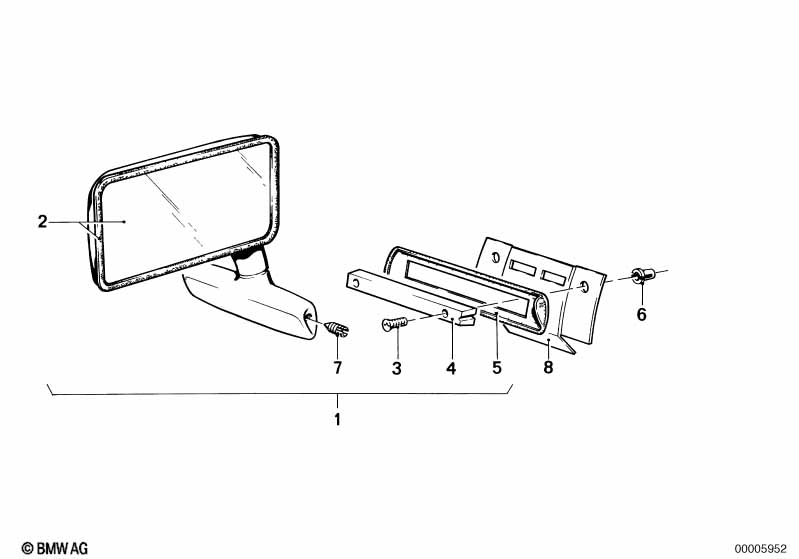

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exterior mirror left | LHD | 1 | 08/1979 | 51161821793 | $204.09 | ENDED | Shop at ECS Tuning | ||
| 01 | Exterior mirror right | LHD | 1 | 08/1979 | 51161822076 | $204.09 | ENDED | Shop at ECS Tuning | ||
| 02 | Mirror glass (driver's side) | HOHE | 1 | 08/1979 | 51161869887 | $36.80 | ENDED | Shop at ECS Tuning | ||
| 02 | Mirror glass (co-driver's side) | HOHE | 1 | 08/1979 | 51161869917 | $36.80 | ENDED | Shop at ECS Tuning | ||
| 02 | Mirror glass (driver's side) | HOHE | 1 | 51161869887 | $36.80 | ENDED | Shop at ECS Tuning | |||
| 03 | Csk.fillister head srew | M4X20 | 2 | 08/1979 | 07119928439 | $2.87 | Shop at ECS Tuning | |||
| 04 | Mirror holder | 1 | 08/1979 | 51161832567 | $7.17 | ENDED | Shop at ECS Tuning | |||
| 05 | Seal seft | 1 | 08/1979 | 51161822061 | $12.09 | Shop at ECS Tuning | ||||
| 05 | Seal right | 1 | 08/1979 | 51161822062 | $12.09 | Shop at ECS Tuning | ||||
| 06 | Nut | M4 | 2 | 08/1979 | 07129925804 | $1.09 | ENDED | Shop at ECS Tuning | ||
| 07 | Grub screw | 1 | 08/1979 | 51161808536 | $2.16 | ENDED | Shop at ECS Tuning | |||
| 08 | Reinforcement | 1 | 08/1979 | 51161847529 | $3.82 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
