Electr. exterior mirror for BMW 3 Series E21 323i (1979)

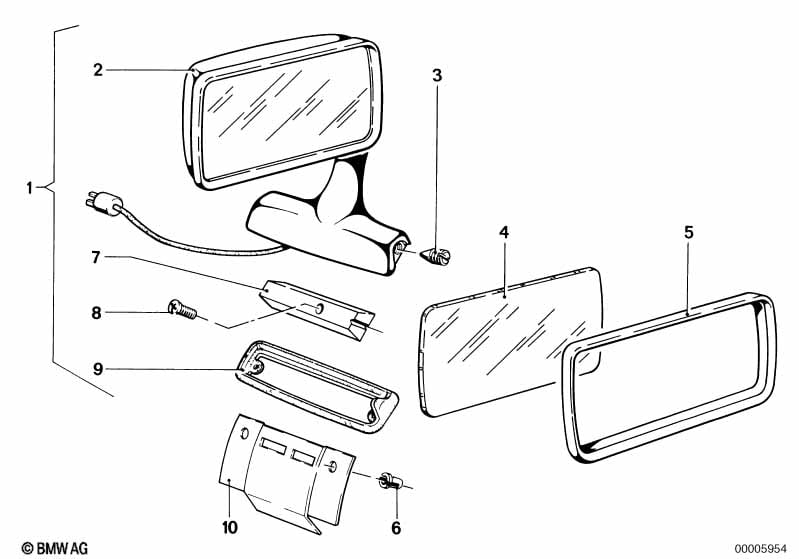

This Electr. exterior mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.exterior mirror right | 1 | 08/1979 | 51161846388 | ENDED | Shop at ECS Tuning | ||||
| 02 | Electr.exterior mirror left | 1 | 08/1979 | 51161846385 | ENDED | Shop at ECS Tuning | ||||
| 02 | Electr.exterior mirror right | 1 | 08/1979 | 51161846388 | ENDED | Shop at ECS Tuning | ||||
| 03 | Grub screw | 1 | 08/1979 | 51161845083 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Mirror glass (co-driver's side) | 1 | 08/1979 | 51161836187 | $24.55 | Shop at ECS Tuning | ||||
| 04 | Mirror glass (driver's side) | 1 | 08/1979 | 51161840049 | $19.00 | ENDED | Shop at ECS Tuning | |||
| 05 | Glass holding frame outer | 1 | 08/1979 | 51161827186 | $90.40 | ENDED | Shop at ECS Tuning | |||
| 06 | Nut | M4 | 2 | 08/1979 | 07129925804 | $1.09 | ENDED | Shop at ECS Tuning | ||
| 07 | Mirror holder left | 1 | 08/1979 | 51161842073 | $5.34 | ENDED | Shop at ECS Tuning | |||
| 07 | Mirror holder right | 1 | 08/1979 | 51161842074 | $5.34 | ENDED | Shop at ECS Tuning | |||
| 08 | Csk.fillister head srew | M4X20 | 2 | 08/1979 | 07119928439 | $2.87 | Shop at ECS Tuning | |||
| 09 | Intermediate piece, left | 1 | 08/1979 | 51161842075 | $13.59 | ENDED | Shop at ECS Tuning | |||
| 09 | Intermediate piece, right | 1 | 08/1979 | 51161842076 | $13.95 | ENDED | Shop at ECS Tuning | |||
| 10 | Reinforcement | 1 | 08/1979 | 51161847529 | $3.82 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
