Interior rear-view mirror for BMW 5 Series E12 520 (1976)

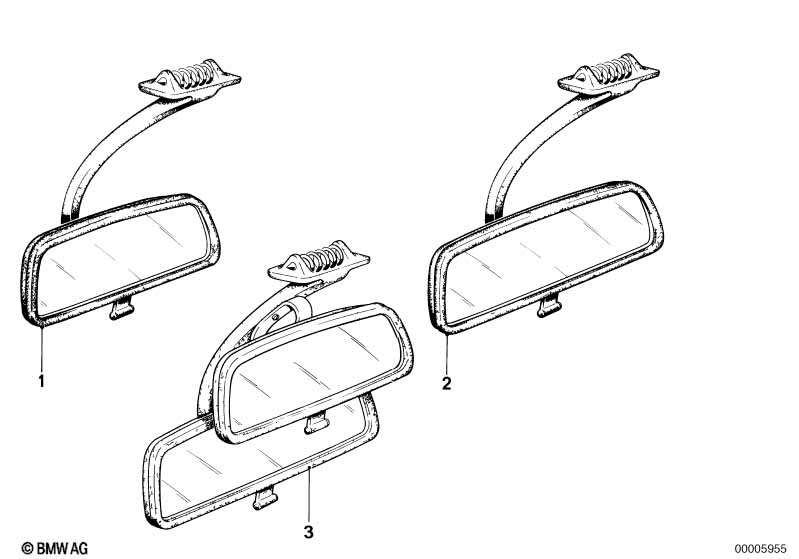

This Interior rear-view mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interior rear-view mirror | 1 | 08/1978 | 51161817122 | $112.54 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Interior rear-view mirror | 1 | 08/1978 | 51161817121 | $115.66 | ENDED | Shop at ECS Tuning | |||
| 01 | Interior rear-view mirror | 1 | 08/1978 | 51161817122 | $112.54 | ENDED | Shop at ECS Tuning | |||
| 03 | Tandem interior mirror | 1 | 51161921403 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Interior rear-view mirror?
- This technical diagram illustrates the Interior rear-view mirror within the Vehicle trim group for the 5 Series E12 520 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Interior rear-view mirror (Part #51161817122).
- Which models use the hardware listed in this Interior rear-view mirror?
- The hardware and components featured in the Interior rear-view mirror are specific to the 5 Series E12 520 produced during 1976. These technical specifications ensure that parts like the Interior rear-view mirror (51161817122) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Interior rear-view mirror assembly?
- Each item in the Interior rear-view mirror corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Interior rear-view mirror by locating its position on the schematic, which then links to the official BMW part number 51161817122 for the Vehicle trim section.
