Outside mirror for BMW 6 Series E24 633CSi (1982)

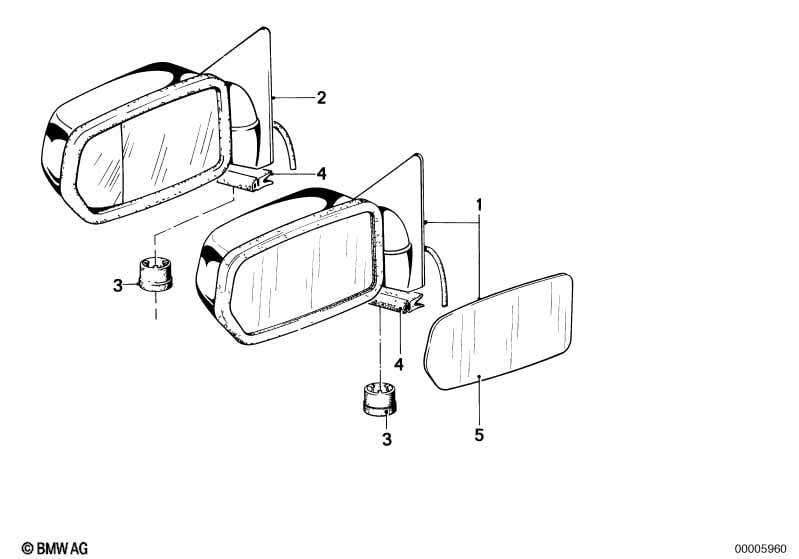

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.exterior heatable mirror left | CHROM | 1 | 09/1979 | 51161874927 | $406.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Electr.exterior heatable mirror left | CHROM | 1 | 09/1979 | 51161874927 | $406.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Electr.exterior heatable mirror right | CHROM | 1 | 09/1979 | 51161874930 | $406.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Electr.exterior heatable mirror right | CHROM | 1 | 09/1979 | 51161874930 | $406.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Electr.exterior heatable mirror right | 1 | 09/1979 | 51161904444 | $417.27 | ENDED | Shop at ECS Tuning | |||
| 01 | Electr.exterior heatable mirror right | 1 | 09/1979 | 51161904444 | $417.27 | ENDED | Shop at ECS Tuning | |||
| 01 | Electr.exterior heatable mirror left | SCHWARZ | 1 | 09/1979 | 51161925713 | $406.94 | Shop at ECS Tuning | |||
| 01 | Electr.exterior heatable mirror left | SCHWARZ | 1 | 09/1979 | 51161925713 | $406.94 | Shop at ECS Tuning | |||
| 01 | Electr.exterior heatable mirror right | SCHWARZ | 1 | 09/1979 | 51161926252 | $406.94 | ENDED | Shop at ECS Tuning | ||
| 01 | Electr.exterior heatable mirror right | SCHWARZ | 1 | 09/1979 | 51161926252 | $406.94 | ENDED | Shop at ECS Tuning | ||
| 03 | Cap | 1 | 51161859998 | $22.08 | Shop at ECS Tuning | |||||
| 04 | Gasket left | 1 | 51211866655 | $29.48 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket right | 1 | 51211866656 | $29.79 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 05 | Adhered heated mirror glas | 1 | 09/1979 | 51161874919 | $233.77 | Shop at ECS Tuning | ||||
| 05 | Adhered heated mirror glas | 1 | 09/1979 | 51161874919 | $233.77 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 05 | Adhered heated mirror glas | 1 | 09/1979 | 51161874922 | $115.86 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
