Outside mirror for BMW 7 Series E23 728i (1986)

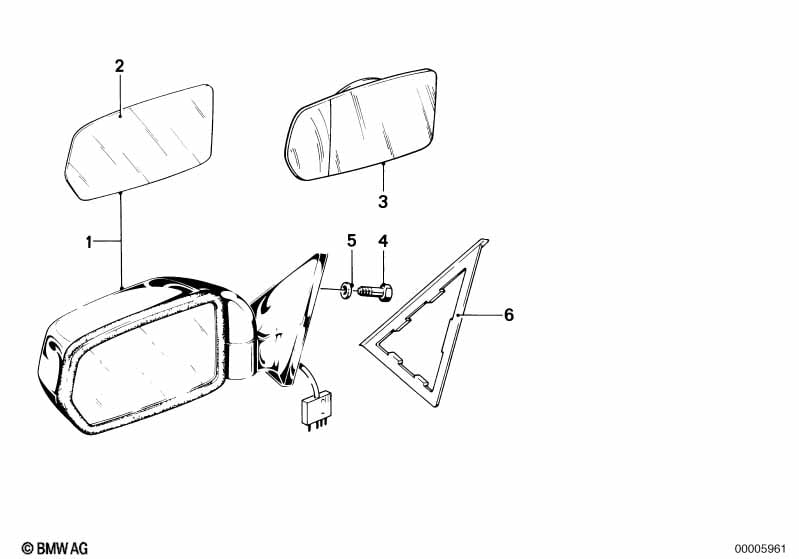

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.exterior mirror right | 1 | 01/1983 | 51161900222 | $284.58 | ENDED | Shop at ECS Tuning | |||
| 01 | Electr.exterior mirror left | 1 | 01/1983 | 51161900223 | ENDED | Shop at ECS Tuning | ||||
| 01 | Electr.exterior heatable mirror right | 1 | 01/1983 | 51161900234 | $284.58 | Shop at ECS Tuning | ||||
| 01 | Electr.exterior heatable mirror left | 1 | 01/1983 | 51161900235 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 02 | Mirror glass plugged-in | 1 | 01/1983 | 51161901170 | $33.90 | Shop at ECS Tuning | ||||
| 02 | Mirror glas heated,plugged-in | 1 | 01/1983 | 51161901176 | $67.35 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 02 | Mirror glass plugged-in | KONVEX | 1 | 01/1983 | 51161901172 | $29.30 | ENDED | Shop at ECS Tuning | ||
| 02 | Mirror glas heated,plugged-in | 1 | 01/1983 | 51161901177 | $85.54 | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | M5X10 | 6 | 07119907639 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Spring washer | B5 | 6 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Seal seft | 1 | 01/1983 | 51161900231 | $6.36 | ENDED | Shop at ECS Tuning | |||
| 06 | Seal right | 1 | 01/1983 | 51161900232 | $6.36 | ENDED | Shop at ECS Tuning | |||
