Outside mirror for BMW 3 Series E30 325i (1989)

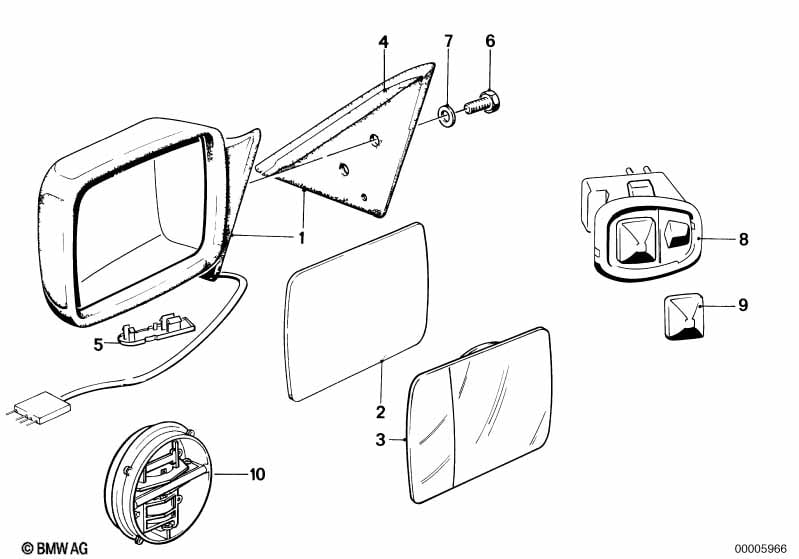

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.exterior heatable mirror left | 1 | 51168106597 | $227.21 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH MIRROR GLAS | ||||||||||
| 01 | Electr.exterior heatable mirror right | 1 | 51168106600 | $227.21 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH MIRROR GLAS | ||||||||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 02 | Mirror glas heated,plugged-in | 1 | 51161885906 | $89.88 | ENDED | Shop at ECS Tuning | ||||
| 02 | Mirror glass plugged-in | 1 | 51161901175 | $57.10 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 02 | Mirror glass plugged-in | 1 | 51161901170 | $33.90 | Shop at ECS Tuning | |||||
| 02 | Mirror glas heated,plugged-in | 1 | 51161901176 | $67.35 | Shop at ECS Tuning | |||||
| 04 | Seal seft | 1 | 51161904529 | $12.45 | ENDED | Shop at ECS Tuning | ||||
| 04 | Seal right | 1 | 51161904530 | $12.45 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover | LINKS | 1 | 51161937441 | $3.58 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover | RECHTS | 1 | 51161937442 | $3.58 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M5X12-8.8 ZN | 2 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 07 | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 07 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Mirror switch with change-over switch | 1 | 61311378847 | $67.34 | Shop at ECS Tuning | |||||
| 09 | Knob, switch exterior mirror | 1 | 61311372463 | $3.20 | Shop at ECS Tuning | |||||
| 10 | Drive | 2 | 51161394107 | $56.07 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
