Interior rear-view mirror for BMW 3 Series E30 325i (1989)

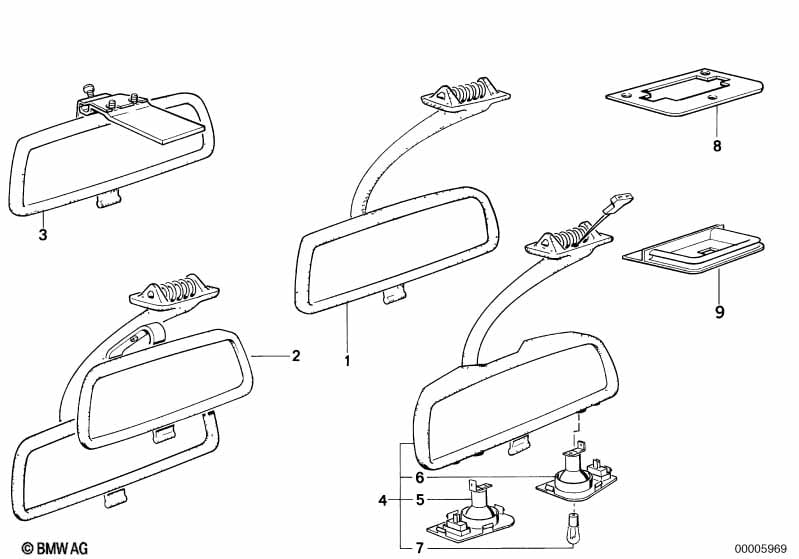

This Interior rear-view mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interior rear-view mirror | 1 | 51161817121 | $115.66 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO READING LIGHT | ||||||||||
| 04 | Interior rear-view mirror | 1 | 51161906525 | $203.14 | ENDED | Shop at ECS Tuning | ||||
| 05 | Reading light, left | 1 | 63311380153 | $42.53 | ENDED | Shop at ECS Tuning | ||||
| 06 | Reading light, right | 1 | 63311380154 | $42.53 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 10W | 1 | 63311375003 | $16.90 | Shop at ECS Tuning | ||||
| 08 | Base plate | 1 | 51161801085 | $5.43 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cover | 1 | 51441900133 | $3.61 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
