Outside mirror for BMW 7 Series E32 740i (1994)

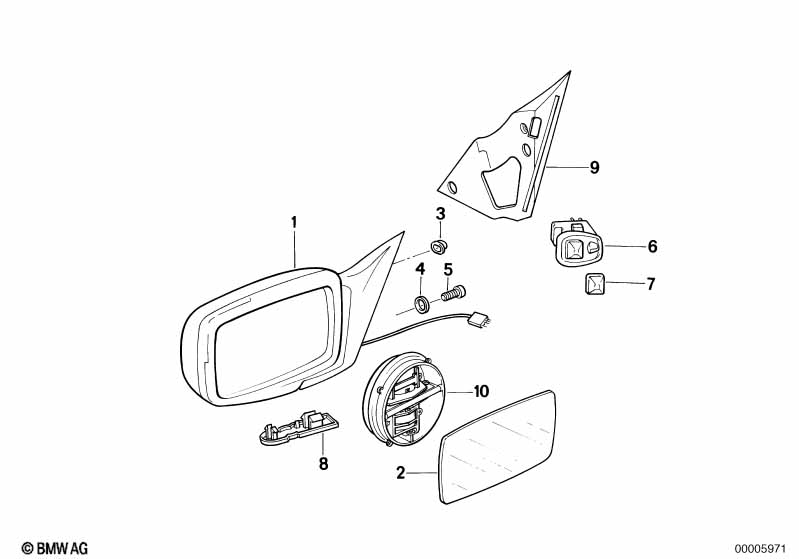

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.exterior mirror right | 1 | 51161964140 | ENDED | Shop at ECS Tuning | |||||
| 01 | Electr.exterior mirror left | 1 | 51161964143 | ENDED | Shop at ECS Tuning | |||||
| 01 | Electr.wide-angle mirror left | 1 | 51161964145 | ENDED | Shop at ECS Tuning | |||||
| 01 | Electr.exterior heatable mirror left | 1 | 51161964147 | $242.82 | Shop at ECS Tuning | |||||
| 01 | Electr.exterior heatable mirror right | 1 | 51161964152 | $242.82 | ENDED | Shop at ECS Tuning | ||||
| 01 | Electr.wide-angle heatable mirror left | 1 | 51161964153 | ENDED | Shop at ECS Tuning | |||||
| 01 | Electr.exterior heatable mirror left | CODE - UNI | 1 | 51169066826 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Electr.exterior heatable mirror left | CODE - MET. | 1 | 51169066827 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Electr.exterior heatable mirror right | CODE - UNI | 1 | 51169066828 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Electr.exterior heatable mirror right | CODE - MET. | 1 | 51169066829 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Electr.wide-angle heatable mirror left | CODE - UNI | 1 | 51169066830 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Electr.wide-angle heatable mirror left | CODE - MET. | 1 | 51169066831 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| For vehicles with Mirror memory |
=Yes |
|||||||||
| 01 | Electr.exterior heatable mirror left | 1 | 51161964155 | $267.12 | Shop at ECS Tuning | |||||
| 01 | Electr.exterior mirror left | 1 | 51161964631 | ENDED | Shop at ECS Tuning | |||||
| 01 | Electr.exterior heatable mirror right | 1 | 51161964634 | ENDED | Shop at ECS Tuning | |||||
| 01 | Electr.wide-angle heatable mirror left | 1 | 51161964635 | ENDED | Shop at ECS Tuning | |||||
| 01 | Electr.exterior heatable mirror left | CODE - UNI | 1 | 51169066838 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Electr.exterior heatable mirror left | CODE - MET. | 1 | 51169066839 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Electr.exterior heatable mirror right | CODE - UNI | 1 | 51169066840 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Electr.exterior heatable mirror right | CODE - MET. | 1 | 51169066841 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Electr.wide-angle heatable mirror left | CODE - UNI | 1 | 51169066842 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Electr.wide-angle heatable mirror left | CODE - MET. | 1 | 51169066843 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Mirror glass plugged-in | 1 | 51161938037 | $32.86 | Shop at ECS Tuning | |||||
| 02 | Mirror glas heated,plugged-in | 1 | 51161938063 | $49.43 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 02 | Mirror glas heated,plugged-in | 1 | 51161938064 | $71.67 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 02 | Mirror glas heated,plugged-in | 1 | 51161938063 | $49.43 | Shop at ECS Tuning | |||||
| 02 | Wide-angle mirror glass heata.plugged-in | FAHRERSEITE | 1 | 51161938065 | $78.37 | Shop at ECS Tuning | ||||
| 02 | Left plugged-in wide-angle mirror glass | 1 | 51161938091 | $52.19 | Shop at ECS Tuning | |||||
| 03 | Insert | 10X7 | 1 | 51131870459 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Washer | 1 | 51161938070 | $1.58 | Shop at ECS Tuning | |||||
| 05 | Fillister-head screw | M8X20 | 1 | 07119919759 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Mirror switch with change-over switch | 1 | 61311378847 | $67.34 | Shop at ECS Tuning | |||||
| For vehicles with Mirror memory |
=Yes |
|||||||||
| 06 | Mirror switch with change-over switch | 1 | 61311380150 | $67.34 | ENDED | Shop at ECS Tuning | ||||
| 07 | Knob, switch exterior mirror | 1 | 61311372463 | $3.20 | Shop at ECS Tuning | |||||
| 08 | Cover | LINKS | 1 | 51161948069 | $2.90 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | RECHTS | 1 | 51161948070 | $2.90 | Shop at ECS Tuning | ||||
| 09 | Gasket left | 1 | 09/1989 | 51328127191 | $1.37 | ENDED | Shop at ECS Tuning | |||
| 09 | Gasket right | 1 | 09/1989 | 51328127194 | $2.54 | ENDED | Shop at ECS Tuning | |||
| 10 | Drive | 1 | 51161394107 | $56.07 | Shop at ECS Tuning | |||||
| 10 | Memory drive (repair kit) | 1 | 67138364184 | $188.25 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
