Interior mirror for BMW 8 Series E31 850Ci (1994)

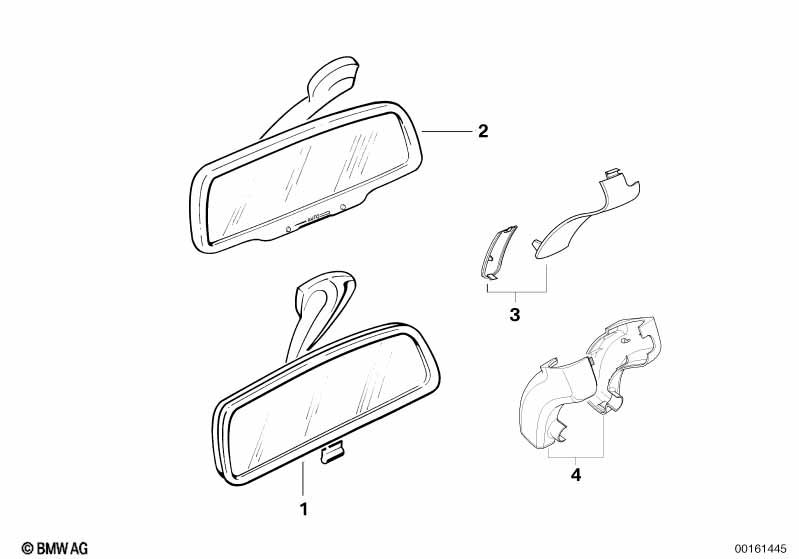

This Interior mirror technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | EC = Electrochromatic Radio = Radio-wave remote control LED = Light-emitting diode for alarm system GTO = Integrated remote control/garage door opener FLA = High-beam assistant Compass = Digital compass display ETC = Electronic Toll Collection TLC = Out-of-lane warning |
|||||||||
| 01 | Inside rearview mirror IR | INFRARED | 1 | 01/1994 | 51168193884 | $522.95 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Inside rearview mirror, remote | 315 MHZ | 1 | 09/1992 | 04/1996 | 51168193882 | $328.10 | ENDED | Shop at ECS Tuning | |
| For vehicles with Infrared remote control |
=Yes |
|||||||||
| 02 | Rearview mirror EC / LED / IR | INFRARED | 1 | 01/1994 | 51169134471 | $445.95 | Shop at ECS Tuning | |||
| For vehicles with National version Australia and Radio remote control |
L810A=Yes =Yes |
|||||||||
| 02 | Interior mirror EC / Radio | 315 MHZ | 1 | 09/1992 | 04/1996 | 51168193883 | $569.95 | ENDED | Shop at ECS Tuning | |
| 03 | Set of end caps | 1 | 51168194789 | $1.67 | Shop at ECS Tuning | |||||
| 04 | Set of covers mirror baseplate | BLACK | 1 | 51167062264 | $3.94 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
