Outside mirror for BMW 8 Series E31 850Ci (1994)

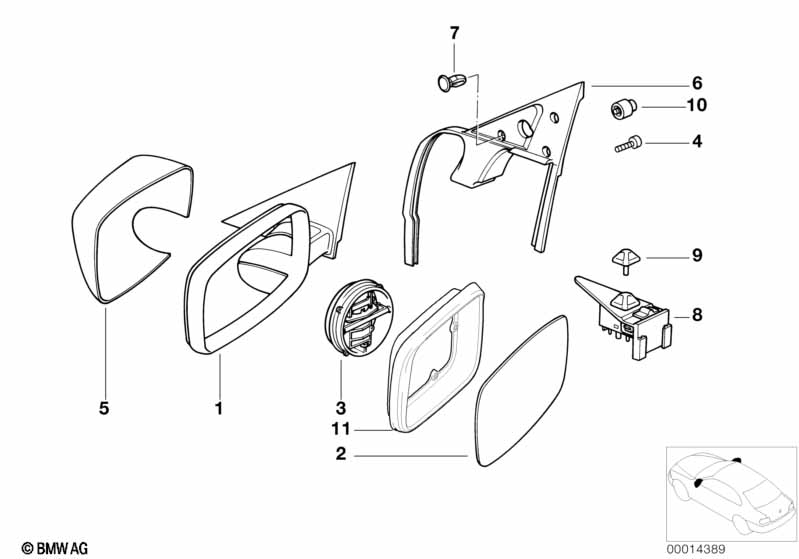

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.exterior heatable mirror left | 1 | 51168124653 | $315.68 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH MIRROR GLAS | ||||||||||
| 01 | Electr.exterior heatable mirror right | 1 | 51168124664 | $315.68 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH MIRROR GLAS | ||||||||||
| For vehicles with Memory |
=Yes |
|||||||||
| 01 | Electr.exterior heatable mirror left | 1 | 51168124655 | $346.45 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH MIRROR GLAS | ||||||||||
| 01 | Electr.exterior heatable mirror right | 1 | 51168124666 | $346.45 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH MIRROR GLAS | ||||||||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 02 | Wide-angle mirror glass heata.plugged-in | 1 | 51168124610 | $84.50 | ENDED | Shop at ECS Tuning | ||||
| 02 | Mirror glas heated | 1 | 51168124680 | Shop at ECS Tuning | ||||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 02 | Wide-angle mirror glass heata.plugged-in | 1 | 51168124610 | $84.50 | ENDED | Shop at ECS Tuning | ||||
| 02 | Mirror glas heated | 1 | 51168124679 | $71.67 | Shop at ECS Tuning | |||||
| 03 | Drive | 1 | 51161394107 | $56.07 | Shop at ECS Tuning | |||||
| 03 | Memory drive (repair kit) | 1 | 67138364184 | $188.25 | Shop at ECS Tuning | |||||
| 04 | Screw | M6X25 | X | 11141460752 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Fillister-head screw | X | 51341961320 | $0.94 | Shop at ECS Tuning | |||||
| 05 | Covering left | 1 | 51168124657 | $70.63 | Shop at ECS Tuning | |||||
| 05 | Covering right | 1 | 51168124658 | $70.63 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering left | CODE - UNI | 1 | 51169065040 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 05 | Covering left | CODE - MET. | 1 | 51169065044 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 05 | Covering right | CODE - UNI | 1 | 51169065046 | $179.68 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 05 | Covering right | CODE - MET. | 1 | 51169065048 | $131.69 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 06 | Gasket left | 1 | 51321970785 | $75.48 | Shop at ECS Tuning | |||||
| 06 | Gasket right | 1 | 51321970786 | $75.48 | Shop at ECS Tuning | |||||
| 07 | Plug | D=4,00 MM | 2 | 51718195651 | $0.26 | Shop at ECS Tuning | ||||
| 08 | Mirror switch with change-over switch | 1 | 61311383467 | $65.36 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 08 | Mirror switch with change-over switch | 1 | 61311392457 | $65.36 | ENDED | Shop at ECS Tuning | ||||
| 09 | Button | 1 | 61311383335 | $3.62 | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | X | 51168124674 | $11.66 | Shop at ECS Tuning | |||||
| 11 | Frame left | 1 | 51168108689 | $41.66 | Shop at ECS Tuning | |||||
| 11 | Frame right | 1 | 51168108690 | $41.66 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Outside mirror?
- This technical diagram illustrates the Outside mirror within the Vehicle trim group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Electr.exterior heatable mirror left (Part #51168124653).
- Which models use the hardware listed in this Outside mirror?
- The hardware and components featured in the Outside mirror are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Electr.exterior heatable mirror left (51168124653) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Outside mirror assembly?
- Each item in the Outside mirror corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Electr.exterior heatable mirror left by locating its position on the schematic, which then links to the official BMW part number 51168124653 for the Vehicle trim section.
