Bumper, front for BMW 5 Series E12 520 (1976)

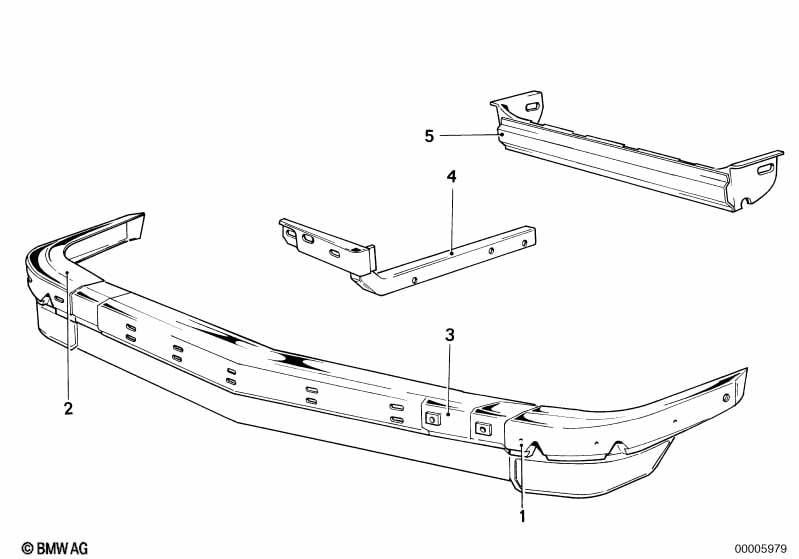

This Bumper, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper, front left | 1 | 51111819863 | $166.22 | Shop at ECS Tuning | |||||
| 01 | Bumper, front | 1 | 51119070204 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Bumper, front left | 1 | 08/1979 | 51111819863 | $166.22 | Shop at ECS Tuning | ||||
| 01 | Bumper, front left | 1 | 08/1979 | 51111847773 | ENDED | Shop at ECS Tuning | ||||
| 01 | Bumper, front | 1 | 08/1979 | 51119070204 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bumper front right | 1 | 51111819864 | $166.22 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 02 | Bumper front right | 1 | 08/1979 | 51111847774 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bumper front center | 1 | 51111848103 | $235.95 | ENDED, SI 121089111 | Shop at ECS Tuning | ||||
| 03 | Bumper, front | 1 | 51119070204 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 03 | Bumper front center | 1 | 08/1979 | 51111847772 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket left | 1 | 51111864325 | $21.77 | Shop at ECS Tuning | |||||
| 04 | Bracket right | 1 | 51111864326 | $21.77 | Shop at ECS Tuning | |||||
| 05 | Support super-tone horns | 1 | 51111823312 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Bumper, front?
- This technical diagram illustrates the Bumper, front within the Vehicle trim group for the 5 Series E12 520 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Bumper, front left (Part #51111819863).
- Which models use the hardware listed in this Bumper, front?
- The hardware and components featured in the Bumper, front are specific to the 5 Series E12 520 produced during 1976. These technical specifications ensure that parts like the Bumper, front left (51111819863) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bumper, front assembly?
- Each item in the Bumper, front corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Bumper, front left by locating its position on the schematic, which then links to the official BMW part number 51111819863 for the Vehicle trim section.
