Front bumper mounting parts for BMW 6 Series E24 633CSi

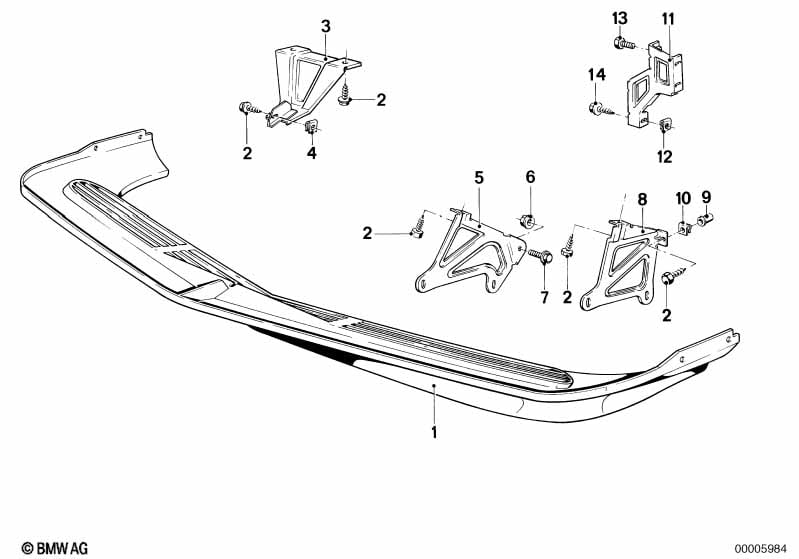

This Front bumper mounting parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 06/1987 | 51111861049 | $480.15 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex head screw | ST6,3X19-C-Z1 | X | 06/1987 | 07119916970 | $0.30 | Shop at ECS Tuning | |||
| 03 | Support | 1 | 06/1987 | 51111869655 | $9.30 | ENDED | Shop at ECS Tuning | |||
| 04 | Body nut | ST6,3-3 | X | 06/1987 | 07129925744 | $0.22 | ENDED | Shop at ECS Tuning | ||
| 05 | Bracket left | 1 | 06/1987 | 51111902737 | $29.48 | ENDED | Shop at ECS Tuning | |||
| 05 | Bracket right | 1 | 06/1987 | 51111902738 | $29.10 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex nut with plate | M6 | 4 | 06/1987 | 07147134319 | $1.05 | Shop at ECS Tuning | |||
| 06 | Self-locking hex nut | M6 | 4 | 06/1987 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 06/1987 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 08 | Bracket left | 1 | 06/1987 | 51111861255 | $8.84 | ENDED | Shop at ECS Tuning | |||
| 08 | Bracket right | 1 | 06/1987 | 51111861256 | $10.63 | ENDED | Shop at ECS Tuning | |||
| 09 | Protective plug | 2 | 06/1987 | 17114670114 | $0.26 | Shop at ECS Tuning | ||||
| 10 | Body nut | ST6,3-1-ZNS3 | 2 | 06/1987 | 07129904231 | Shop at ECS Tuning | ||||
| 11 | Bracket left | 1 | 06/1987 | 51111861375 | $14.17 | Shop at ECS Tuning | ||||
| 11 | Bracket right | 1 | 06/1987 | 51111861376 | ENDED | Shop at ECS Tuning | ||||
| 12 | Body nut | ST4,8-13-ZNS3 | 2 | 06/1987 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 13 | Hex bolt with washer | M6X12-U2-8.8 | 2 | 06/1987 | 07119904459 | $0.65 | Shop at ECS Tuning | |||
| 14 | Hex head screw | ST4,8X16-C-Z1 | 2 | 06/1987 | 07119916945 | $0.18 | Shop at ECS Tuning | |||
| 14 | Hex head screw | ST4,8X16-C-Z1 | 2 | 06/1987 | 07119906265 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
