Bumper, front for BMW 6 Series E24 633CSi (1981)

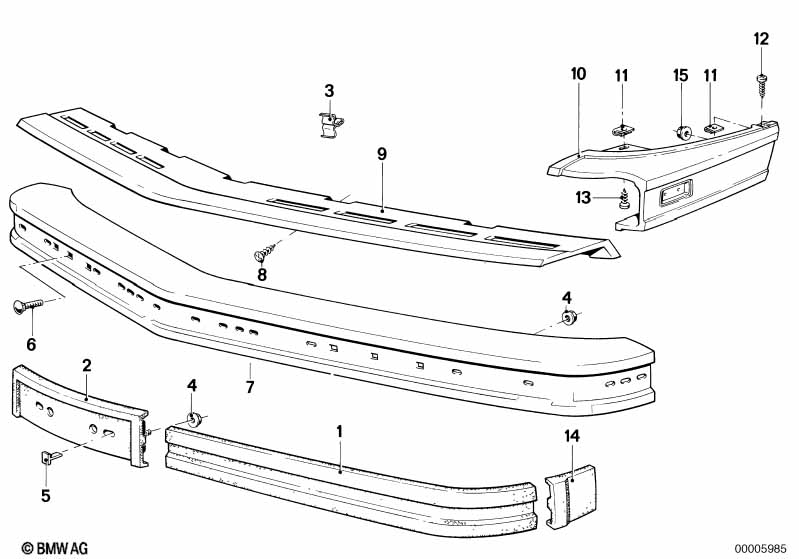

This Bumper, front technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protective Mouldings | 2 | 09/1979 | 06/1987 | 51111870645 | $100.47 | ENDED | Shop at ECS Tuning | ||
| 01 | Protective Mouldings | 2 | 09/1979 | 06/1987 | 51111870645 | $100.47 | ENDED | Shop at ECS Tuning | ||
| 02 | Protective Mouldings | 1 | 09/1979 | 06/1987 | 51111861009 | $52.55 | Shop at ECS Tuning | |||
| 02 | Protective Mouldings | 1 | 09/1979 | 06/1987 | 51111861009 | $52.55 | Shop at ECS Tuning | |||
| 03 | Clip | X | 06/1987 | 51111838076 | $1.98 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M6 | X | 06/1987 | 07147134319 | $1.05 | Shop at ECS Tuning | |||
| 04 | Self-locking hex nut | M6 | X | 06/1987 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 05 | Clamp | 4 | 06/1987 | 51111851079 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 06 | Saucer-head screw | M8X20 | 6 | 06/1987 | 07119910437 | $0.52 | Shop at ECS Tuning | |||
| 07 | Bumper | 1 | 09/1979 | 06/1987 | 51111953670 | $393.23 | Shop at ECS Tuning | |||
| 07 | Bumper | 1 | 09/1979 | 06/1987 | 51111953670 | $393.23 | Shop at ECS Tuning | |||
| 08 | Hex head screw | ST6,3X19-C-Z2 | 7 | 06/1987 | 07119916967 | $0.29 | Shop at ECS Tuning | |||
| 08 | Hex head screw | ST6,3X19-C-Z1 | 7 | 06/1987 | 07119916970 | $0.30 | Shop at ECS Tuning | |||
| 09 | Cover | 1 | 06/1987 | 51111861062 | $340.11 | ENDED | Shop at ECS Tuning | |||
| 10 | Covering left | 1 | 06/1987 | 51111869769 | $321.51 | ENDED | Shop at ECS Tuning | |||
| 10 | Covering right | 1 | 06/1987 | 51111869770 | $321.51 | Shop at ECS Tuning | ||||
| 11 | Body nut | ST6,3-1-ZNS3 | 2 | 06/1987 | 07129904231 | Shop at ECS Tuning | ||||
| 12 | Hex head screw | ST6,3X25-C-Z2 | 2 | 06/1987 | 07119916973 | $0.58 | ENDED | Shop at ECS Tuning | ||
| 13 | Hex head screw | ST6,3X19-C-Z2 | 2 | 06/1987 | 07119916967 | $0.29 | Shop at ECS Tuning | |||
| 15 | Self-locking hex nut | M6 | 4 | 06/1987 | 07147153450 | $0.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
