Shock absorber front for BMW 6 Series E24 630CSi (1977)

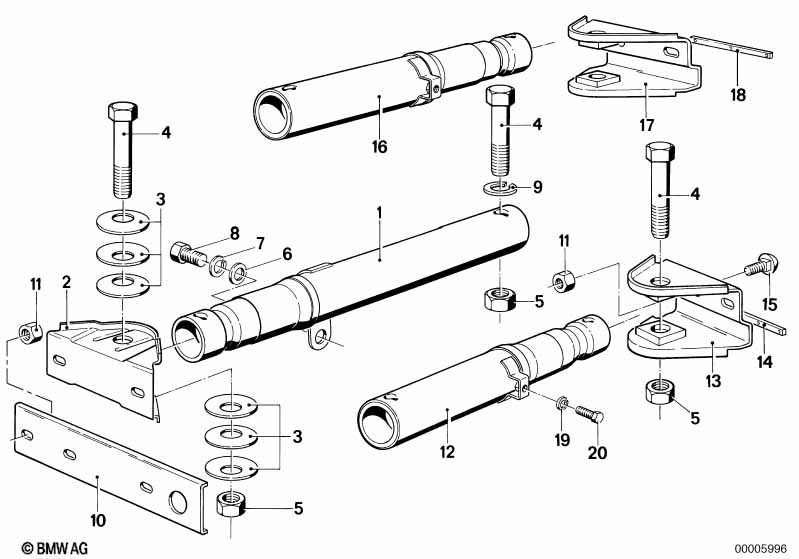

This Shock absorber front technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shock absorber front left | 1 | 06/1987 | 51111861035 | $55.52 | Shop at ECS Tuning | ||||
| 01 | Shock absorber front right | 1 | 06/1987 | 51111861036 | $55.52 | Shop at ECS Tuning | ||||
| 02 | Support left | 1 | 06/1987 | 51111861037 | $19.61 | Shop at ECS Tuning | ||||
| 02 | Support right | 1 | 06/1987 | 51111861038 | $19.61 | Shop at ECS Tuning | ||||
| 03 | Diaphragm spring | X | 06/1987 | 51111831638 | $0.95 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt | M14X75 | 6 | 06/1987 | 07119912870 | $5.38 | ENDED | Shop at ECS Tuning | ||
| 05 | Self-locking hex nut | M14 | 6 | 06/1987 | 07129922739 | $2.13 | Shop at ECS Tuning | |||
| 06 | Washer | 8,4X16X1,6-ZNNV | 2 | 06/1987 | 07119907030 | Shop at ECS Tuning | ||||
| 07 | Spring washer | B8 | 2 | 06/1987 | 07119933096 | $0.18 | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M8X20-Z4-1 | 2 | 06/1987 | 07119915081 | $0.67 | ENDED | Shop at ECS Tuning | ||
| 09 | Spring washer | B14 | 3 | 06/1987 | 07119933148 | $0.20 | Shop at ECS Tuning | |||
| 10 | Reinforcement bumper strut front | 2 | 06/1987 | 51111833192 | $8.52 | Shop at ECS Tuning | ||||
| 11 | Hex nut with plate | M8 | X | 06/1987 | 51117070183 | $0.77 | Shop at ECS Tuning | |||
| 12 | Shock absorber rear lateral | 2 | 06/1987 | 51121837943 | $102.11 | ENDED | Shop at ECS Tuning | |||
| 12 | Shock absorber rear lateral | 2 | 06/1987 | 51121917732 | $98.08 | Shop at ECS Tuning | ||||
| 13 | Support shock absorber rear | 2 | 06/1987 | 51121869780 | $54.14 | Shop at ECS Tuning | ||||
| 15 | Saucer-head screw | M8X20 | 4 | 06/1987 | 07119910437 | $0.52 | Shop at ECS Tuning | |||
| 16 | Shock absorber rear center | 1 | 06/1987 | 51121861022 | $98.08 | Shop at ECS Tuning | ||||
| 17 | Holder | 1 | 06/1987 | 51121861014 | $28.31 | ENDED | Shop at ECS Tuning | |||
| 19 | Spring washer | B6 | 2 | 06/1987 | 07119933082 | $0.09 | Shop at ECS Tuning | |||
| 20 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 06/1987 | 07119905524 | $0.27 | Shop at ECS Tuning |
