Licence plate base for BMW 5 Series E12 528i (1979)

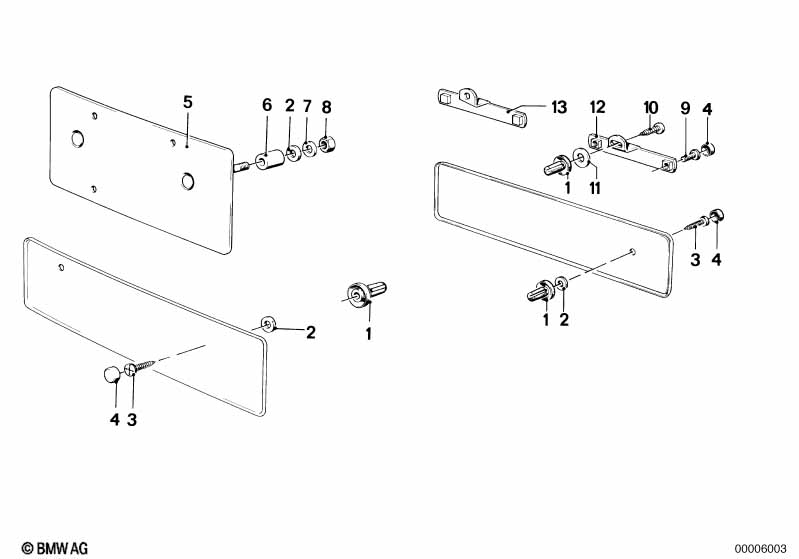

This Licence plate base technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plug-in nut | 4 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 02 | Rubber washer | 4 | 51185480151 | $0.57 | Shop at ECS Tuning | |||||
| 03 | Fillister head self-tapping screw | ST4,8X16MM | 4 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Covering cap | WEISS | 4 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 04 | Covering cap | SCHWARZ | 1 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 05 | Base | 1 | 51181832855 | $8.13 | ENDED | Shop at ECS Tuning | ||||
| 06 | Spacer tube | 1 | 51181832848 | $0.55 | Shop at ECS Tuning | |||||
| 07 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Screw | M 5X6 | 4 | 51181817449 | ENDED | Shop at ECS Tuning | ||||
| 10 | Fillister head self-tapping screw | ST4,8X13 | 2 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Bracket left | 1 | 09/1976 | 51181848195 | $5.34 | ENDED | Shop at ECS Tuning | |||
| 13 | Bracket right | 1 | 09/1976 | 51181848196 | $5.70 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
