Front bumper mounting parts for BMW 3 Series E21 320 (1979)

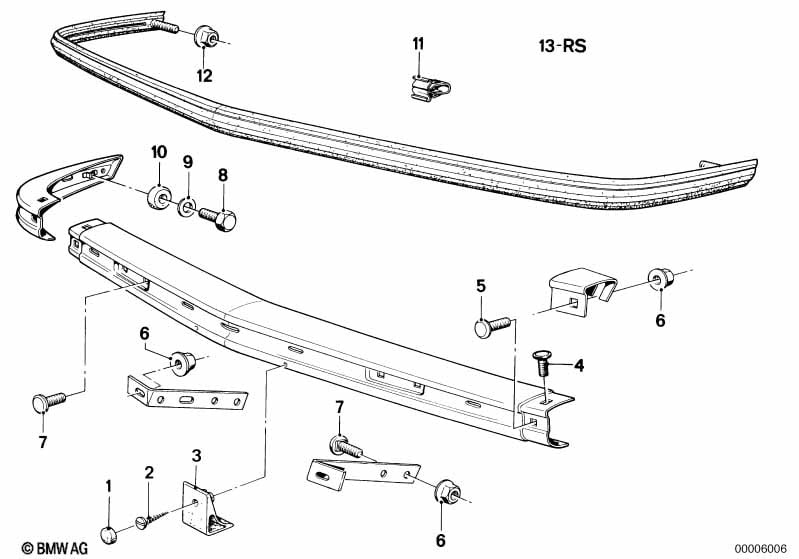

This Front bumper mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering cap | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 01 | Covering cap | SCHWARZ | X | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 01 | Covering cap | DUNKELBLAU | X | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST4,8X20 | 2 | 51181835719 | $0.33 | Shop at ECS Tuning | ||||
| 03 | Plug-in nut | 2 | 51181835720 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 05 | Square headed bolt | M8X16 | 6 | 51121804528 | $0.57 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M8 | X | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Saucer-head screw | M8X20 | 6 | 07119910437 | $0.52 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X30 | 2 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Shim | 2 | 51111817907 | $1.50 | Shop at ECS Tuning | |||||
| 11 | Clip | X | 51111826894 | $0.55 | Shop at ECS Tuning | |||||
| 12 | Hex nut with plate | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 13 | Mounting parts set | 1 | 51119056453 | $18.73 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
