Front bumper trim, M technic for BMW 5 Series E28 535i (1987)

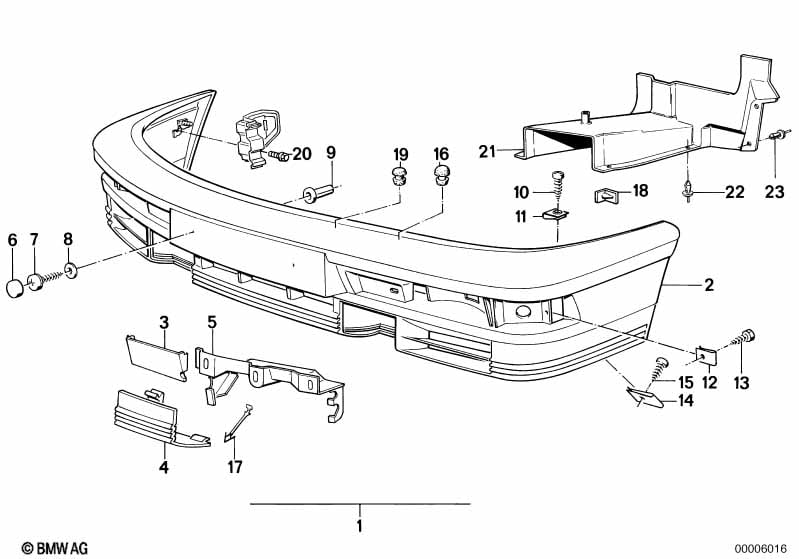

This Front bumper trim, M technic technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, M front spoiler, primed | M TECHNIC | 1 | 51719057959 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH FOGLAMPS |
||||||||||
| 02 | Spoiler front | M TECHNIC | 1 | 51111934650 | $1619.10 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | M TECHNIC | 1 | 51111934655 | $42.56 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering right | M TECHNIC | 1 | 51111934656 | $42.56 | Shop at ECS Tuning | ||||
| 04 | Covering left | M TECHNIC | 1 | 51111934657 | $57.73 | Shop at ECS Tuning | ||||
| 04 | Covering right | M TECHNIC | 1 | 51111934658 | $57.73 | Shop at ECS Tuning | ||||
| 05 | Bracket left | M TECHNIC | 1 | 51111927483 | $23.43 | Shop at ECS Tuning | ||||
| 05 | Bracket right | M TECHNIC | 1 | 51111927484 | $23.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 06 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,8X20 | 2 | 51181835719 | $0.33 | Shop at ECS Tuning | ||||
| 08 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 09 | Plug-in nut | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 10 | Hex head screw | ST4,8X16-ZNS3 | X | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Body nut | ST 4,8-8-ZNS | X | 07129904227 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Plug-in nut | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST4,8X16 Z2 | 2 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 14 | Body nut | ST 4,8-7-ZNS3 | X | 07129904226 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Fillister head self-tapping screw | ST4,8X16-Z1 | X | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Plug | M TECHNIC | 4 | 51711940364 | $2.06 | Shop at ECS Tuning | ||||
| 17 | Holding strap | 2 | 51111940365 | $0.90 | Shop at ECS Tuning | |||||
| 18 | Support | M TECHNIC | 4 | 41141925979 | ENDED | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 21 | Air channel left | 1 | 51111927493 | $79.97 | ENDED | Shop at ECS Tuning | ||||
| 21 | Air channel right | 1 | 51111927494 | $79.97 | ENDED | Shop at ECS Tuning | ||||
| 22 | Expanding rivet | X | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 23 | Expanding rivet | X | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
