Bumper, front for BMW 5 Series E28 M535i (1987)

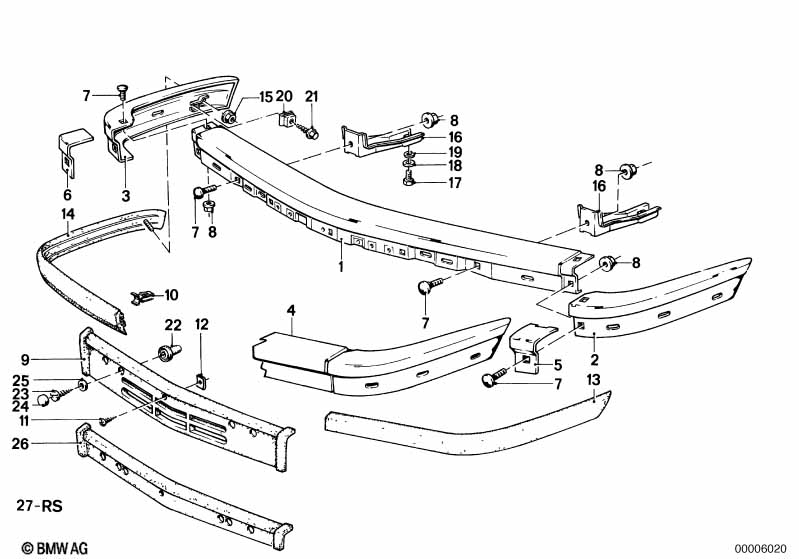

This Bumper, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper front center | 1 | 51111868091 | $488.33 | ENDED | Shop at ECS Tuning | ||||
| 01 | Bumper prime coated front center | 1 | 51111961861 | $221.67 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bumper, front left | 1 | 51111868093 | $179.63 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bumper prime coated front left | 1 | 51111961867 | $133.80 | Shop at ECS Tuning | |||||
| 03 | Bumper front right | 1 | 51111868094 | $174.85 | Shop at ECS Tuning | |||||
| 03 | Bumper prime coated front right | 1 | 51111961868 | $133.80 | Shop at ECS Tuning | |||||
| 04 | Bumper, front | 1 | 51111939528 | ENDED | Shop at ECS Tuning | |||||
| 05 | Covering left | 1 | 51111868097 | $37.00 | Shop at ECS Tuning | |||||
| 05 | Cover, primed, left | 1 | 51111961873 | $21.61 | Shop at ECS Tuning | |||||
| 06 | Covering right | 1 | 51111868098 | $37.00 | Shop at ECS Tuning | |||||
| 06 | Cover, primed, right | 1 | 51111961874 | $21.61 | Shop at ECS Tuning | |||||
| 07 | Screw | 6 | 51121843029 | $0.65 | Shop at ECS Tuning | |||||
| 08 | Hex nut with plate | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 09 | Protective Mouldings | 1 | 51111882988 | $21.38 | Shop at ECS Tuning | |||||
| 10 | Clamp | X | 51111867927 | $0.42 | Shop at ECS Tuning | |||||
| 11 | Fillister head self-tapping screw | ST4,8X16-Z1 | 1 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Body nut | ST 4,8-7-ZNS3 | 1 | 07129904226 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Rubber strip left | 1 | 51111868101 | $32.07 | Shop at ECS Tuning | |||||
| 14 | Rubber strip right | 1 | 51111868102 | $32.07 | Shop at ECS Tuning | |||||
| 15 | Hex nut with plate | M6 | 4 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 16 | Holder | 2 | 51111868105 | $16.37 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M10X25 8.8 | 2 | 07119908569 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M10X25-8.8 ZN | 2 | 07119913834 | $0.71 | Shop at ECS Tuning | ||||
| 18 | Washer | 10-200 ZNS3 | 2 | 07119904209 | $1.16 | Shop at ECS Tuning | ||||
| 19 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 20 | Body nut | ST6.3 ZN | 2 | 51111900386 | $2.90 | ENDED | Shop at ECS Tuning | |||
| 21 | Hex head screw | ST6,3X19-C-Z2 | 2 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 22 | Plug-in nut | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 23 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 24 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 24 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 25 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| For vehicles with National version italy |
L814A=Yes |
|||||||||
| 26 | Base | 1 | 51111868099 | $12.52 | ENDED | Shop at ECS Tuning | ||||

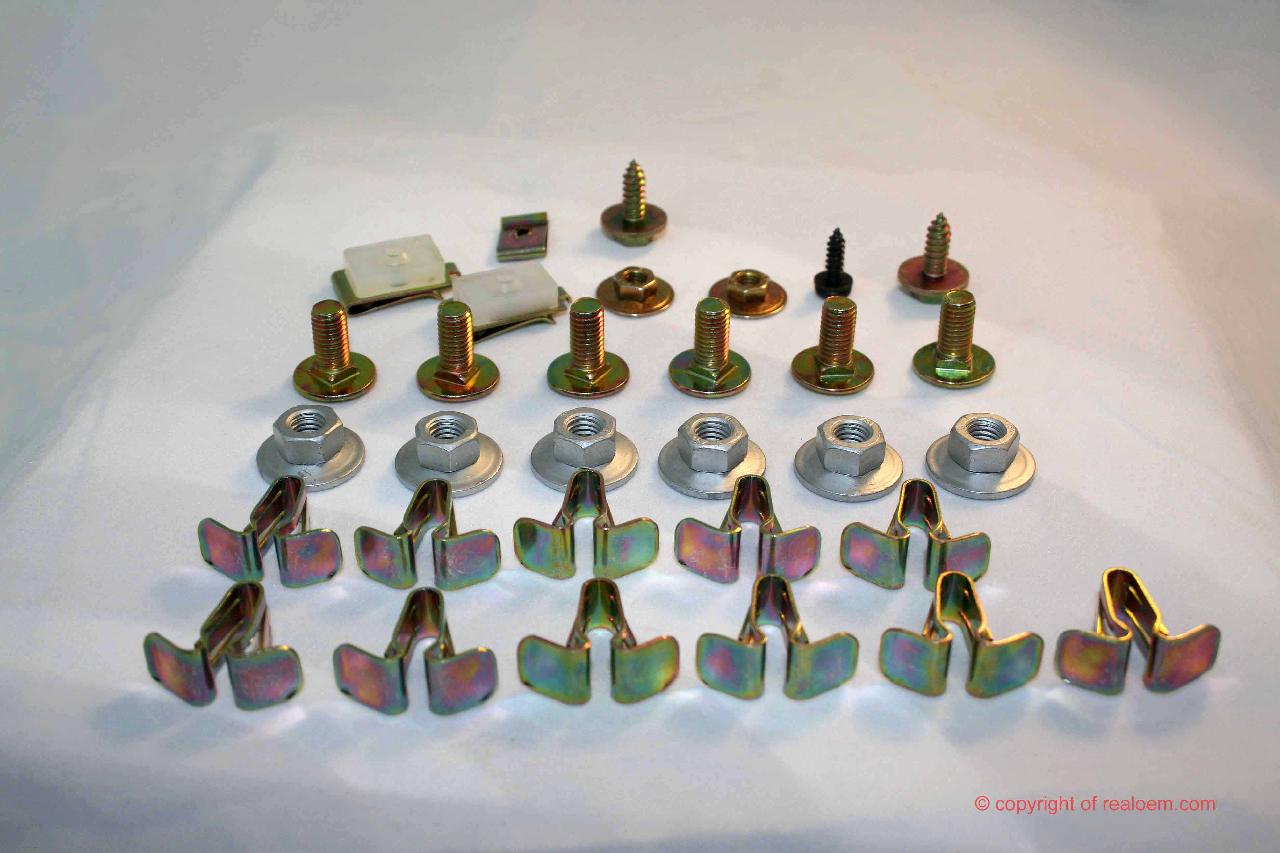

| 27 | Mounting parts set | 1 | 51119056461 | $15.12 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M535i Bumper, front?
- This technical diagram illustrates the Bumper, front within the Vehicle trim group for the 5 Series E28 M535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Bumper front center (Part #51111868091).
- Which models use the hardware listed in this Bumper, front?
- The hardware and components featured in the Bumper, front are specific to the 5 Series E28 M535i produced during 1987. These technical specifications ensure that parts like the Bumper front center (51111868091) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bumper, front assembly?
- Each item in the Bumper, front corresponds to the numbered list below the illustration. For the 5 Series E28 M535i, you can identify the Bumper front center by locating its position on the schematic, which then links to the official BMW part number 51111868091 for the Vehicle trim section.
