Rear bumper mounting parts for BMW 7 Series E32 740i (1994)

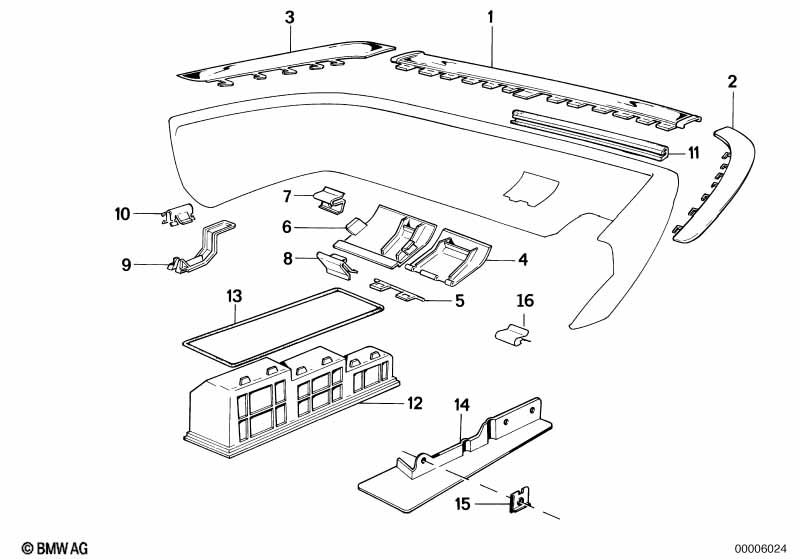

This Rear bumper mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Covering center | 1 | 51121908074 | $119.64 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Shadow-Line |
L807A=Yes =Yes |
|||||||||
| 01 | Covering center | 1 | 51128111579 | $119.64 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Covering left | 1 | 51121908075 | $45.25 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Shadow-Line |
L807A=Yes =Yes |
|||||||||
| 02 | Covering left | 1 | 51128111575 | $51.21 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | Covering right | 1 | 51121908076 | $45.25 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Shadow-Line |
L807A=Yes =Yes |
|||||||||
| 03 | Covering right | 1 | 51128111576 | $51.21 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 04 | Cover | 1 | 51121938421 | $19.00 | Shop at ECS Tuning | |||||
| 05 | Holder | 1 | 51121938423 | $2.82 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Trailer coupling |
L807A=Yes =Yes |
|||||||||
| 06 | Cover | 1 | 51121938152 | $21.11 | Shop at ECS Tuning | |||||
| 07 | Clamp | 3 | 51121938349 | $8.32 | Shop at ECS Tuning | |||||
| 08 | Clamp | 2 | 51121950400 | $2.16 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 09 | Holder | 4 | 51121949229 | $4.98 | ENDED | Shop at ECS Tuning | ||||
| 10 | Clamp | 4 | 51121951630 | $2.16 | Shop at ECS Tuning | |||||
| 11 | Gasket | 2900MM | 1 | 51121964183 | $34.19 | ENDED | Shop at ECS Tuning | |||
| 12 | Breather covering rear left | 1 | 64221928149 | $51.08 | Shop at ECS Tuning | |||||
| 12 | Breather covering rear right | 1 | 64221928150 | $49.33 | ENDED | Shop at ECS Tuning | ||||
| 13 | Gasket left | 1 | 64221928157 | $8.64 | Shop at ECS Tuning | |||||
| 13 | Gasket right | 1 | 64221928158 | $1.84 | Shop at ECS Tuning | |||||
| 14 | Covering left | 1 | 51711963059 | $8.39 | ENDED | Shop at ECS Tuning | ||||
| 14 | Covering right | 1 | 51711963060 | $8.39 | Shop at ECS Tuning | |||||
| 15 | Body nut | D=18MM, ZNS-3 | 6 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 16 | Clamp | 2 | 51121963042 | $0.55 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
