Bumper rear for BMW 3 Series E30 M3 (1990)

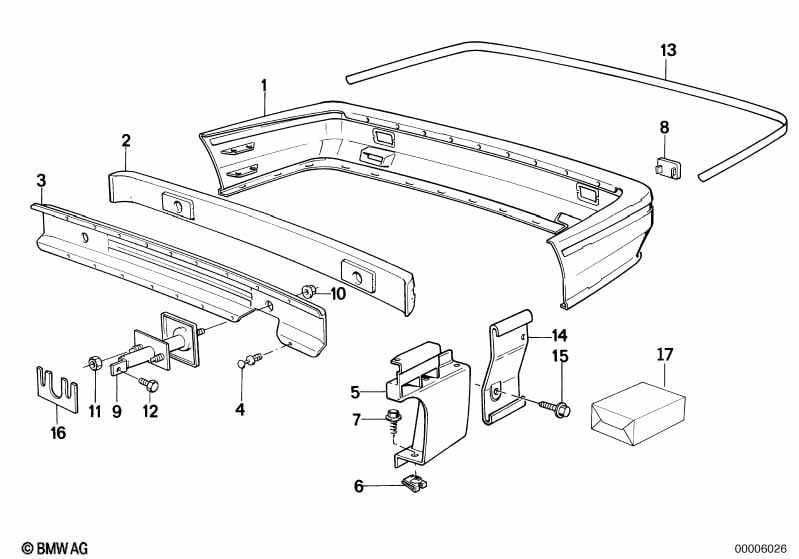

This Bumper rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel | 1 | 51121952868 | $1336.42 | Shop at ECS Tuning | |||||
| 02 | Left base | M SPORT E2 / E3 | 1 | 51122238093 | $28.02 | Shop at ECS Tuning | ||||
| 02 | Right base | M SPORT E2 / E3 | 1 | 51122238094 | $28.02 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO 'SONDERSERIE 89' | ||||||||||
| 02 | Left base | M SPORT E2 / E3 | 1 | 51122238093 | $28.02 | Shop at ECS Tuning | ||||
| 02 | Right base | M SPORT E2 / E3 | 1 | 51122238094 | $28.02 | Shop at ECS Tuning | ||||
| 03 | Carrier | 1 | 51121940044 | $301.98 | Shop at ECS Tuning | |||||
| 03 | Carrier | M SPORT E2 / E3 | 1 | 51122230692 | $413.30 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO 'SONDERSERIE 89' | ||||||||||
| 03 | Carrier | M SPORT E2 / E3 | 1 | 51122230692 | $413.30 | Shop at ECS Tuning | ||||
| 04 | Expanding rivet | D = 6MM | X | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Guide left | 1 | 51121967365 | $19.65 | ENDED | Shop at ECS Tuning | ||||
| 05 | Guide right | 1 | 51121967366 | $19.65 | ENDED | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4,8-9-ZNS3 | 8 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST4,8X16-ZNS3 | 8 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Covering cap | 2 | 51111961926 | $14.46 | Shop at ECS Tuning | |||||
| 09 | Bracket left | 1 | 51121935873 | $75.63 | Shop at ECS Tuning | |||||
| 09 | Bracket right | 1 | 51121935874 | $75.63 | Shop at ECS Tuning | |||||
| 10 | Hex nut | 2 | 51121938110 | $1.07 | Shop at ECS Tuning | |||||
| 11 | Hex nut with plate | M8 | 4 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M6X16-Z3-2 | 2 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M8X20-Z3-2 | 2 | 07119915159 | ENDED | Shop at ECS Tuning | ||||
| 13 | Ornamental strips | SCHWARZ | 1 | 51111966304 | $30.59 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO M SPORT E3 | ||||||||||
| 13 | Ornamental strips | ROT | 1 | 51142233023 | $61.41 | Shop at ECS Tuning | ||||
| 14 | Holder | 2 | 51121967367 | $13.47 | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M6X16-U2-ZNS3 | 4 | 07119902913 | Shop at ECS Tuning | |||||
| 16 | Spacer plate | X | 51121971553 | $3.17 | Shop at ECS Tuning | |||||
| 17 | Mounting parts set | 1 | 51129059116 | $37.65 | Shop at ECS Tuning | |||||
