Trim panel, bumper, front for BMW 5 Series E34 525td (1995)

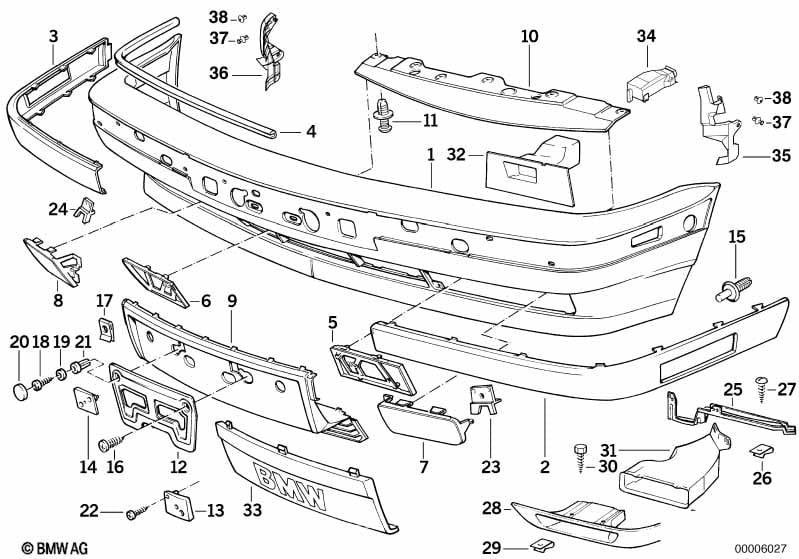

This Trim panel, bumper, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel, bumper, front | ECE | 1 | 51111944439 | $387.17 | Shop at ECS Tuning | ||||
| 01 | Partially painted front bumper trim | CODE - UNI | 1 | 51119066753 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Partially painted front bumper trim | CODE - MET. | 1 | 51119066754 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Fully painted front bumper trim | CODE - UNI | 1 | 51119068396 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Fully painted front bumper trim | CODE - MET. | 1 | 51119068397 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Rubber strip left | 1 | 03/1994 | 51118148815 | $25.98 | Shop at ECS Tuning | ||||
| 03 | Rubber strip right | 1 | 03/1994 | 51118148816 | $25.98 | Shop at ECS Tuning | ||||
| 04 | Gasket | 2 | 51111946222 | ENDED | Shop at ECS Tuning | |||||
| 05 | Covering left | 1 | 51111946495 | $24.78 | Shop at ECS Tuning | |||||
| 06 | Covering right | 1 | 51111946496 | $24.78 | Shop at ECS Tuning | |||||
| 07 | Cover f foglight cut-out left | 1 | 51111946497 | $23.20 | Shop at ECS Tuning | |||||
| 08 | Cover f foglight cut-out right | 1 | 51111946498 | $23.20 | Shop at ECS Tuning | |||||
| 09 | Grid | 1 | 03/1994 | 51118148821 | $64.27 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 09 | Grid | 1 | 03/1994 | 51118148821 | $64.27 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
=Yes |
|||||||||
| 09 | Grid | 1 | 03/1994 | 51118148821 | $64.27 | Shop at ECS Tuning | ||||
| 10 | sealing | 1 | 51711944538 | $11.40 | Shop at ECS Tuning | |||||
| 11 | Expanding rivet | D=7,5MM | 7 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 15 | Expanding rivet, black | L=15MM | X | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 16 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 17 | Body nut | ST4,8-9-ZNS3 | 4 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 18 | Fillister head self-tapping screw | ST4,8X20 | 2 | 51181835719 | $0.33 | Shop at ECS Tuning | ||||
| 19 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 20 | Covering cap | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 20 | Covering cap | SCHWARZ | X | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 20 | Covering cap | DUNKELBLAU | X | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 21 | Plug-in nut | 2 | 51181973549 | $0.39 | Shop at ECS Tuning | |||||
| 22 | Fillister head self-tapping screw | ST4,2X19 | 4 | 51431874616 | $0.39 | Shop at ECS Tuning | ||||
| 23 | Clamping left | 1 | 51111973725 | $0.95 | Shop at ECS Tuning | |||||
| 24 | Clamping right | 1 | 51111973726 | $0.95 | Shop at ECS Tuning | |||||
| 35 | Air duct, left | 1 | 51118168919 | $8.46 | Shop at ECS Tuning | |||||
| 36 | Air duct, right | 1 | 51118168920 | $8.46 | Shop at ECS Tuning | |||||
| 37 | Expanding rivet | 2 | 61131382239 | $0.23 | Shop at ECS Tuning | |||||
| 38 | Expanding rivet | 2 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
