Carrier, bumper front for BMW 5 Series E34 525i (1990)

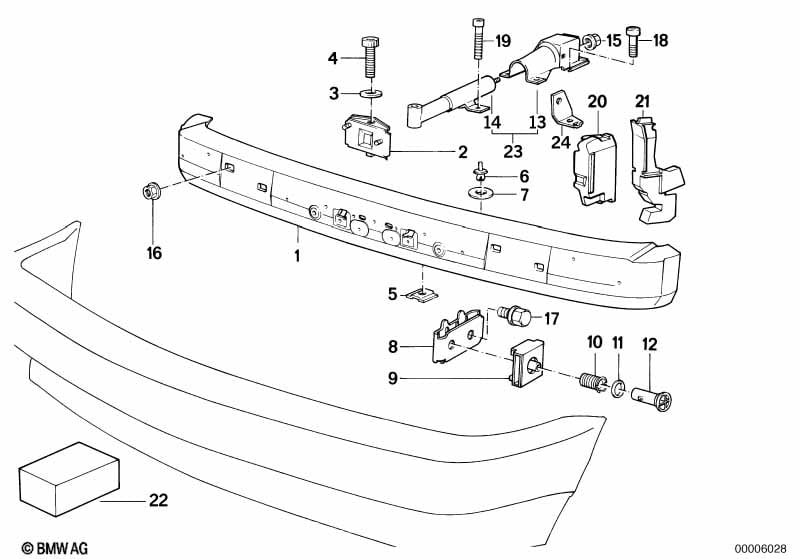

This Carrier, bumper front technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier | 1 | 51111944175 | $289.00 | ENDED | Shop at ECS Tuning | ||||
| 02 | Holder | 2 | 51111944299 | $12.97 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | A13/HV-ZNS | 2 | 01/1996 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 03 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M12X95 | 2 | 07119912841 | $1.27 | Shop at ECS Tuning | ||||
| 05 | Spacer | 4 | 51111944490 | $0.32 | Shop at ECS Tuning | |||||
| 06 | Expanding rivet, black | L=15MM | X | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 07 | Shim | X | 51111953643 | $3.24 | Shop at ECS Tuning | |||||
| 08 | Holder | 2 | 51111944545 | $8.58 | Shop at ECS Tuning | |||||
| 09 | Sliding piece | 2 | 51111944551 | $5.58 | Shop at ECS Tuning | |||||
| 10 | Bush | 2 | 51111944540 | $1.77 | Shop at ECS Tuning | |||||
| 11 | O-ring | 20X3,55 | 2 | 07119906350 | $0.20 | Shop at ECS Tuning | ||||
| 12 | Cap | 2 | 51111944554 | $0.59 | Shop at ECS Tuning | |||||
| 13 | Supporting bracket | 2 | 06/1991 | 51111938607 | ENDED | Shop at ECS Tuning | ||||
| 13 | Shock absorber front | 2 | 11/1992 | 51118126601 | ENDED | Shop at ECS Tuning | ||||
| 13 | Shock absorber front | 2 | 51118138528 | $110.85 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shock absorber front | 2 | 11/1992 | 51118126601 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shock absorber front | 2 | 51118138528 | $110.85 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex nut with plate | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 15 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M10 | 4 | 51111852978 | $2.68 | Shop at ECS Tuning | ||||
| 17 | Hex bolt with washer | M6X12-U2-8.8 | 4 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 18 | Fillister head with washer | M6X16-Z1-8.8-ZN | 4 | 09/1991 | 07119920067 | $0.60 | ENDED | Shop at ECS Tuning | ||
| 19 | Fillister-head screw | M10X30 Z1 10.9 | 4 | 51111969289 | $2.66 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 20 | Covering left | 1 | 09/1991 | 51118102971 | $4.63 | Shop at ECS Tuning | ||||
| 20 | Covering right | 1 | 09/1991 | 51118102972 | $4.63 | Shop at ECS Tuning | ||||
| 21 | Covering left | 1 | 09/1991 | 51118102973 | $7.93 | Shop at ECS Tuning | ||||
| 21 | Covering right | 1 | 09/1991 | 51118102974 | $7.93 | ENDED | Shop at ECS Tuning | |||
| 22 | Mounting parts set | 1 | 51119059110 | $88.39 | Shop at ECS Tuning | |||||
| 23 | Shock absorber front | 2 | 11/1992 | 51118126601 | ENDED | Shop at ECS Tuning | ||||
| 23 | Shock absorber front | 2 | 51118138528 | $110.85 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
