Bumper trim panel, rear for BMW 5 Series E34 535i (1993)

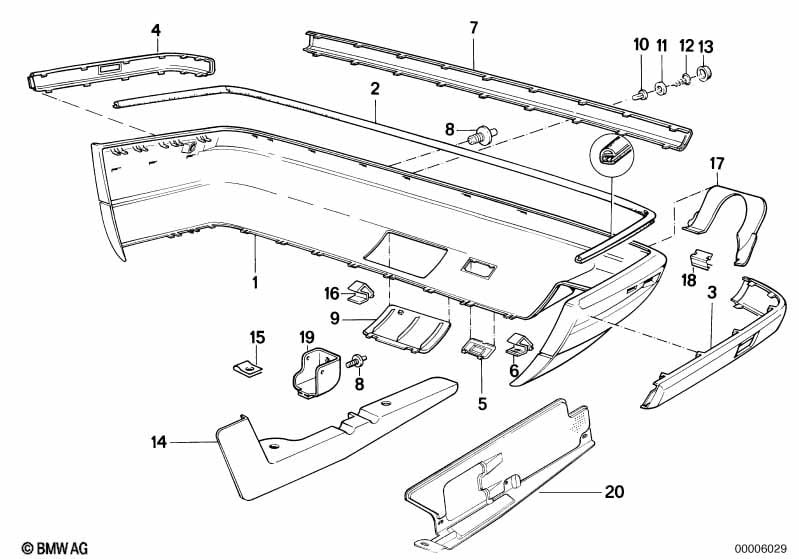

This Bumper trim panel, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel, rear | 1 | 51128185721 | $444.42 | Shop at ECS Tuning | |||||
| 01 | Bumper trim panel,rear,partially painted | CODE - UNI | 1 | 51129066773 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Bumper trim panel,rear,partially painted | CODE - MET. | 1 | 51129066774 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Bumper trim panel,rear, fully painted | CODE - UNI | 1 | 51129068400 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Bumper trim panel,rear, fully painted | CODE - MET. | 1 | 51129068401 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| For vehicles with Park Distance Control |
=Yes |
|||||||||
| 01 | Bumper trim panel, rear | 1 | 51128185721 | $444.42 | Shop at ECS Tuning | |||||
| 02 | Gasket | 1 | 51121946223 | $36.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket | 1 | 51121946224 | Shop at ECS Tuning | ||||||
| 03 | Rubber strip left | 1 | 03/1994 | 51121944185 | $25.55 | Shop at ECS Tuning | ||||
| 04 | Rubber strip right | 1 | 03/1994 | 51121944186 | $25.55 | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 51121944539 | $8.59 | Shop at ECS Tuning | |||||
| 06 | Fixing clamp | 2 | 51711910956 | $1.37 | Shop at ECS Tuning | |||||
| 07 | Protective Mouldings | 1 | 03/1994 | 51121944184 | $58.33 | Shop at ECS Tuning | ||||
| 08 | Expanding rivet, black | L=15MM | X | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 09 | Flap | 1 | 51121946288 | $23.79 | ENDED | Shop at ECS Tuning | ||||
| 10 | Plug-in nut | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 10 | Plug-in nut | 2 | 51181973549 | $0.39 | Shop at ECS Tuning | |||||
| 11 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 12 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Covering cap | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 13 | Covering cap | SCHWARZ | X | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 13 | Covering cap | DUNKELBLAU | X | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 14 | Covering left | 1 | 51711946037 | $7.22 | Shop at ECS Tuning | |||||
| 14 | Covering right | 1 | 51711946038 | $7.22 | Shop at ECS Tuning | |||||
| 15 | Body nut | D=18MM, ZNS-3 | 6 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 16 | Clamp | 3 | 51121946389 | $1.29 | Shop at ECS Tuning | |||||
| 17 | Painted covering | 1 | 51121973387 | $24.42 | Shop at ECS Tuning | |||||
| 18 | Clamp | 6 | 51121946136 | $0.79 | Shop at ECS Tuning | |||||
| 19 | Guide | 1 | 51121973458 | $5.03 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
