Carrier, bumper rear for BMW 5 Series E34 525ix (1995)

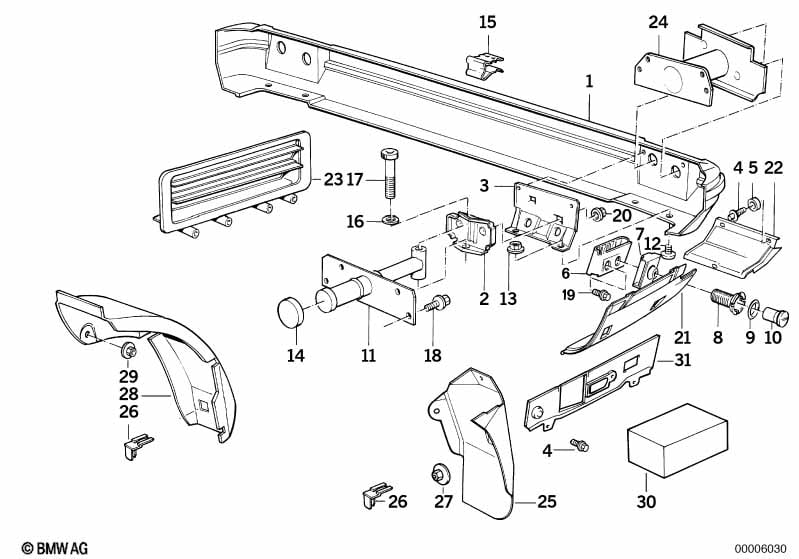

This Carrier, bumper rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier | 1 | 51121944182 | $280.82 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control |
=Yes |
|||||||||
| 01 | Carrier | 1 | 51128168096 | $418.50 | ENDED | Shop at ECS Tuning | ||||
| 02 | Holder | 2 | 51121944541 | $16.28 | ENDED | Shop at ECS Tuning | ||||
| 03 | Reinforcement | 2 | 51121944617 | $17.80 | ENDED | Shop at ECS Tuning | ||||
| 04 | Expanding rivet, black | L=15MM | 7 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Shim | 7 | 51111953643 | $3.24 | Shop at ECS Tuning | |||||
| 06 | Holder | 2 | 51121944543 | $8.75 | Shop at ECS Tuning | |||||
| 07 | Sliding piece | 2 | 51111944551 | $5.58 | Shop at ECS Tuning | |||||
| 08 | Bush | 2 | 51111944540 | $1.77 | Shop at ECS Tuning | |||||
| 09 | O-ring | 20X3,55 | 2 | 07119906350 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Cap | 2 | 51111944554 | $0.59 | Shop at ECS Tuning | |||||
| 11 | Shock absorber rear | 2 | 51128181427 | $93.55 | ENDED | Shop at ECS Tuning | ||||
| 12 | Fit bolt | 8 | 51121946168 | $1.28 | Shop at ECS Tuning | |||||
| 13 | Hex nut with plate | M8 | 8 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 14 | Cap | 2 | 51121938266 | $0.57 | Shop at ECS Tuning | |||||
| 15 | Clamp | 6 | 51121946048 | $1.10 | Shop at ECS Tuning | |||||
| 16 | Washer | A13/HV-ZNS | 2 | 07/1996 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 16 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Fillister-head screw | 2 | 51118117828 | $3.27 | Shop at ECS Tuning | |||||
| 18 | Hex bolt with washer | M6X20-SB-Z3-1 | 8 | 07119915121 | $0.30 | Shop at ECS Tuning | ||||
| 19 | Hex bolt with washer | M6X12-U2-8.8 | 4 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 20 | Hex nut | M10 | 4 | 51111852978 | $2.68 | Shop at ECS Tuning | ||||
| 21 | Heat insulation | 1 | 51481946287 | $48.77 | ENDED | Shop at ECS Tuning | ||||
| 22 | Heat insulation | 1 | 51481946449 | $23.42 | Shop at ECS Tuning | |||||
| 23 | Breather | 2 | 64228368570 | $14.63 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 24 | Bracket left | 1 | 71601134213 | $49.54 | Shop at ECS Tuning | |||||
| 24 | Bracket right | 1 | 71601134214 | Shop at ECS Tuning | ||||||
| 25 | Cover | 1 | 51718102867 | $43.05 | ENDED | Shop at ECS Tuning | ||||
| 26 | Clamp | 4 | 51711944904 | $0.85 | ENDED | Shop at ECS Tuning | ||||
| 27 | Plastic nut | 2 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 28 | Stone-chip guard | 1 | 16121181379 | $31.63 | Shop at ECS Tuning | |||||
| 29 | Plastic nut | 4 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 30 | Mounting parts set | 1 | 51129059111 | $98.67 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
