Rear bumper trim panel - M Technic for BMW 5 Series E34 525i (1995)

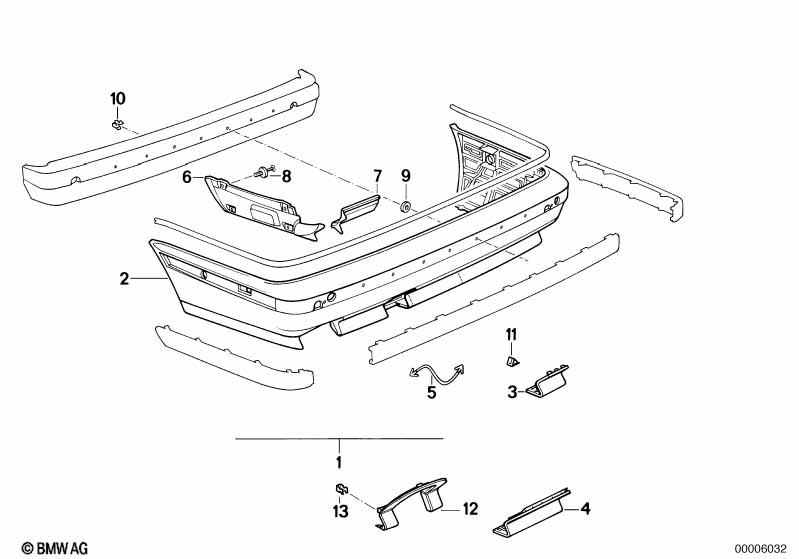

This Rear bumper trim panel - M Technic technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO M TECHNIC only applies to INDIVIDUAL SERIES 95 540I SPORT |
|||||||||
| 02 | Bumper trim panel, rear | M TECHNIC | 1 | 51122230383 | $1293.37 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear apron | CODE - UNI | 1 | 51129066775 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Rear apron | CODE - MET. | 1 | 51129066776 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 03 | Cover | M TECHNIC | 1 | 51122231633 | $16.28 | Shop at ECS Tuning | ||||
| 03 | Cover | CODE - UNI | 1 | 51129066779 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 03 | Cover | CODE - MET. | 1 | 51129066780 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 04 | Flap | M TECHNIC | 1 | 51122230416 | $26.30 | Shop at ECS Tuning | ||||
| 04 | Flap | CODE - UNI | 1 | 51129066783 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 04 | Flap | CODE - MET. | 1 | 51129066784 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 05 | Holding strap | 2 | 51111940365 | $0.90 | Shop at ECS Tuning | |||||
| 05 | Holding strap | 2 | 51111973721 | $0.77 | Shop at ECS Tuning | |||||
| 06 | Cover | M TECHNIC | 1 | 51122230387 | $34.23 | ENDED | Shop at ECS Tuning | |||
| 07 | Covering center | M TECHNIC | 1 | 51122230388 | $16.28 | ENDED | Shop at ECS Tuning | |||
| 08 | Expanding rivet, black | L=15MM | X | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 09 | Shim | 9 | 51111953643 | $3.24 | Shop at ECS Tuning | |||||
| 10 | Clamp | 6 | 51121946048 | $1.10 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 11 | Clamp | M TECHNIC | 4 | 51122231623 | $0.74 | Shop at ECS Tuning | ||||
| 12 | Cover | 1 | 51122232543 | $18.32 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
