Rear apron M technic for BMW 3 Series E30 325i (1992)

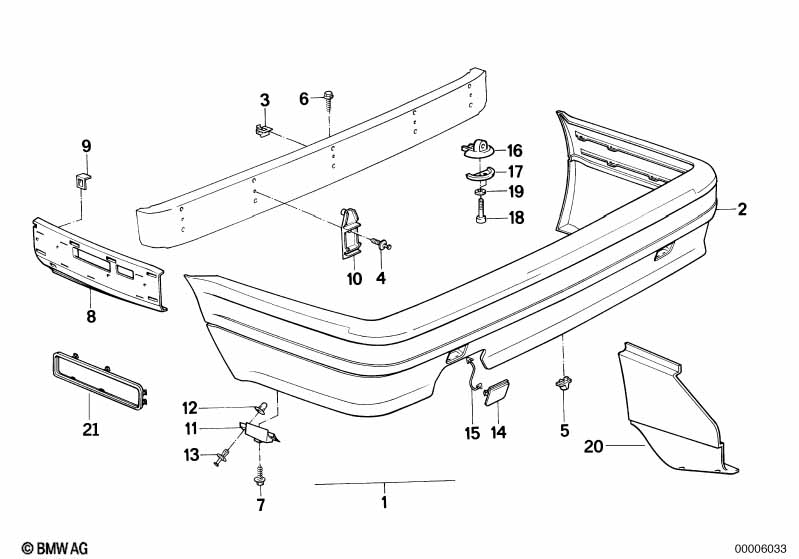

This Rear apron M technic technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Installing set rear apron | M TECHNIC | 1 | 10/1990 | 51712239721 | $918.34 | ENDED, ABE 9786217 | Shop at ECS Tuning | ||
| 02 | Rear apron | M TECHNIC | 1 | 10/1990 | 51712239866 | ENDED | Shop at ECS Tuning | |||
| 03 | Clamp | M TECHNIC | 8 | 05/1990 | 51112239701 | $0.38 | Shop at ECS Tuning | |||
| 04 | Expanding rivet | D = 6MM | 5 | 05/1990 | 51111908077 | $0.30 | Shop at ECS Tuning | |||
| 05 | Expanding rivet | M TECHNIC | 7 | 05/1990 | 51112239725 | $5.08 | Shop at ECS Tuning | |||
| 06 | Hex head screw | ST4,8X19-C-Z2 | 7 | 05/1990 | 07119916949 | $0.25 | Shop at ECS Tuning | |||
| 07 | Fillister head self-tapping screw | ST4,8X13-Z2 | 2 | 05/1990 | 07119907957 | $0.18 | Shop at ECS Tuning | |||
| 08 | Support bumper bracket left | 1 | 05/1990 | 51122232383 | ENDED | Shop at ECS Tuning | ||||
| 08 | Support bumper bracket right | 1 | 05/1990 | 51122232384 | ENDED | Shop at ECS Tuning | ||||
| 09 | Wedge | M TECHNIC | X | 05/1990 | 51112239702 | $0.30 | Shop at ECS Tuning | |||
| 10 | Bracket rear | M TECHNIC | 5 | 05/1990 | 51122239724 | $1.48 | Shop at ECS Tuning | |||
| 11 | Guide left | M TECHNIC | 1 | 05/1990 | 51122239847 | $2.45 | Shop at ECS Tuning | |||
| 11 | Guide right | M TECHNIC | 1 | 05/1990 | 51122239848 | $2.45 | Shop at ECS Tuning | |||
| 12 | Grommet | 4 | 05/1990 | 51711939303 | $0.32 | Shop at ECS Tuning | ||||
| 13 | Rivet | 4 | 05/1990 | 51711936929 | $0.37 | Shop at ECS Tuning | ||||
| 14 | Cover | M TECHNIC | 2 | 05/1990 | 51122239897 | $10.69 | Shop at ECS Tuning | |||
| 15 | Holding strap | 2 | 05/1990 | 51111973721 | $0.77 | Shop at ECS Tuning | ||||
| 16 | Towing hinge | M TECHNIC | 1 | 05/1990 | 51712238864 | $106.50 | ENDED | Shop at ECS Tuning | ||
| 17 | Cover | M TECHNIC | 1 | 05/1990 | 51712238865 | $20.59 | Shop at ECS Tuning | |||
| 18 | ISA screw | M8X16-8.8-ZNS3 | 2 | 05/1990 | 07129903984 | $1.96 | Shop at ECS Tuning | |||
| 19 | Washer | 8-200-ZNS3 | 2 | 05/1990 | 07119904826 | $0.40 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Rear apron M technic?
- This technical diagram illustrates the Rear apron M technic within the Vehicle trim group for the 3 Series E30 325i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Installing set rear apron (Part #51712239721).
- Which models use the hardware listed in this Rear apron M technic?
- The hardware and components featured in the Rear apron M technic are specific to the 3 Series E30 325i produced during 1992. These technical specifications ensure that parts like the Installing set rear apron (51712239721) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear apron M technic assembly?
- Each item in the Rear apron M technic corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Installing set rear apron by locating its position on the schematic, which then links to the official BMW part number 51712239721 for the Vehicle trim section.
