M cover for rocker panel / wheel arch for BMW 3 Series E30 316i (1991)

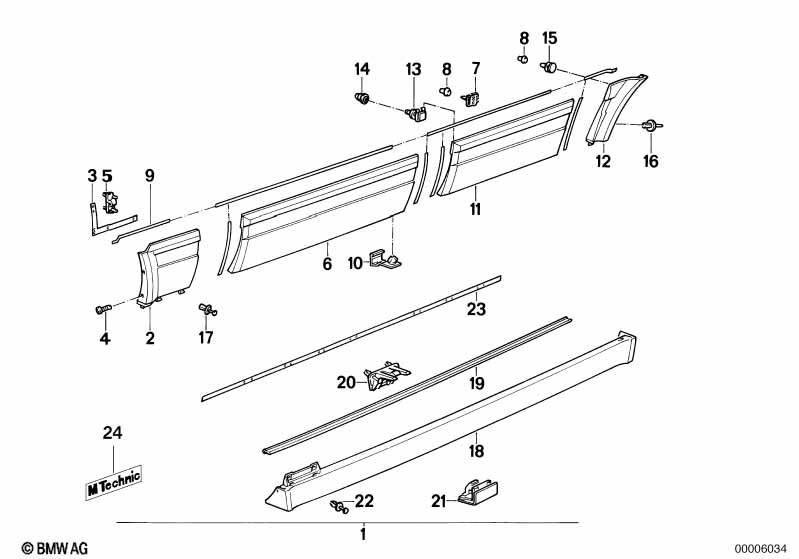

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Panel fender left | M TECHNIC | 1 | 09/1987 | 51712239867 | $90.75 | ENDED | Shop at ECS Tuning | ||
| 02 | Right fender panel | M TECHNIC | 1 | 09/1987 | 51712239868 | $90.75 | ENDED | Shop at ECS Tuning | ||
| 03 | Drilling template left | M TECHNIC | 1 | 09/1987 | 51712239843 | $10.47 | ENDED | Shop at ECS Tuning | ||
| 03 | Drilling template right | M TECHNIC | 1 | 09/1987 | 51712239844 | $10.47 | ENDED | Shop at ECS Tuning | ||
| 04 | Sheet metal screw | ST4,8X19 | 4 | 09/1987 | 07119904714 | $0.25 | Shop at ECS Tuning | |||
| 05 | Clamp | 4 | 09/1987 | 51711934949 | $1.30 | Shop at ECS Tuning | ||||
| 06 | Covering door front left | M TECHNIC | 1 | 09/1987 | 51712239869 | $261.65 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering door front right | M TECHNIC | 1 | 09/1987 | 51712239870 | $261.65 | ENDED | Shop at ECS Tuning | ||
| 07 | Clamp | M TECHNIC | X | 09/1987 | 51162239735 | $0.53 | ENDED | Shop at ECS Tuning | ||
| 08 | Grommet | X | 09/1987 | 51121867907 | $0.46 | Shop at ECS Tuning | ||||
| 09 | Foil | 1835 MM | X | 09/1987 | 51712239899 | $9.14 | Shop at ECS Tuning | |||
| 10 | Lock | M TECHNIC | X | 09/1987 | 51712239736 | $1.54 | Shop at ECS Tuning | |||
| 11 | Covering left | M TECHNIC | 1 | 09/1987 | 51712239871 | $168.43 | ENDED | Shop at ECS Tuning | ||
| 11 | Covering right | M TECHNIC | 1 | 09/1987 | 51712239872 | $168.43 | ENDED | Shop at ECS Tuning | ||
| 13 | Clamping bolt | M TECHNIC | X | 09/1987 | 51162239883 | $1.98 | Shop at ECS Tuning | |||
| 14 | Cap nut | M4 | 4 | 09/1987 | 41335480120 | $0.20 | Shop at ECS Tuning | |||
| 16 | Expanding rivet | 6 | 09/1987 | 51161881149 | $0.20 | Shop at ECS Tuning | ||||
| 17 | Expanding rivet | 6 | 09/1987 | 17111712963 | $0.27 | Shop at ECS Tuning | ||||
| 18 | Covering left | M TECHNIC | 1 | 09/1987 | 51712239729 | $429.55 | ENDED | Shop at ECS Tuning | ||
| 18 | Covering right | M TECHNIC | 1 | 09/1987 | 51712239730 | $429.55 | Shop at ECS Tuning | |||
| 19 | Gasket | M TECHNIC | 2 | 09/1987 | 51712239713 | $13.73 | Shop at ECS Tuning | |||
| 20 | Clamp | M TECHNIC | X | 09/1987 | 51712239734 | $0.85 | Shop at ECS Tuning | |||
| 21 | Clamping | X | 09/1987 | 51711938940 | $1.56 | Shop at ECS Tuning | ||||
| 22 | Expanding rivet | 4 | 09/1987 | 17111712963 | $0.27 | Shop at ECS Tuning | ||||
| 23 | Drilling template left | M TECHNIC | 1 | 09/1987 | 51712239845 | $21.71 | ENDED | Shop at ECS Tuning | ||
| 23 | Drilling template right | M TECHNIC | 1 | 09/1987 | 51712239846 | $21.71 | ENDED | Shop at ECS Tuning | ||
| 24 | Stick-on label | M TECHNIC | 2 | 09/1987 | 51111919154 | $10.66 | Shop at ECS Tuning |
