Bumper, front for BMW 3 Series E30 325i (1989)

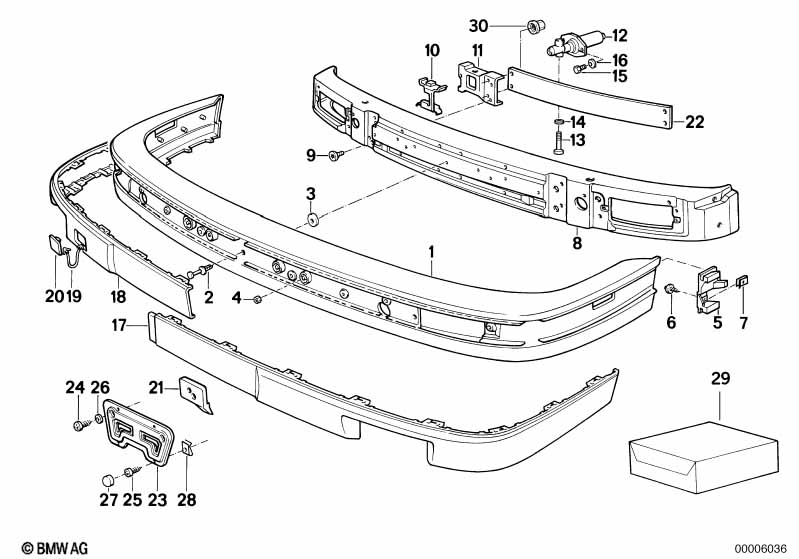

This Bumper, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel | GRUNDIERT | 1 | 06/1988 | 51111953646 | $275.52 | Shop at ECS Tuning | |||
| 02 | Expanding rivet | X | 06/1988 | 51111964186 | $0.37 | Shop at ECS Tuning | ||||
| 03 | Shim | 1 | 06/1988 | 51111953643 | $3.24 | Shop at ECS Tuning | ||||
| 04 | Threaded ring | 4 | 06/1988 | 51111972809 | $0.39 | ENDED | Shop at ECS Tuning | |||
| 05 | Bracket front left | 1 | 06/1988 | 51111953097 | $5.53 | Shop at ECS Tuning | ||||
| 05 | Bracket front right | 1 | 06/1988 | 51111953098 | $5.53 | Shop at ECS Tuning | ||||
| 06 | Hex head screw | ST6,3X22-C-Z2 | 4 | 06/1988 | 07119916971 | $0.30 | Shop at ECS Tuning | |||
| 06 | Hex head screw with washer | ST-6,3X22 | 4 | 06/1988 | 07119901515 | $0.30 | Shop at ECS Tuning | |||
| 07 | Body nut | ST6,3-10 | 4 | 06/1988 | 07129901672 | $0.35 | Shop at ECS Tuning | |||
| 08 | Carrier | 1 | 06/1988 | 51111925595 | $351.96 | ENDED | Shop at ECS Tuning | |||
| 09 | Fit bolt | 6 | 06/1988 | 51121946168 | $1.28 | Shop at ECS Tuning | ||||
| 10 | Stopper left | 1 | 06/1988 | 51111945913 | $4.32 | Shop at ECS Tuning | ||||
| 10 | Stopper right | 1 | 06/1988 | 51111945914 | $4.32 | Shop at ECS Tuning | ||||
| 11 | Support left | 1 | 06/1988 | 51111945911 | $15.50 | ENDED | Shop at ECS Tuning | |||
| 11 | Support right | 1 | 06/1988 | 51111945912 | $15.50 | ENDED | Shop at ECS Tuning | |||
| 12 | Shock absorber front left | 1 | 06/1988 | 51111979995 | $179.57 | Shop at ECS Tuning | ||||
| 12 | Shock absorber front right | 1 | 06/1988 | 51111979996 | $179.57 | ENDED | Shop at ECS Tuning | |||
| 13 | Fillister-head screw | M12X100 | 2 | 06/1988 | 07119920070 | $1.39 | Shop at ECS Tuning | |||
| 13 | Fillister-head screw | M12X90 | 2 | 06/1988 | 51118103009 | $2.18 | ENDED | Shop at ECS Tuning | ||
| 14 | Washer | 12-200 HV-ZNS3 | 2 | 06/1988 | 07119906063 | Shop at ECS Tuning | ||||
| 14 | Bush | 11X22X6 | 2 | 06/1988 | 46712311727 | $1.68 | Shop at ECS Tuning | |||
| 15 | Hex bolt | M8X16-8.8-ZNS3 | 4 | 06/1988 | 07119902900 | $0.36 | Shop at ECS Tuning | |||
| 16 | Washer | A8,4 | 4 | 06/1988 | 33311108205 | $0.16 | Shop at ECS Tuning | |||
| 17 | Rubber strip left | 1 | 06/1988 | 51111971615 | $52.04 | Shop at ECS Tuning | ||||
| 18 | Rubber strip right | 1 | 06/1988 | 51111971616 | $52.04 | Shop at ECS Tuning | ||||
| 19 | Holding strap | 1 | 06/1988 | 51111973721 | $0.77 | Shop at ECS Tuning | ||||
| 20 | Covering cap | 1 | 06/1988 | 51111953644 | $3.95 | ENDED | Shop at ECS Tuning | |||
| 22 | Reinforcement | 1 | 06/1988 | 51111979330 | ENDED | Shop at ECS Tuning | ||||
| 23 | Registration plate mounting | 1 | 06/1988 | 51181908062 | $23.08 | Shop at ECS Tuning | ||||
| 24 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 06/1988 | 07143448498 | $0.18 | Shop at ECS Tuning | |||
| 25 | Fillister head self-tapping screw | ST4,8X13 | 4 | 06/1988 | 07149147132 | Shop at ECS Tuning | ||||
| 26 | Washer | 4-200 HV-ZNS3 | 4 | 06/1988 | 07119904207 | Shop at ECS Tuning | ||||
| 27 | Covering cap | WEISS | 4 | 06/1988 | 51181813017 | $0.21 | Shop at ECS Tuning | |||
| 27 | Covering cap | SCHWARZ | 4 | 06/1988 | 51181823474 | $0.21 | Shop at ECS Tuning | |||
| 27 | Covering cap | DUNKELBLAU | 4 | 06/1988 | 64111375497 | $0.20 | Shop at ECS Tuning | |||
| 28 | Plug-in nut | M5 | 4 | 06/1988 | 46637651465 | $1.29 | Shop at ECS Tuning | |||
| 29 | Mounting parts set | 1 | 06/1988 | 51119059108 | $54.20 | ENDED | Shop at ECS Tuning |
