Exhaust gas system screening for BMW 5 Series E34 524td (1991)

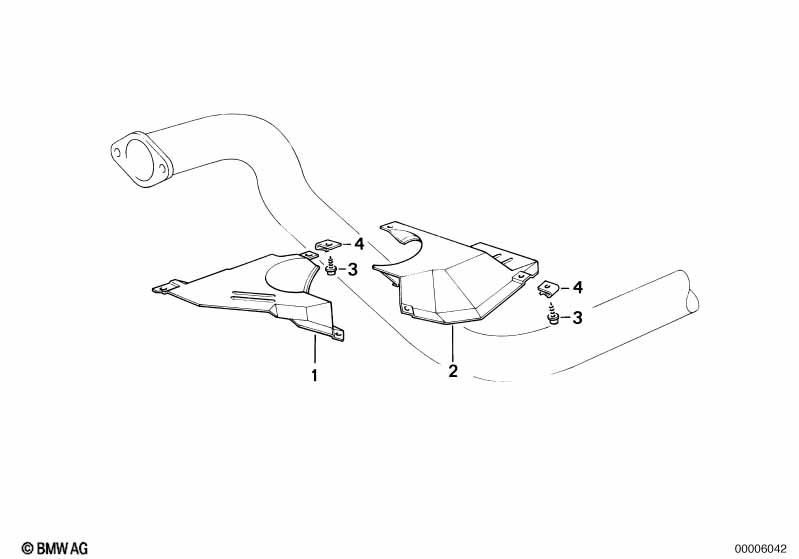

This Exhaust gas system screening technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Screening | 1 | 51711978000 | ENDED | Shop at ECS Tuning | |||||
| 02 | Screening | 1 | 51711978001 | Shop at ECS Tuning | ||||||
| 03 | Hex head screw | ST6,3X19-C-Z2 | X | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST6,3-4 ZNS3 | X | 07147144276 | $0.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
