Cover door sill / wheel arch for BMW 3 Series E30 325i (1989)

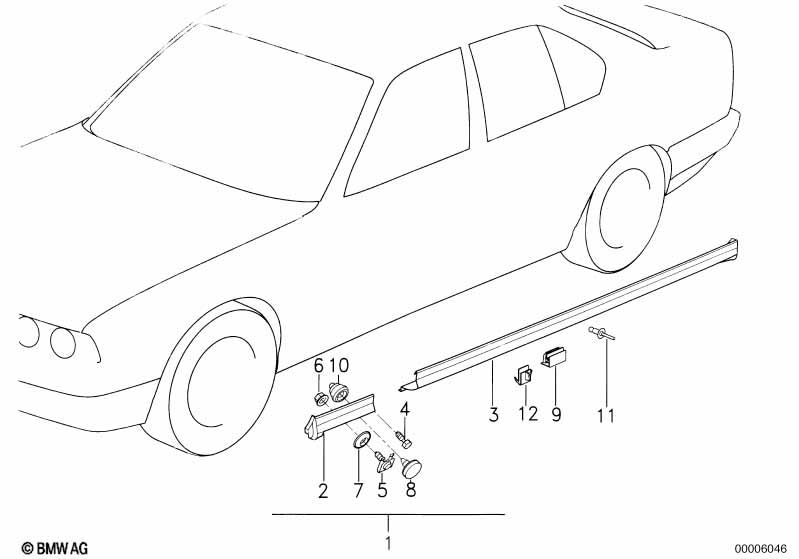

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Covering left | 1 | 09/1987 | 51711947059 | $29.88 | Shop at ECS Tuning | ||||
| 02 | Covering right | 1 | 09/1987 | 51711947060 | $29.88 | Shop at ECS Tuning | ||||
| 03 | Covering left | 1 | 09/1987 | 51711947063 | $124.69 | Shop at ECS Tuning | ||||
| 03 | Covering right | 1 | 09/1987 | 51711947064 | $124.69 | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | ST4,8X19 | 2 | 09/1987 | 07119904714 | $0.25 | Shop at ECS Tuning | |||

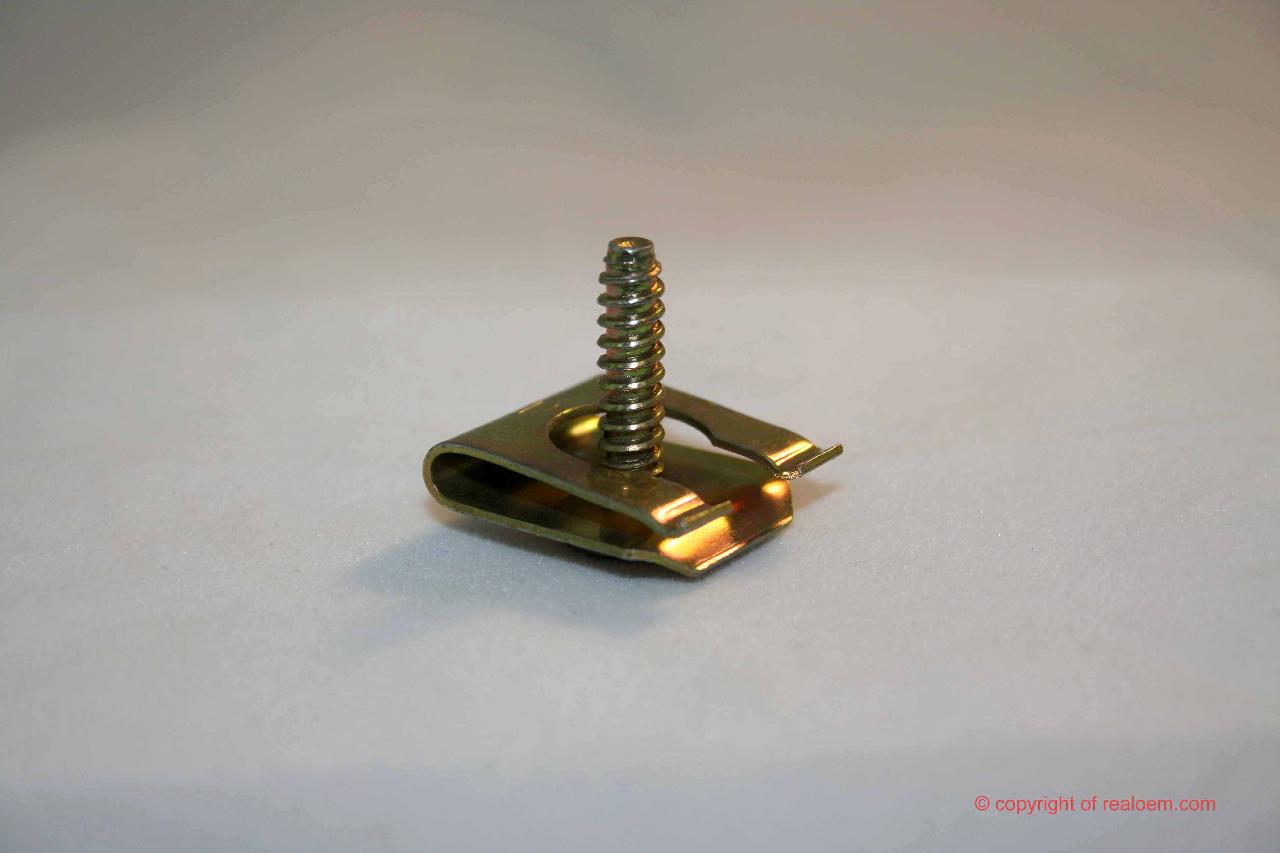

| 05 | Clamping bolt | 2 | 09/1987 | 51711933719 | $1.94 | Shop at ECS Tuning | ||||
| 06 | Plastic nut for coarse threaded pin | M6 | 2 | 09/1987 | 16131176747 | $0.53 | Shop at ECS Tuning | |||

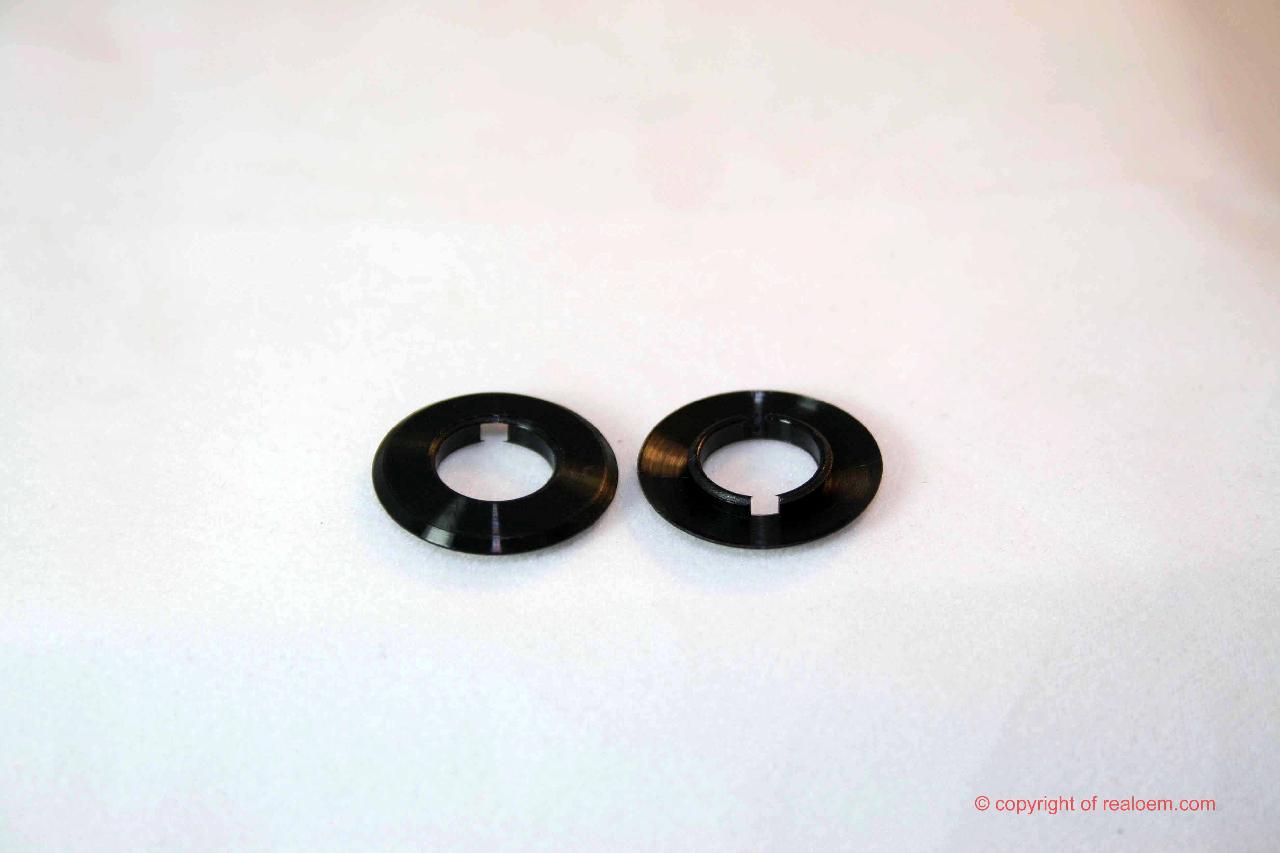

| 07 | Clamp | 2 | 09/1987 | 51711922599 | $0.42 | Shop at ECS Tuning | ||||

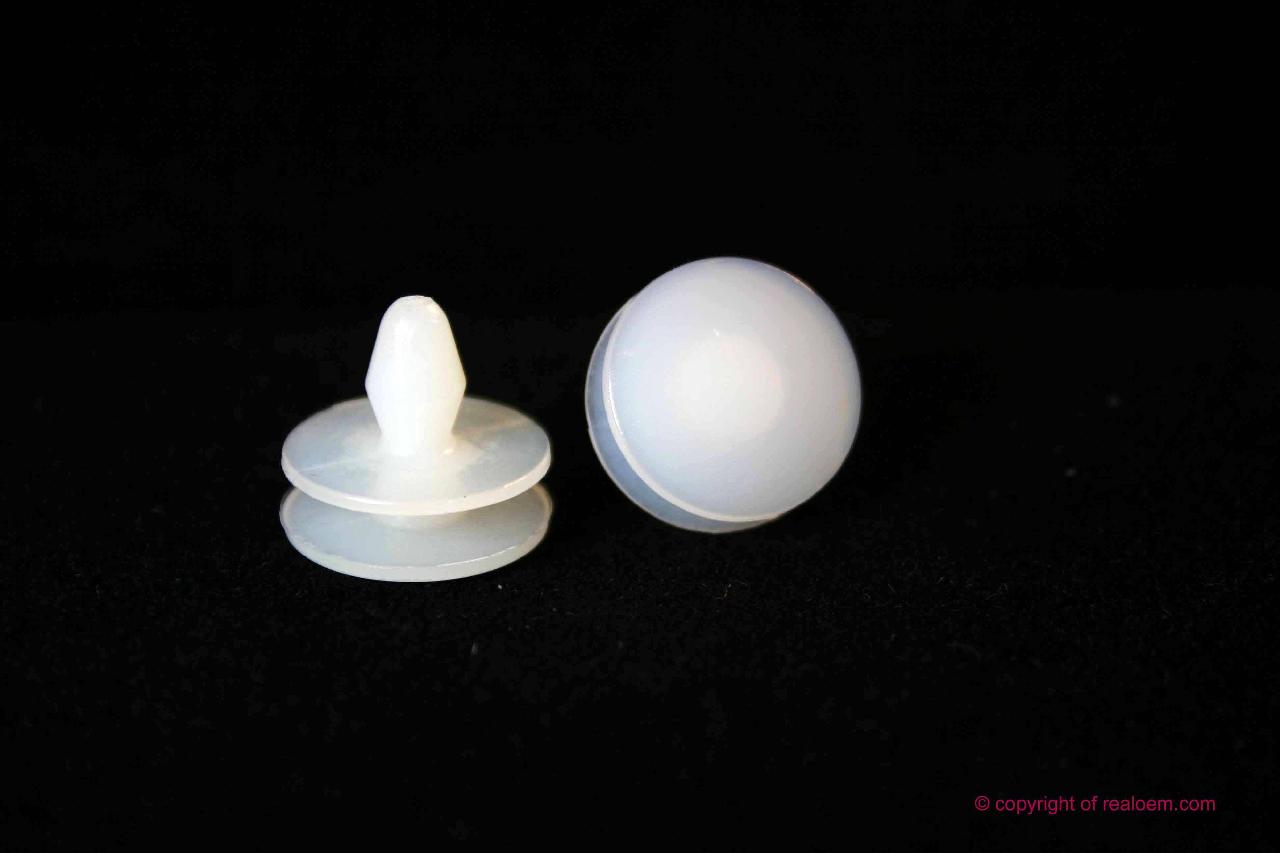

| 08 | Plug | 2 | 09/1987 | 51711927439 | $0.58 | Shop at ECS Tuning | ||||
| 09 | Clamping | X | 09/1987 | 51711938940 | $1.56 | Shop at ECS Tuning | ||||
| 10 | Grommet, green | D=9,1MM | X | 09/1987 | 51711932996 | $0.23 | Shop at ECS Tuning | |||

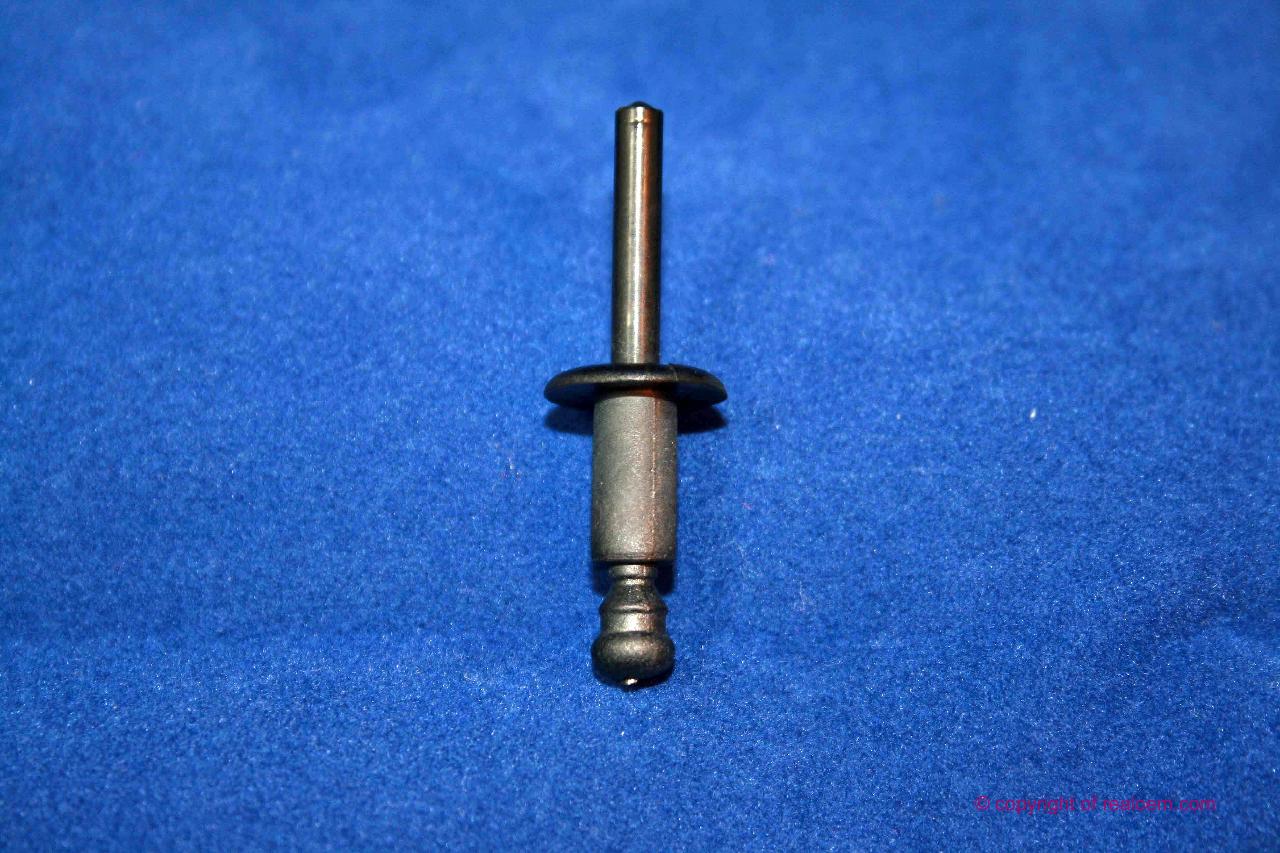

| 11 | Rivet | 4 | 09/1987 | 51111942789 | $0.90 | Shop at ECS Tuning | ||||
| 12 | Clamp | X | 09/1987 | 51711959929 | $0.85 | Shop at ECS Tuning |
