Bumper rear for BMW 6 Series E24 633CSi (1979)

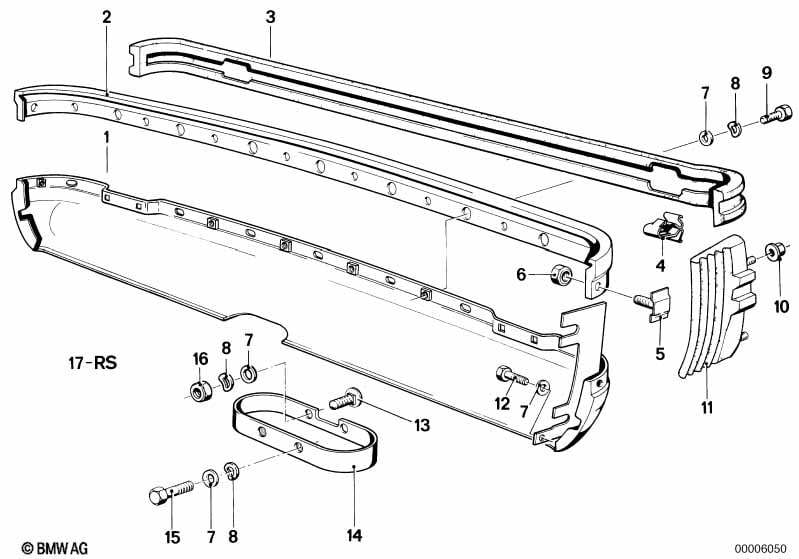

This Bumper rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper | 1 | 09/1982 | 51121867588 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bumper rear | 1 | 09/1982 | 51121843504 | $390.30 | ENDED | Shop at ECS Tuning | |||
| 03 | Rubber strip rear | 1 | 09/1982 | 51121839142 | $164.02 | Shop at ECS Tuning | ||||

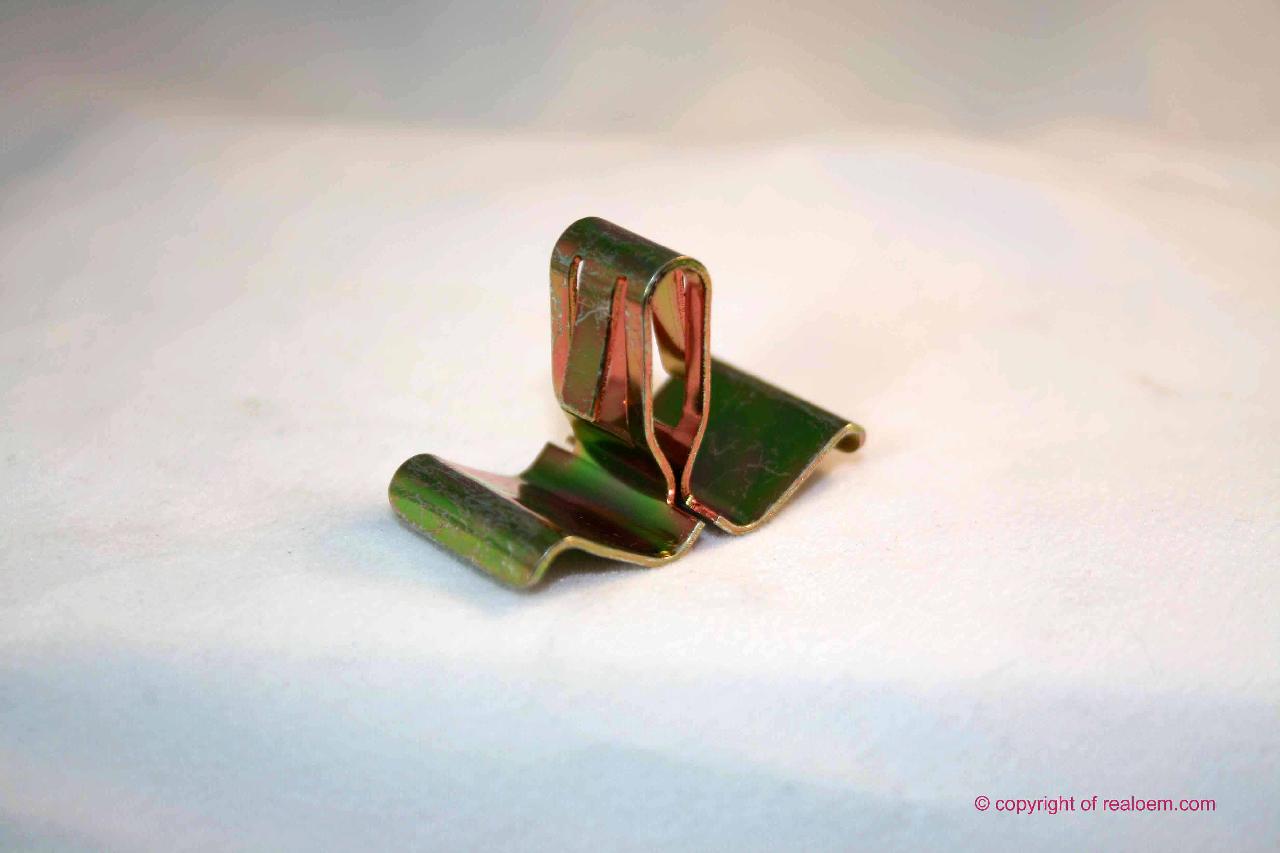

| 04 | Clip | 7 | 09/1982 | 51111838076 | $1.98 | Shop at ECS Tuning | ||||
| 05 | Fastener | 2 | 09/1982 | 51111829684 | $5.37 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M6 | 2 | 09/1982 | 07147134319 | $1.05 | Shop at ECS Tuning | |||
| 06 | Self-locking hex nut | M6 | 2 | 09/1982 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 07 | Washer | 8,4X16X1,6-ZNNV | X | 09/1982 | 07119907030 | Shop at ECS Tuning | ||||
| 08 | Wave washer | 8,4X15-ZNS3 | X | 09/1982 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 09 | Hex bolt | M8X16-8.8-ZNS3 | 8 | 09/1982 | 07119902900 | $0.36 | Shop at ECS Tuning | |||
| 10 | Hex nut with plate | M5 | 4 | 09/1982 | 07147202368 | Shop at ECS Tuning | ||||
| 11 | Covering left | 1 | 09/1982 | 51121843507 | $80.91 | ENDED | Shop at ECS Tuning | |||
| 11 | Covering right | 1 | 09/1982 | 51121843508 | $80.91 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex bolt with washer | M8X12-Z3-1 | 2 | 09/1982 | 07119913011 | $0.47 | Shop at ECS Tuning | |||

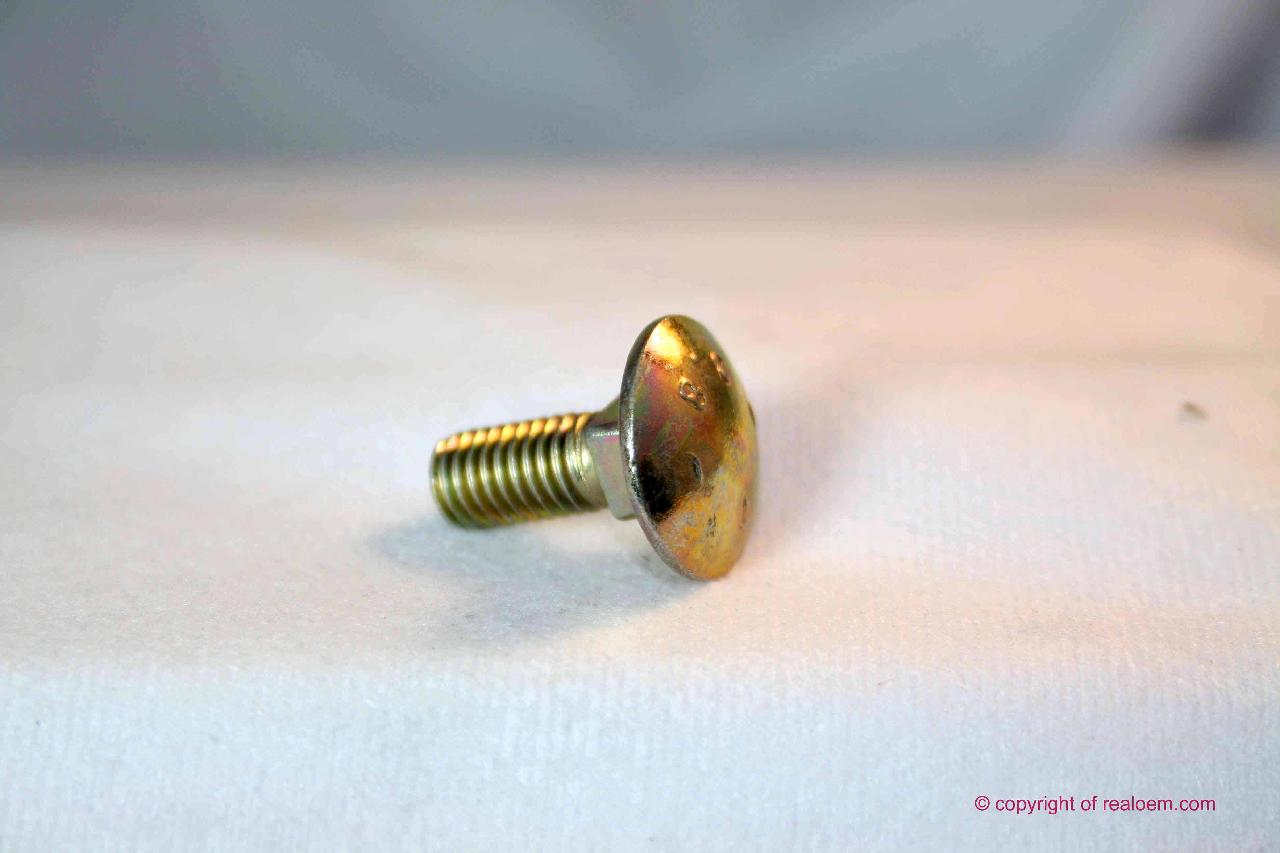

| 13 | Saucer-head screw | M8X20 | 4 | 09/1982 | 07119910437 | $0.52 | Shop at ECS Tuning | |||
| 14 | Bracket rear | 2 | 09/1982 | 51121843506 | $22.92 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X20-ZNNIV SI | 4 | 09/1982 | 07119903039 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M8-8-ZNS3 | 4 | 09/1982 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 16 | Hex nut | M8-8-ZNNIV SI | 4 | 09/1982 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 17 | Mounting parts set | 1 | 09/1982 | 51129056460 | $12.73 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Bumper rear?
- This technical diagram illustrates the Bumper rear within the Vehicle trim group for the 6 Series E24 633CSi produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Bumper (Part #51121867588).
- Which models use the hardware listed in this Bumper rear?
- The hardware and components featured in the Bumper rear are specific to the 6 Series E24 633CSi produced during 1979. These technical specifications ensure that parts like the Bumper (51121867588) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bumper rear assembly?
- Each item in the Bumper rear corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Bumper by locating its position on the schematic, which then links to the official BMW part number 51121867588 for the Vehicle trim section.
