Bumper rear for BMW 6 Series E24 633CSi (1979)

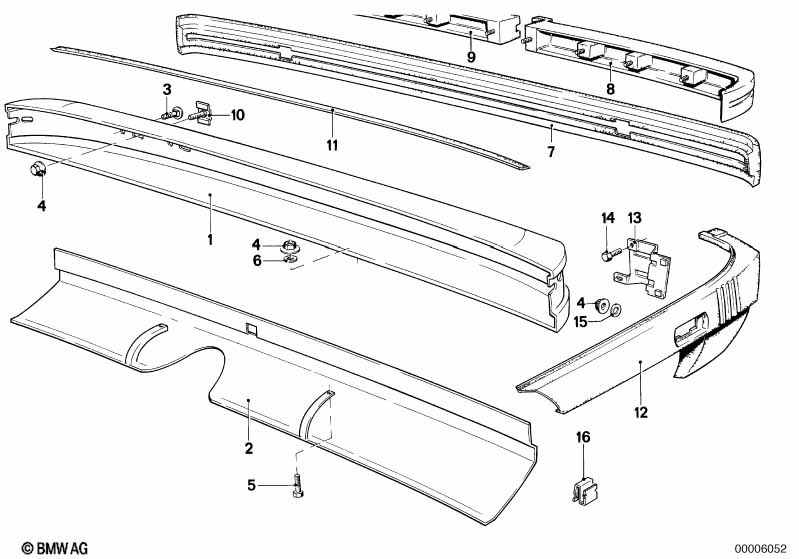

This Bumper rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper rear | 1 | 09/1979 | 51121869760 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover | 1 | 09/1979 | 51121864099 | $376.09 | ENDED | Shop at ECS Tuning | |||
| 03 | Saucer-head screw | M6X16 | 6 | 06/1987 | 07119910408 | $0.80 | Shop at ECS Tuning | |||
| 04 | Self-locking hex nut | M6 | X | 06/1987 | 07147153450 | $0.47 | Shop at ECS Tuning | |||
| 04 | Self-locking hex nut | M6 | X | 06/1987 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M6X25 | 2 | 06/1987 | 07119913483 | $0.36 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M6X25 | 2 | 06/1987 | 07119913589 | $0.62 | Shop at ECS Tuning | |||
| 06 | Washer | A6,4-ZNNIV SI | 2 | 06/1987 | 07119904202 | Shop at ECS Tuning | ||||
| 07 | Protective Mouldings | 1 | 09/1979 | 51121869747 | ENDED | Shop at ECS Tuning | ||||
| 10 | Fastener | 9 | 06/1987 | 51111829684 | $5.37 | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 06/1987 | 51121869756 | $40.02 | Shop at ECS Tuning | ||||
| 12 | Covering left | 1 | 06/1987 | 51121869749 | $235.61 | Shop at ECS Tuning | ||||
| 12 | Covering right | 1 | 06/1987 | 51121869750 | $235.61 | ENDED | Shop at ECS Tuning | |||
| 13 | Bracket left | 1 | 06/1987 | 51121861051 | ENDED | Shop at ECS Tuning | ||||
| 13 | Bracket right | 1 | 06/1987 | 51121861052 | $7.28 | ENDED | Shop at ECS Tuning | |||
| 14 | Hex bolt with washer | M6X16-U2-ZNS3 | 4 | 06/1987 | 07119902913 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M6X16-U1-8.8 | 8 | 06/1987 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 15 | Washer-gasket | 6 | 06/1987 | 51125670140 | $0.50 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
