Bumper rear for BMW 7 Series E23 733i (1982)

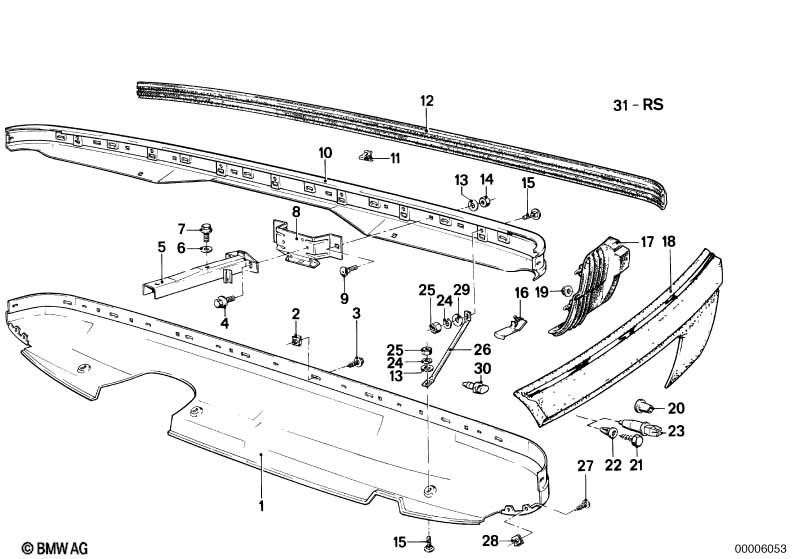

This Bumper rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Body nut | ST 4,8-7-ZNS3 | 7 | 07129904226 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,8X19-C-Z2 | X | 07119916949 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X25-Z9 | 4 | 07119915168 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Holder | 2 | 51121852152 | $10.73 | Shop at ECS Tuning | |||||
| 06 | Washer | 10-200 ZNS3 | 4 | 07119904209 | $1.16 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M10X25 | 4 | 51121854684 | Shop at ECS Tuning | |||||
| 08 | Reinforcement left | 1 | 51121852147 | $16.84 | Shop at ECS Tuning | |||||
| 08 | Reinforcement right | 1 | 51121852148 | $16.84 | Shop at ECS Tuning | |||||
| 09 | Screw | 6 | 51121843029 | $0.65 | Shop at ECS Tuning | |||||
| 10 | Bumper rear top | CR | 1 | 51121847453 | $446.75 | Shop at ECS Tuning | ||||
| 11 | Clip | 8 | 51111838076 | $1.98 | Shop at ECS Tuning | |||||
| 12 | Rubber strip | 1 | 51121852305 | $93.78 | Shop at ECS Tuning | |||||
| 13 | Washer | 8,4X16X1,6-ZNNV | X | 07119907030 | Shop at ECS Tuning | |||||
| 14 | Hex nut | M8-8-ZNS3 | 6 | 05/1986 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Hex nut | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Saucer-head screw | M6X16 | 6 | 07119910408 | $0.80 | Shop at ECS Tuning | ||||
| 17 | Bumper rear left | 1 | 09/1982 | 51121847455 | $164.53 | Shop at ECS Tuning | ||||
| 17 | Bumper rear right | 1 | 09/1982 | 51121847456 | $164.53 | Shop at ECS Tuning | ||||
| 19 | Hex nut with plate | M6 | X | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 21 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 22 | Prestol-cage | ST4,8 | 4 | 07129925765 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 23 | Pin | 4 | 51121920096 | ENDED | Shop at ECS Tuning | |||||
| 24 | Spring washer | B6 | 6 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 25 | Hex nut | M6-8-ZNNIV SI | 6 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 26 | Support | 3 | 51121858950 | $7.26 | Shop at ECS Tuning | |||||
| 27 | Sheet metal screw | ST4,2X19-U2-C-H | 4 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 28 | Body nut | ST4,2-1-ZNS3 | 4 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 29 | Washer | A6,4-ZNNIV SI | 3 | 07119904202 | Shop at ECS Tuning | |||||
| 29 | Washer | 8,4X16X1,6-ZNNV | 3 | 07119907030 | Shop at ECS Tuning | |||||
| 31 | Mounting parts set | 1 | 09/1982 | 51129056458 | $13.28 | ENDED | Shop at ECS Tuning |
