Bumper rear for BMW 5 Series E28 525e (1987)

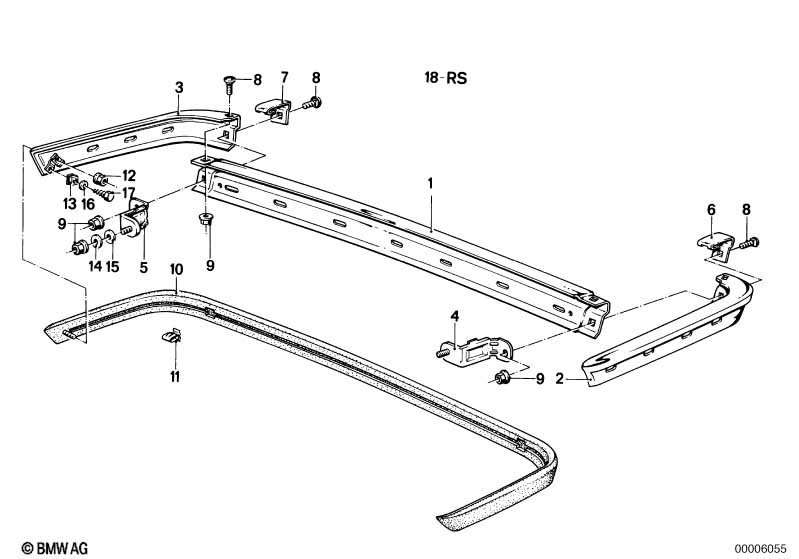

This Bumper rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper rear center | 1 | 51121934665 | $412.09 | ENDED | Shop at ECS Tuning | ||||
| 01 | Bumper prime coated rear center | 1 | 51121961876 | $177.64 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bumper rear left | 1 | 51121867607 | $201.05 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bumper prime coated rear left | 1 | 51121961913 | $156.13 | Shop at ECS Tuning | |||||
| 03 | Bumper rear right | 1 | 51121867608 | $201.05 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bumper prime coated rear right | 1 | 51121961914 | $156.13 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket left | 1 | 03/1985 | 51121925753 | $14.12 | ENDED | Shop at ECS Tuning | |||
| 05 | Bracket right | 1 | 03/1985 | 51121925754 | $14.12 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering left | 1 | 51121867609 | $36.26 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover, primed, left | 1 | 51121961919 | $21.61 | Shop at ECS Tuning | |||||
| 07 | Covering right | 1 | 51121867610 | $36.26 | Shop at ECS Tuning | |||||
| 07 | Cover, primed, right | 1 | 51121961920 | $24.85 | Shop at ECS Tuning | |||||
| 08 | Screw | 4 | 51121843029 | $0.65 | Shop at ECS Tuning | |||||
| 09 | Hex nut with plate | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 10 | Protective Mouldings | 1 | 51121867615 | $119.35 | Shop at ECS Tuning | |||||
| 11 | Clamp | X | 51111867927 | $0.42 | Shop at ECS Tuning | |||||
| 12 | Hex nut with plate | M6 | 4 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 13 | Body nut | ST6.3 ZN | 2 | 51111900386 | $2.90 | ENDED | Shop at ECS Tuning | |||
| 14 | Rubber washer | 2 | 51121900409 | $0.80 | ENDED | Shop at ECS Tuning | ||||
| 15 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Rubber washer | 2 | 51121886299 | $0.15 | Shop at ECS Tuning | |||||
| 17 | Hex head screw | ST6,3X25-C-Z2 | 2 | 07119916973 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 18 | Mounting parts set | 1 | 51129056462 | $14.93 | ENDED | Shop at ECS Tuning |
