Rear bumper trim panel - M Technic for BMW 5 Series E28 524td (1987)

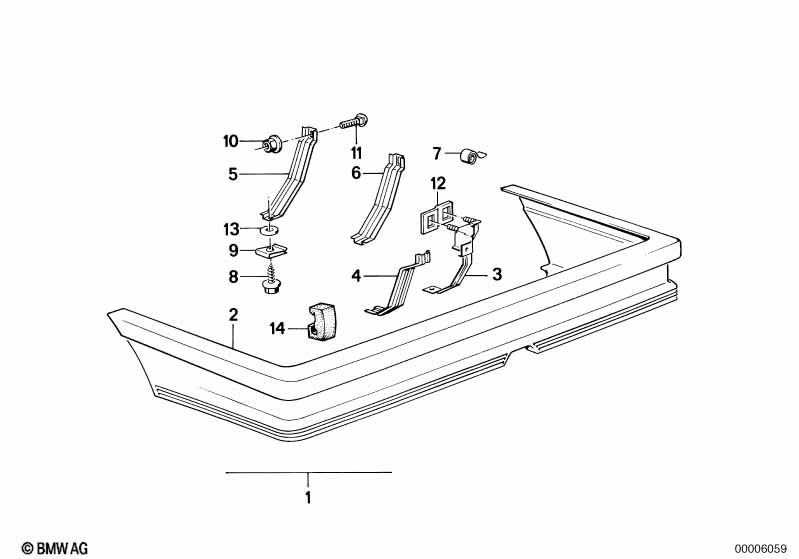

This Rear bumper trim panel - M Technic technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, M rear apron, primed | M TECHNIC | 1 | 51129057960 | $856.53 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear apron | M TECHNIC | 1 | 51121934667 | $1147.89 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket left | M TECHNIC | 1 | 51121931685 | $40.73 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket right | M TECHNIC | 1 | 51121931686 | $40.73 | Shop at ECS Tuning | ||||
| 04 | Reinforcement rear | M TECHNIC | 3 | 51121931687 | $7.51 | Shop at ECS Tuning | ||||
| 05 | Reinforcement right | M TECHNIC | 2 | 51121931688 | $52.66 | ENDED | Shop at ECS Tuning | |||
| 06 | Reinforcement right | M TECHNIC | 2 | 51121931690 | $54.08 | ENDED | Shop at ECS Tuning | |||
| 07 | Adhesive tape | M TECHNIC | 1 | 51711919522 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex head screw | ST4,8X16-ZNS3 | X | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Plug-in nut | M5 | X | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 10 | Hex nut with plate | M6 | X | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 11 | Square headed bolt | M6 | 7 | 51121931692 | $1.25 | ENDED | Shop at ECS Tuning | |||
| 12 | Reinforcement | M TECHNIC | 2 | 51121935856 | $10.52 | ENDED | Shop at ECS Tuning | |||
| 13 | Insulating washer | 2 | 13641262255 | $0.28 | Shop at ECS Tuning | |||||
| 14 | Stop buffer | M TECHNIC | 3 | 51711937997 | $1.05 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
