Shock absorber rear for BMW 6 Series E24 635CSi (1989)

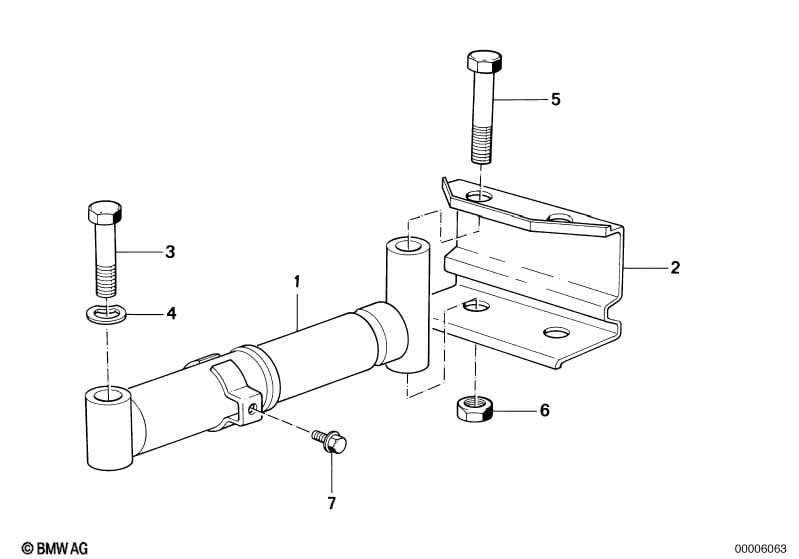

This Shock absorber rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shock absorber, rear right | 1 | 06/1987 | 51121967514 | $142.34 | Shop at ECS Tuning | ||||
| 01 | Shock absorber, rear right | 1 | 06/1987 | 51121967514 | $142.34 | Shop at ECS Tuning | ||||
| 02 | Support shock absorber rear | 4 | 06/1987 | 51121967512 | $12.47 | ENDED | Shop at ECS Tuning | |||
| 02 | Support shock absorber rear | 4 | 06/1987 | 51121967512 | $12.47 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex bolt | M14X75 | 2 | 06/1987 | 07119912870 | $5.38 | ENDED | Shop at ECS Tuning | ||
| 03 | Hex bolt | M14X75 | 2 | 06/1987 | 07119912870 | $5.38 | ENDED | Shop at ECS Tuning | ||
| 04 | Spring washer | B14 | 2 | 06/1987 | 07119933148 | $0.20 | Shop at ECS Tuning | |||
| 04 | Spring washer | B14 | 2 | 06/1987 | 07119933148 | $0.20 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M14X110 | 2 | 06/1987 | 07119912874 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt | M14X110 | 2 | 06/1987 | 07119912874 | ENDED | Shop at ECS Tuning | |||
| 06 | Self-locking hex nut | M14 | 2 | 06/1987 | 07129922739 | $2.13 | Shop at ECS Tuning | |||
| 06 | Self-locking hex nut | M14 | 2 | 06/1987 | 07129922739 | $2.13 | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 06/1987 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 06/1987 | 07119904517 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Shock absorber rear?
- This technical diagram illustrates the Shock absorber rear within the Vehicle trim group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Shock absorber, rear right (Part #51121967514).
- Which models use the hardware listed in this Shock absorber rear?
- The hardware and components featured in the Shock absorber rear are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Shock absorber, rear right (51121967514) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Shock absorber rear assembly?
- Each item in the Shock absorber rear corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Shock absorber, rear right by locating its position on the schematic, which then links to the official BMW part number 51121967514 for the Vehicle trim section.
