Grille for BMW 5 Series E12 520 (1976)

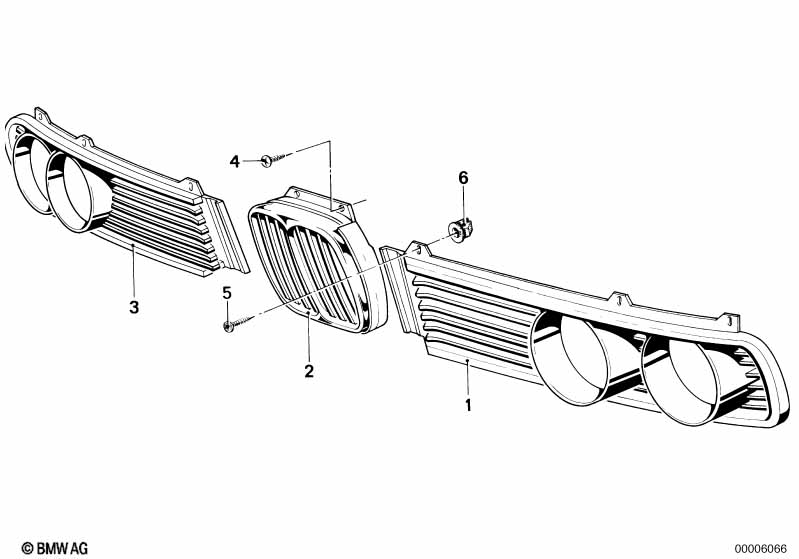

This Grille technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille left | 1 | 08/1976 | 51131848113 | $142.90 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 01 | Grille left | 1 | 08/1976 | 51131848353 | $70.87 | ENDED | Shop at ECS Tuning | |||
| 02 | Grille center | 1 | 08/1976 | 51131848104 | $175.00 | Shop at ECS Tuning | ||||
| 03 | Grille right | 1 | 08/1976 | 51131848114 | $142.90 | +core | Shop at ECS Tuning | |||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 03 | Grille right | 1 | 08/1976 | 51131848354 | $70.87 | ENDED | Shop at ECS Tuning | |||
| 04 | Fillister head self-tapping screw | ST3,9X19 | 2 | 08/1976 | 07119906744 | $0.37 | Shop at ECS Tuning | |||
| 05 | Fillister head self-tapping screw | ST3,9X13 | X | 08/1976 | 07147202502 | $0.26 | Shop at ECS Tuning | |||
| 06 | Expanding nut | 3,9 | X | 08/1976 | 51135680113 | $0.28 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
