Grille for BMW 6 Series E24 633CSi

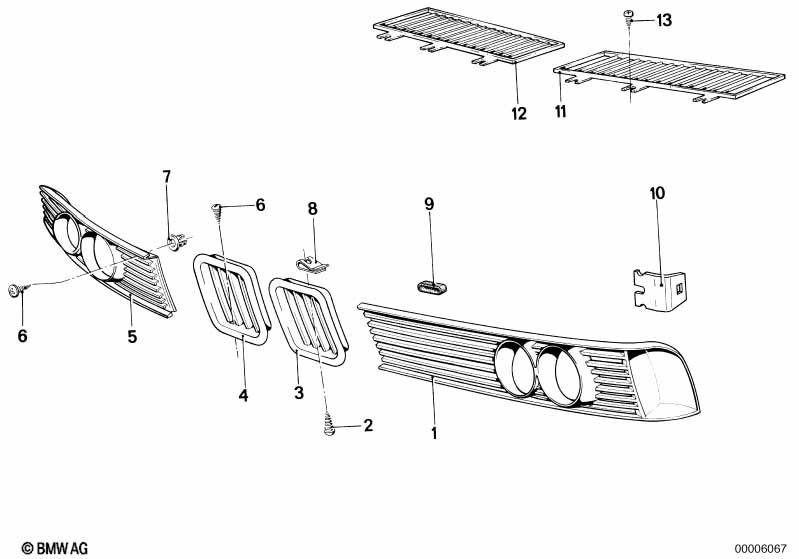

This Grille technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille left | 1 | 51131838751 | $166.54 | Shop at ECS Tuning | |||||
| 02 | Recessed oval head sheet-metal screw | ST3,5X9,5 | 2 | 07119902524 | $0.82 | Shop at ECS Tuning | ||||
| 03 | Grille center | LINKS | 1 | 51131843687 | $86.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Grille center | RECHTS | 1 | 51131843688 | $89.31 | ENDED | Shop at ECS Tuning | |||
| 05 | Grille right | 1 | 51131838752 | $166.54 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST3,9X13 | 8 | 07147202502 | $0.26 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | 3,9 | 8 | 51135680113 | $0.28 | Shop at ECS Tuning | ||||
| 08 | Body nut | ST3,5-1-ZNS | 2 | 07129901634 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Cap | 8 | 51131859774 | ENDED | Shop at ECS Tuning | |||||
| 10 | Support | 2 | 51131839627 | $7.09 | ENDED | Shop at ECS Tuning | ||||
| 11 | Grille left | 1 | 51131843535 | $46.24 | Shop at ECS Tuning | |||||
| 12 | Grille right | 1 | 51131843536 | $46.24 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST3,9X13 | X | 07147202502 | $0.26 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
