Grille for BMW 7 Series E23 728 (1979)

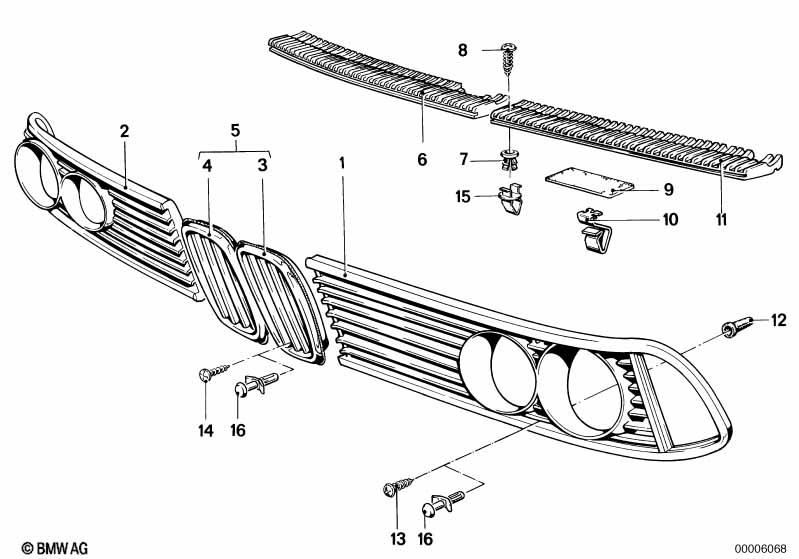

This Grille technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille left | 1 | 09/1982 | 51131848631 | $181.98 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 01 | Grille left | 1 | 09/1982 | 51131853877 | $97.09 | Shop at ECS Tuning | ||||
| 02 | Grille right | 1 | 09/1982 | 51131848632 | $181.98 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 02 | Grille right | 1 | 09/1982 | 51131853878 | $97.09 | Shop at ECS Tuning | ||||
| 03 | Grille center | LINKS | 1 | 09/1982 | 51131848671 | $71.20 | ENDED | Shop at ECS Tuning | ||
| 04 | Grille center | RECHTS | 1 | 09/1982 | 51131848672 | $71.20 | Shop at ECS Tuning | |||
| 06 | Grille,air inlet | 1 | 51131870624 | $142.41 | ENDED | Shop at ECS Tuning | ||||
| 07 | Expanding nut | 3,9 | 3 | 51135680113 | $0.28 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | ST 3.9 | 3 | 51711874203 | $0.23 | Shop at ECS Tuning | ||||
| 08 | Sheet metal screw | B3.5X13 | 4 | 51131867601 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 09 | Gasket | 2 | 51131858268 | $0.21 | ENDED | Shop at ECS Tuning | ||||

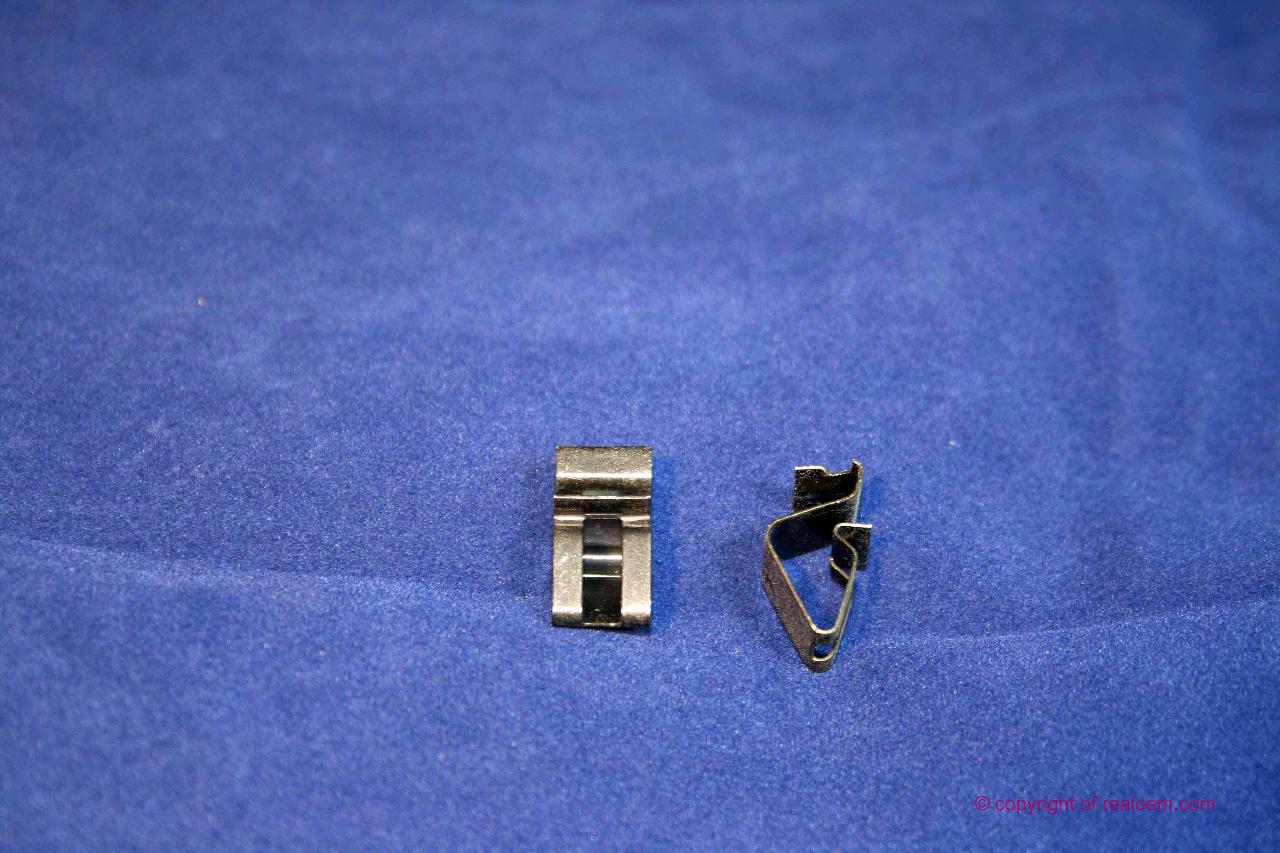

| 10 | Clamp | 4 | 51131819327 | $0.18 | Shop at ECS Tuning | |||||
| 11 | Grille,air inlet | 1 | 51131870623 | $22.88 | ENDED | Shop at ECS Tuning | ||||
| 12 | Grommet | 12X6,3 | X | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST3,9X13 | X | 07147202502 | $0.26 | Shop at ECS Tuning | ||||
| 14 | Fillister head self-tapping screw | ST4,2X19 | 2 | 09/1982 | 07119904431 | $0.36 | Shop at ECS Tuning | |||
| 15 | Clamp | 2 | 51131881595 | $1.30 | Shop at ECS Tuning | |||||
