Grille for BMW 3 Series E30 325i (1989)

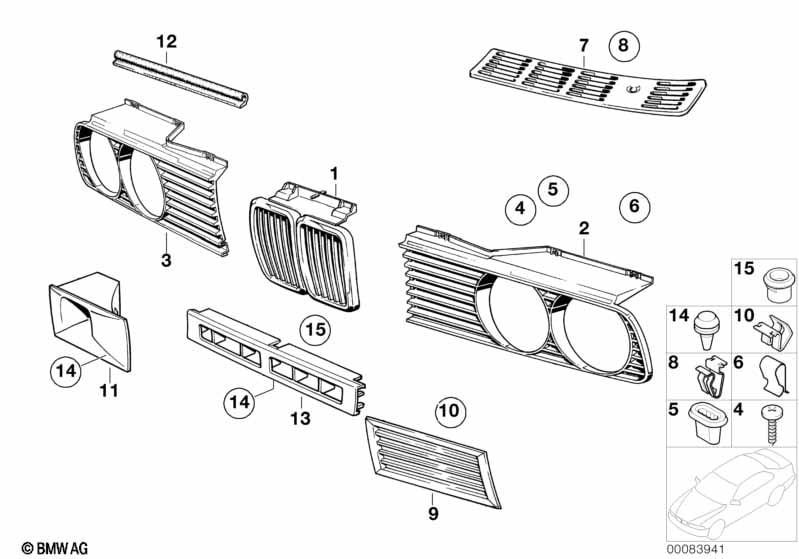

This Grille technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

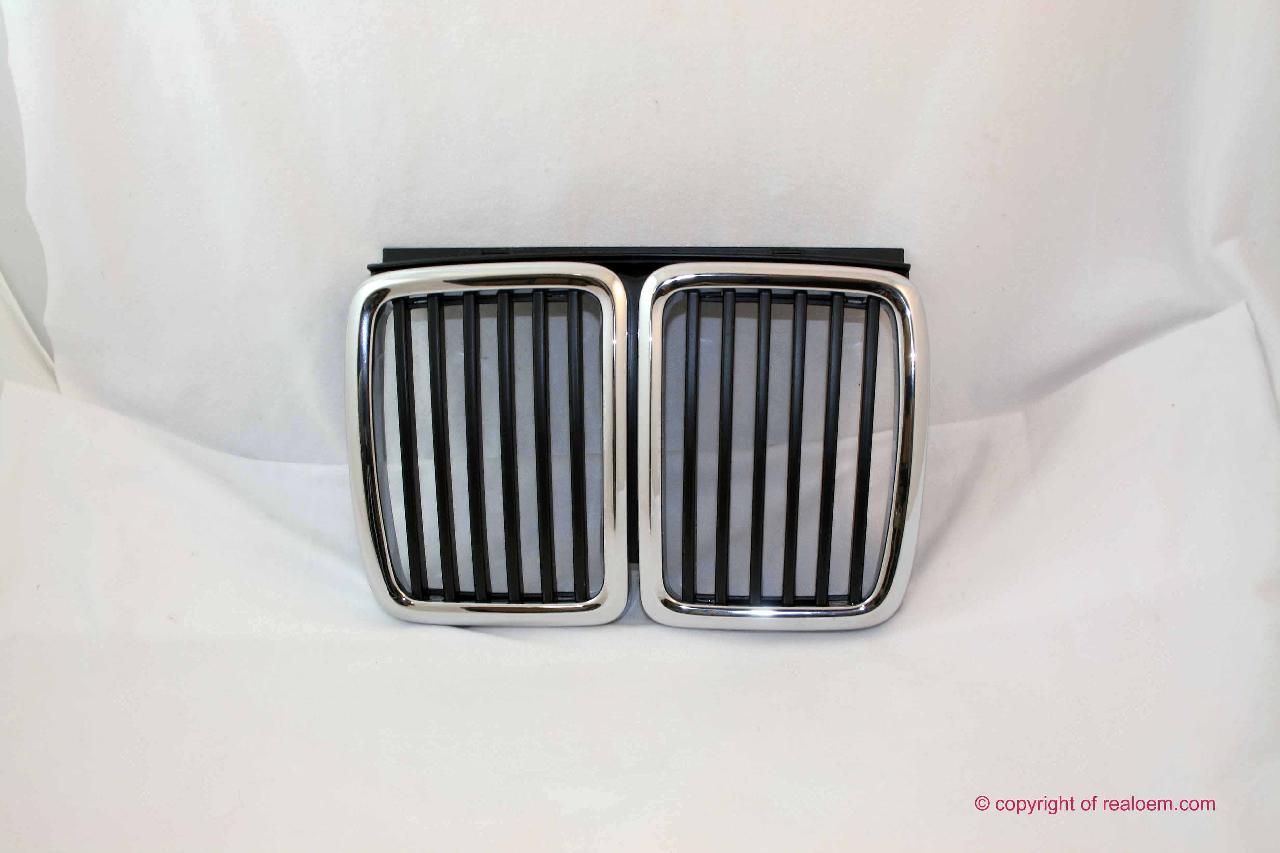

| 01 | Grille center | 1 | 51131945877 | $75.52 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Grille center | 1 | 51131945877 | $75.52 | Shop at ECS Tuning | |||||
| 02 | Grille left | 1 | 51131945885 | $135.16 | Shop at ECS Tuning | |||||
| 03 | Grille right | 1 | 51131945886 | $135.16 | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapping screw | ST3,9X13 | 4 | 07147202502 | $0.26 | Shop at ECS Tuning | ||||

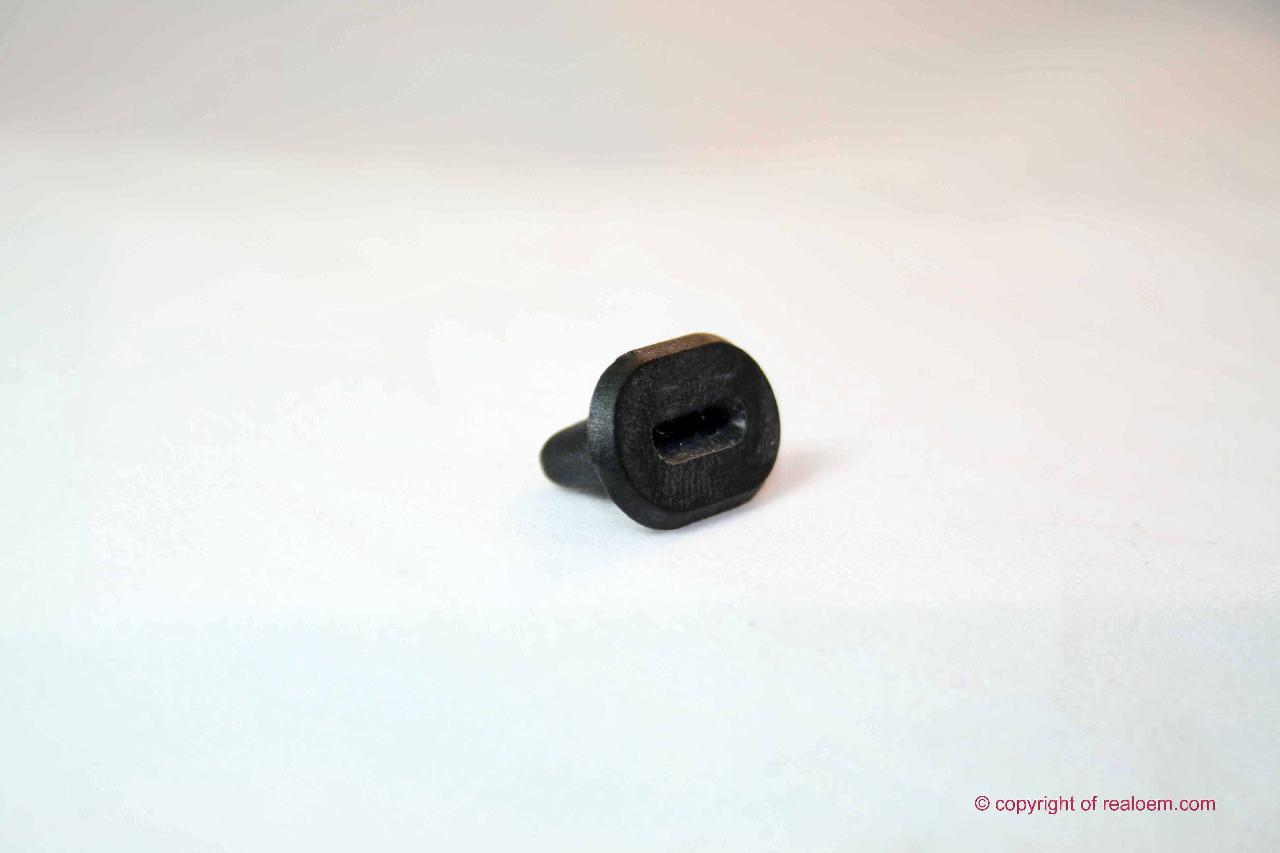

| 05 | Grommet | 12X6,3 | 4 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||

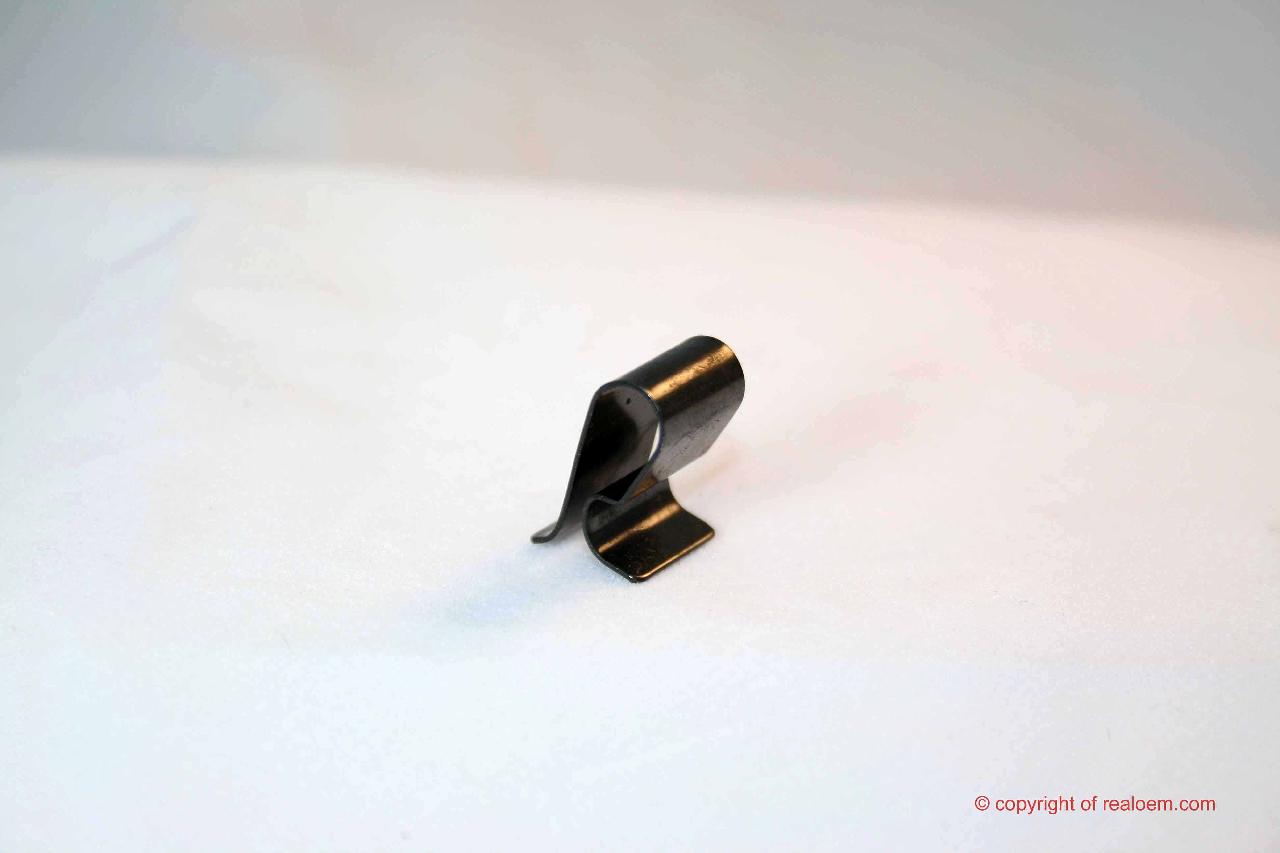

| 06 | Clamp | 8 | 51131872146 | $0.60 | Shop at ECS Tuning | |||||
| 07 | Grille left | 1 | 51131904571 | $28.31 | Shop at ECS Tuning | |||||
| 07 | Grille right | 1 | 51131904572 | $28.31 | Shop at ECS Tuning | |||||
| 08 | Fixing clamp | 8 | 51131904575 | $0.23 | Shop at ECS Tuning | |||||
| 10 | Clamp | X | 51711933759 | $0.28 | Shop at ECS Tuning | |||||
| 11 | Covering left | 1 | 09/1987 | 51711979323 | $15.34 | Shop at ECS Tuning | ||||
| 11 | Covering right | 1 | 09/1987 | 51711979324 | $15.34 | Shop at ECS Tuning | ||||
| 12 | Adhesive tape | 15X15 | 1 | 51131916525 | $25.10 | Shop at ECS Tuning | ||||
| 13 | Cover | 1 | 09/1987 | 51711953609 | $18.97 | Shop at ECS Tuning | ||||
| 14 | Plug | X | 09/1987 | 51711927439 | $0.58 | Shop at ECS Tuning | ||||
| 15 | Grommet, green | D=9,1MM | X | 09/1987 | 51711932996 | $0.23 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Grille?
- This technical diagram illustrates the Grille within the Vehicle trim group for the 3 Series E30 325i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Grille center (Part #51131945877).
- Which models use the hardware listed in this Grille?
- The hardware and components featured in the Grille are specific to the 3 Series E30 325i produced during 1989. These technical specifications ensure that parts like the Grille center (51131945877) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Grille assembly?
- Each item in the Grille corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Grille center by locating its position on the schematic, which then links to the official BMW part number 51131945877 for the Vehicle trim section.
