Grille for BMW 5 Series E34 525ix (1995)

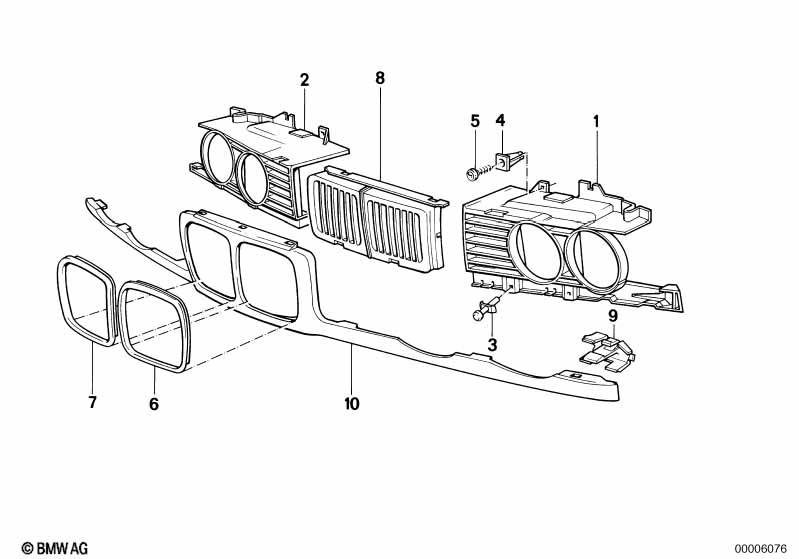

This Grille technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO NARROW KIDNEY GRILLE | ||||||||||
| 01 | Grille left | 1 | 51131944137 | $74.71 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO WIDE KIDNEY GRILLE | ||||||||||
| 01 | Grille left | 1 | 51138186441 | $74.71 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO NARROW KIDNEY GRILLE | ||||||||||
| 02 | Grille right | 1 | 51131944138 | $74.71 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO WIDE KIDNEY GRILLE | ||||||||||
| 02 | Grille right | 1 | 51138186442 | $74.71 | Shop at ECS Tuning | |||||
| 03 | Clamp | X | 51131885399 | $0.35 | Shop at ECS Tuning | |||||
| 04 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Sheet metal screw | ST4,8X16-Z2 | 2 | 51711916017 | $0.41 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO NARROW KIDNEY GRILLE | ||||||||||
| 06 | Decorative frame left | 1 | 51131973897 | $36.98 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO WIDE KIDNEY GRILLE | ||||||||||
| 06 | Decorative frame left | 1 | 51138148725 | $37.67 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO NARROW KIDNEY GRILLE | ||||||||||
| 07 | Decorative frame right | 1 | 51131973898 | $36.98 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO WIDE KIDNEY GRILLE | ||||||||||
| 07 | Decorative frame right | 1 | 51138148726 | $37.67 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO NARROW KIDNEY GRILLE | ||||||||||
| 08 | Grille center | 1 | 51131973825 | $55.46 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO WIDE KIDNEY GRILLE | ||||||||||
| 08 | Grille center | 1 | 51138148727 | $55.46 | Shop at ECS Tuning | |||||

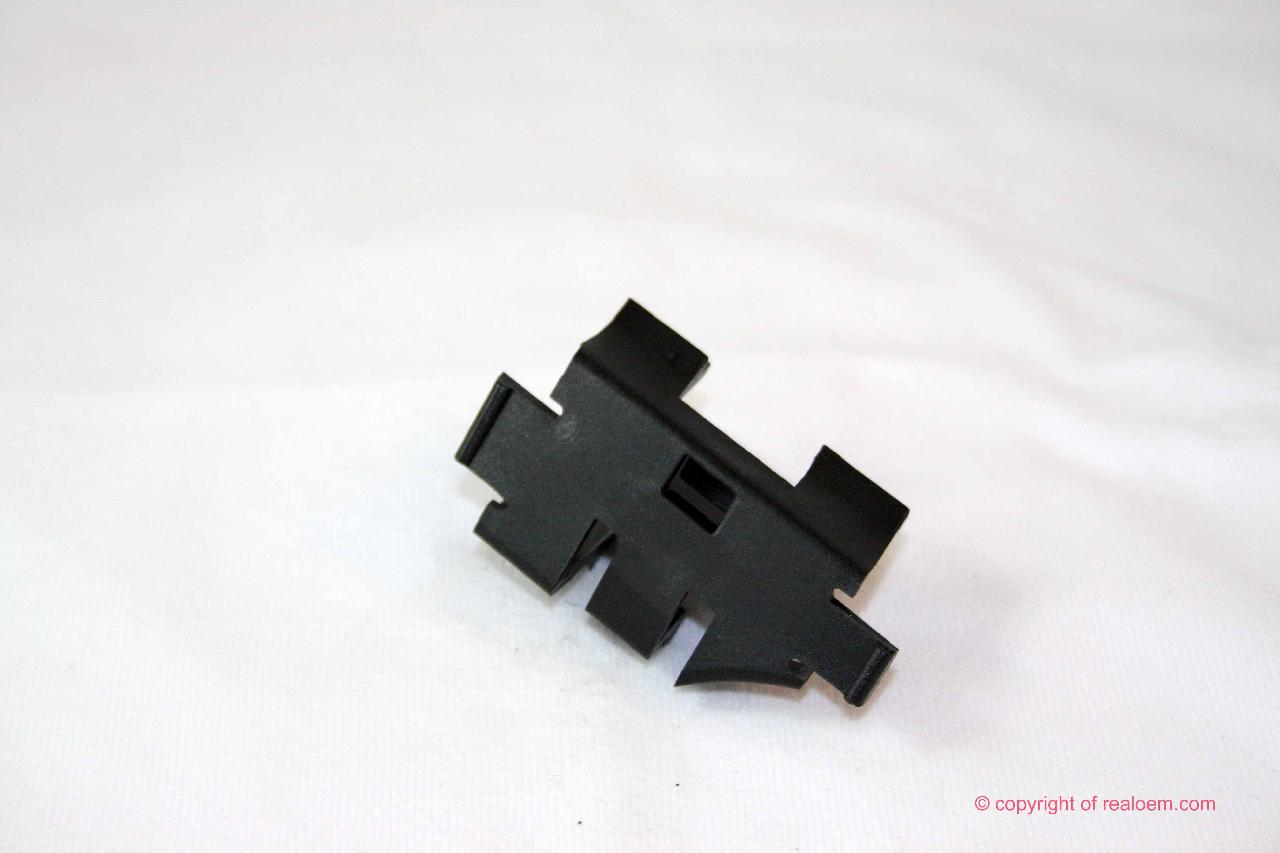

| 09 | Fixing clamp left | 1 | 51131978151 | $1.44 | Shop at ECS Tuning | |||||

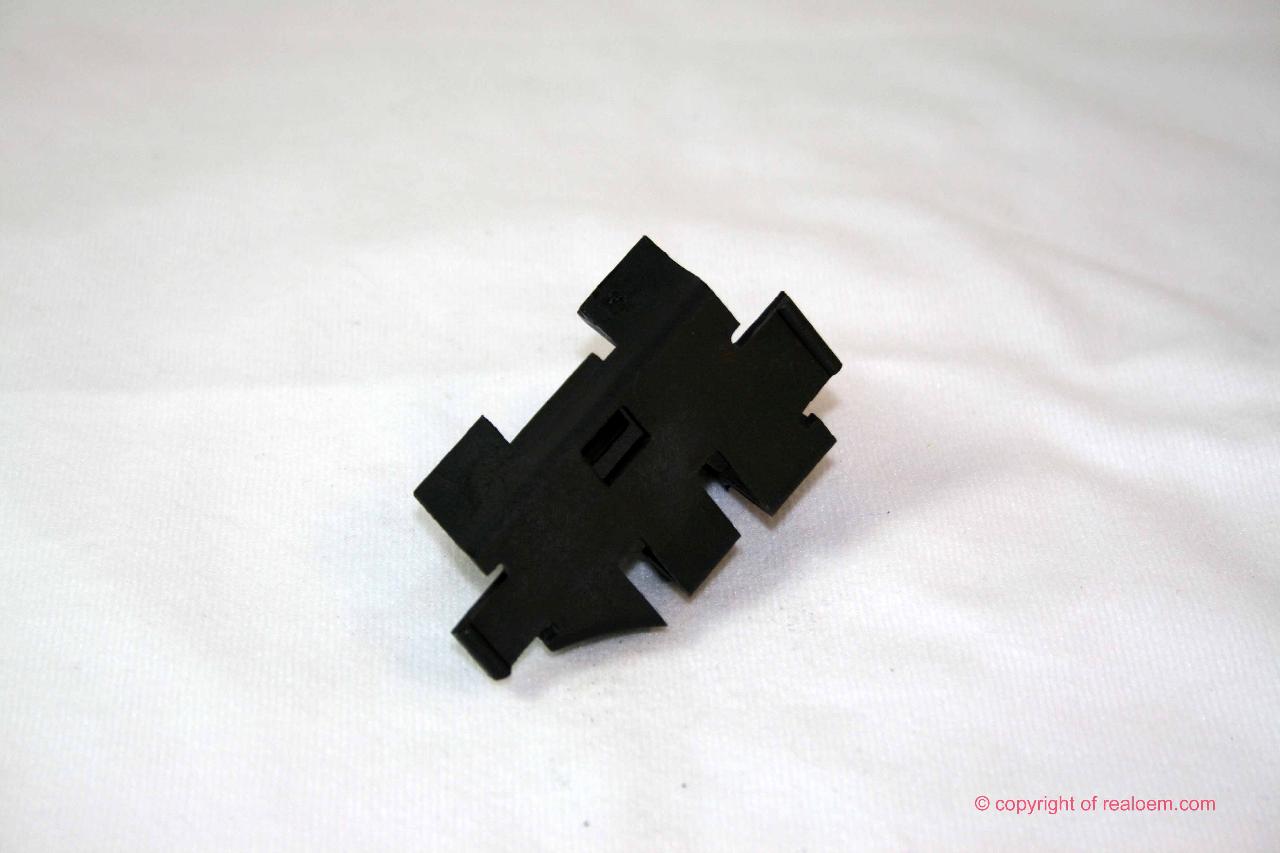

| 09 | Fixing clamp right | 1 | 51131978152 | $1.45 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO NARROW KIDNEY GRILLE | ||||||||||
| 10 | Cover | 1 | 51131978880 | $121.17 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO WIDE KIDNEY GRILLE | ||||||||||
| 10 | Cover | 1 | 51138170096 | $121.17 | Shop at ECS Tuning | |||||
