Mould.rock.panel-fender/door/covering for BMW 6 Series E24 633CSi (1981)

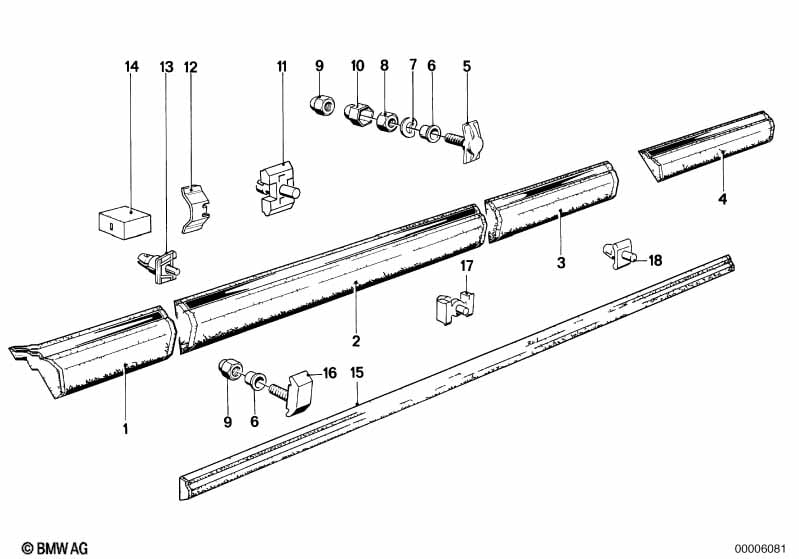

This Mould.rock.panel-fender/door/covering technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding fender front left | 1 | 09/1982 | 51131839137 | $44.14 | Shop at ECS Tuning | ||||
| 01 | Moulding fender front right | 1 | 09/1982 | 51131839138 | $44.14 | Shop at ECS Tuning | ||||
| 02 | Moulding door front left | 1 | 09/1982 | 51131839139 | $63.54 | ENDED | Shop at ECS Tuning | |||
| 02 | Moulding door front right | 1 | 09/1982 | 51131839140 | $63.54 | ENDED | Shop at ECS Tuning | |||
| 03 | Moulding fender rear left | 1 | 09/1982 | 51131839133 | $45.90 | ENDED | Shop at ECS Tuning | |||
| 03 | Moulding fender rear right | 1 | 09/1982 | 51131839134 | $45.90 | Shop at ECS Tuning | ||||
| 04 | Moulding fender rear left | 1 | 09/1982 | 51131839135 | $84.91 | ENDED | Shop at ECS Tuning | |||
| 04 | Moulding fender rear right | 1 | 09/1982 | 51131839136 | $84.91 | Shop at ECS Tuning | ||||
| 05 | Fastener | 2 | 51131869959 | $4.81 | Shop at ECS Tuning | |||||
| 06 | Grommet | D=7,5 | X | 51131883177 | $1.14 | Shop at ECS Tuning | ||||
| 06 | Grommet | D=6,8 | X | 51131916449 | $0.50 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B4 | X | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M4-A2-70 | X | 07119922854 | Shop at ECS Tuning | |||||
| 09 | Cap nut | M4 | X | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Covering cap | D=16,5MM | X | 51711839321 | $0.26 | Shop at ECS Tuning | ||||
| 11 | Clamp | X | 51131848312 | $1.06 | Shop at ECS Tuning | |||||
| 12 | Clamp | 2 | 51131859958 | $4.17 | Shop at ECS Tuning | |||||
| 13 | Clamp | 2 | 51131875898 | $0.67 | Shop at ECS Tuning | |||||
| 14 | Gasket | 4 | 51131859968 | $3.21 | ENDED | Shop at ECS Tuning | ||||
| 15 | Sill strip left | 1 | 09/1982 | 51131839489 | $160.03 | ENDED | Shop at ECS Tuning | |||
| 15 | Sill strip right | 1 | 09/1982 | 51131839490 | $160.03 | ENDED | Shop at ECS Tuning | |||
| 16 | Fastener | 2 | 51131873063 | $1.84 | Shop at ECS Tuning | |||||
| 17 | Clip | X | 51131808841 | $1.21 | Shop at ECS Tuning | |||||
| 18 | Clamp | 2 | 51131889479 | $1.53 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
