M cover for rocker panel / wheel arch for BMW 6 Series E24 628CSi

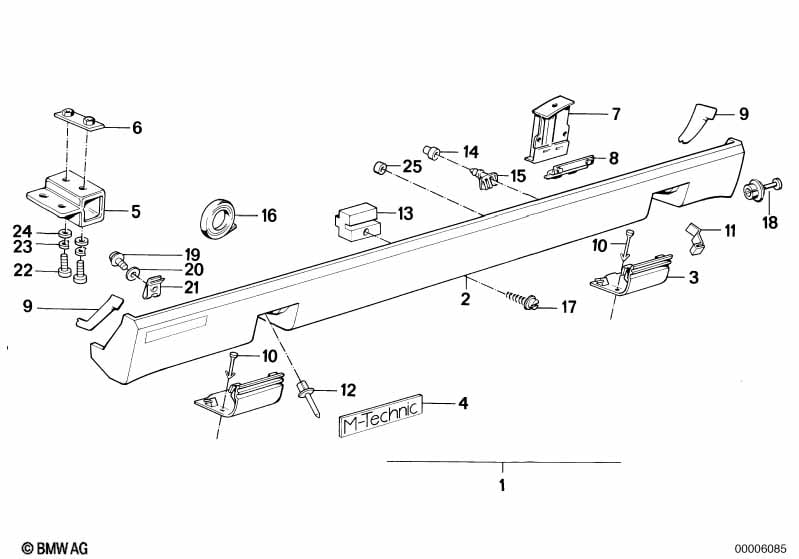

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral spoiler | M TECHNIC | 1 | 05/1982 | 51711919357 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering left | M TECHNIC | 1 | 05/1982 | 51711935511 | $463.57 | Shop at ECS Tuning | |||
| 02 | Covering right | M TECHNIC | 1 | 05/1982 | 51711935512 | $463.57 | Shop at ECS Tuning | |||
| 03 | Flap front left | M TECHNIC | 1 | 05/1982 | 51711919441 | $40.67 | Shop at ECS Tuning | |||
| 03 | Flap front right | M TECHNIC | 1 | 05/1982 | 51711919442 | $40.67 | ENDED | Shop at ECS Tuning | ||
| 03 | Flap rear left | M TECHNIC | 1 | 05/1982 | 51711919443 | $40.67 | Shop at ECS Tuning | |||
| 03 | Flap rear right | M TECHNIC | 1 | 05/1982 | 51711919444 | $40.67 | Shop at ECS Tuning | |||
| 04 | Stick-on label | M TECHNIC | 2 | 05/1982 | 51111919154 | $10.66 | Shop at ECS Tuning | |||
| 05 | Bracket jack fixture | M TECHNIC | 2 | 05/1982 | 51711930973 | $28.93 | Shop at ECS Tuning | |||
| 06 | Jack fixture | M TECHNIC | 2 | 05/1982 | 51711932299 | $4.78 | Shop at ECS Tuning | |||
| 07 | Bracket rear left | M TECHNIC | 1 | 05/1982 | 41111935457 | $56.99 | ENDED | Shop at ECS Tuning | ||
| 07 | Bracket rear right | M TECHNIC | 1 | 05/1982 | 41111935458 | $56.99 | ENDED | Shop at ECS Tuning | ||
| 08 | Mounting plate left | M TECHNIC | 1 | 05/1982 | 51714182159 | ENDED | Shop at ECS Tuning | |||
| 08 | Mounting plate right | M TECHNIC | 1 | 05/1982 | 51714182160 | ENDED | Shop at ECS Tuning | |||
| 09 | Foil left | M TECHNIC | 1 | 05/1982 | 51711926193 | $7.38 | Shop at ECS Tuning | |||
| 09 | Foil right | M TECHNIC | 1 | 05/1982 | 51711926194 | $7.38 | Shop at ECS Tuning | |||
| 09 | Foil left | M TECHNIC | 1 | 05/1982 | 51711926197 | $10.44 | Shop at ECS Tuning | |||
| 09 | Foil right | M TECHNIC | 1 | 05/1982 | 51711926198 | $12.73 | Shop at ECS Tuning | |||
| 10 | Holding strap | M TECHNIC | 4 | 05/1982 | 51711933219 | $0.61 | ENDED | Shop at ECS Tuning | ||
| 11 | Clamp | M TECHNIC | X | 05/1982 | 51711933204 | $1.13 | Shop at ECS Tuning | |||
| 12 | Expanding rivet | 2 | 05/1982 | 51471916670 | $0.45 | Shop at ECS Tuning | ||||
| 13 | Clamping | M TECHNIC | X | 05/1982 | 51711933125 | $2.17 | Shop at ECS Tuning | |||
| 14 | Grommet | M TECHNIC | X | 05/1982 | 51711919150 | $0.18 | ENDED | Shop at ECS Tuning | ||
| 15 | Clamp | M TECHNIC | X | 05/1982 | 51711919149 | $1.42 | Shop at ECS Tuning | |||
| 16 | Adhesive tape | 3000MM | 2 | 05/1982 | 51711976999 | $28.02 | Shop at ECS Tuning | |||
| 17 | Hex head screw | ST4,8X19-C-Z2 | X | 05/1982 | 07119916949 | $0.25 | Shop at ECS Tuning | |||
| 18 | Expanding rivet | 2 | 05/1982 | 51161881149 | $0.20 | Shop at ECS Tuning | ||||
| 19 | Screw | 2 | 05/1982 | 07119904170 | $0.17 | Shop at ECS Tuning | ||||
| 20 | Washer | 9X4,3X0,8-200HV | 2 | 05/1982 | 07119904205 | $0.07 | Shop at ECS Tuning | |||
| 21 | Body nut | ST4,2-4 | 2 | 05/1982 | 07129904144 | $0.09 | Shop at ECS Tuning | |||
| 22 | Hex bolt | M8X16-8.8-ZNS3 | X | 05/1982 | 07119902900 | $0.36 | Shop at ECS Tuning | |||
| 23 | Spring washer | B8 | X | 05/1982 | 07119933096 | $0.18 | Shop at ECS Tuning | |||
| 24 | Washer | 8,4X16X1,6-ZNNV | X | 05/1982 | 07119907030 | Shop at ECS Tuning | ||||
| 25 | Grommet, green | D=9,1MM | 6 | 05/1982 | 51711932996 | $0.23 | Shop at ECS Tuning |
