Protective Mouldings for BMW 3 Series E30 325i (1989)

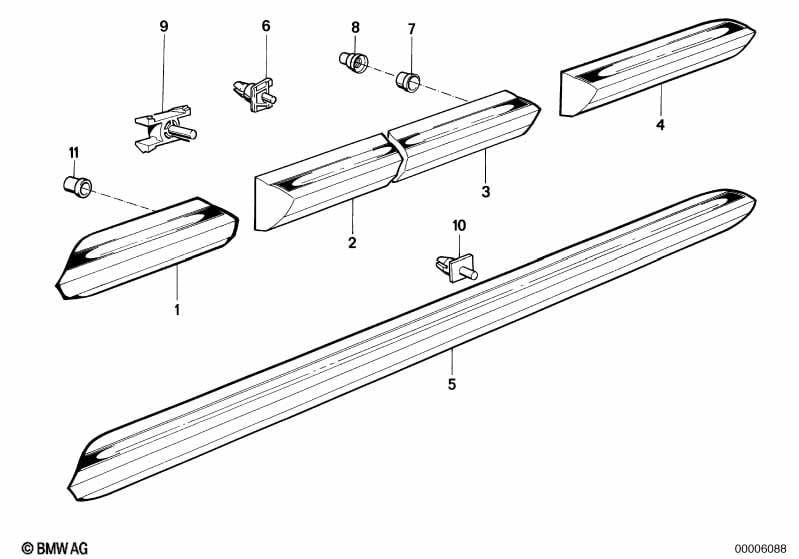

This Protective Mouldings technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding fender front left | SCHWARZ | 1 | 06/1988 | 51131953927 | $36.92 | Shop at ECS Tuning | |||
| 01 | Moulding fender front right | SCHWARZ | 1 | 06/1988 | 51131953928 | $36.92 | Shop at ECS Tuning | |||
| 02 | Moulding door front left | CHROM | 1 | 51131876131 | $70.42 | ENDED | Shop at ECS Tuning | |||
| 02 | Moulding door front right | CHROM | 1 | 51131876132 | $70.42 | Shop at ECS Tuning | ||||
| 02 | Moulding door front left | SCHWARZ | 1 | 06/1988 | 51131953929 | $56.78 | Shop at ECS Tuning | |||
| 02 | Moulding door front right | SCHWARZ | 1 | 06/1988 | 51131953930 | $56.78 | Shop at ECS Tuning | |||
| 04 | Moulding fender rear left | CHROM | 1 | 51131876133 | $42.25 | Shop at ECS Tuning | ||||
| 04 | Moulding fender rear right | CHROM | 1 | 51131876134 | $42.25 | Shop at ECS Tuning | ||||
| 04 | Moulding fender rear left | SCHWARZ | 1 | 06/1988 | 51131965105 | $34.07 | Shop at ECS Tuning | |||
| 04 | Moulding fender rear right | SCHWARZ | 1 | 06/1988 | 51131965106 | $34.07 | Shop at ECS Tuning | |||

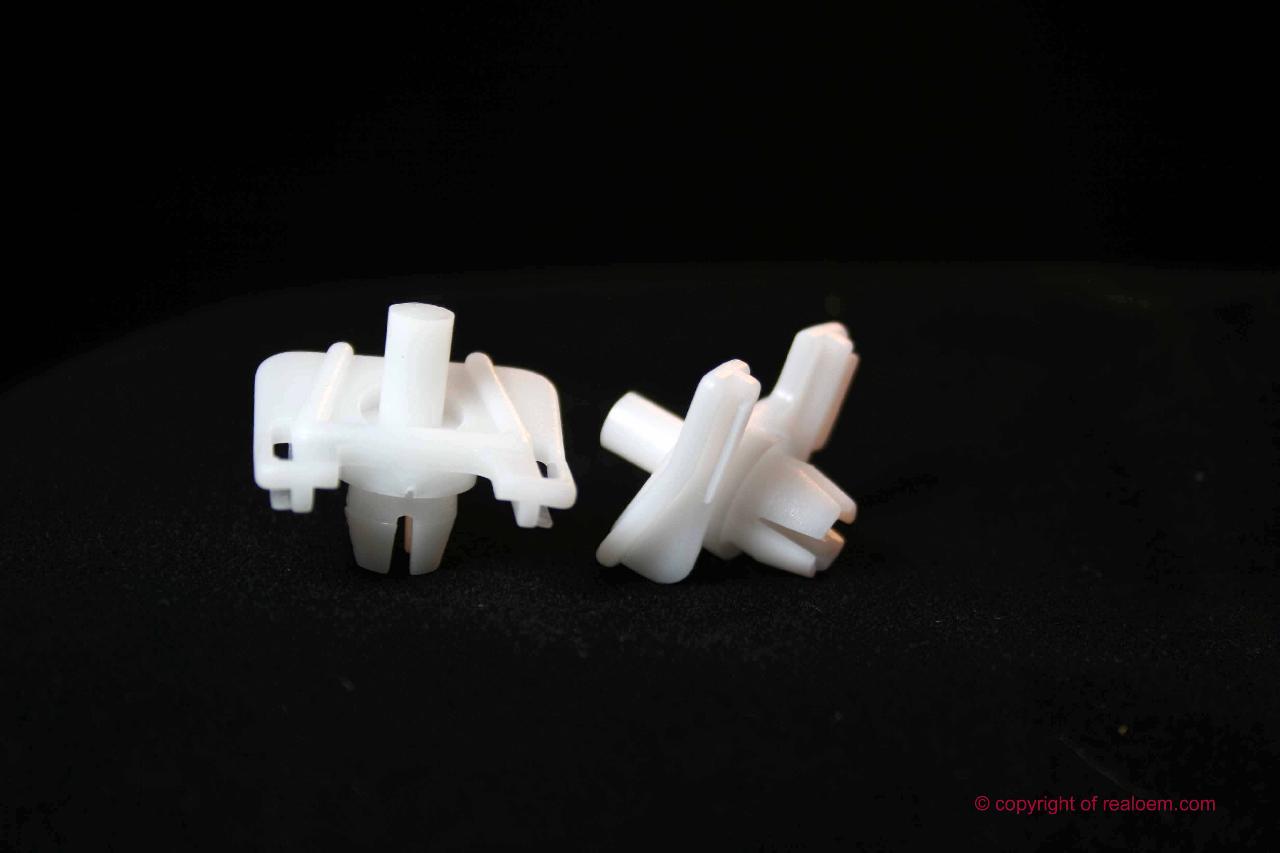

| 06 | Clip | 6 | 51131876128 | $0.59 | Shop at ECS Tuning | |||||
| 07 | Grommet | 2 | 51121867907 | $0.46 | Shop at ECS Tuning | |||||
| 07 | Grommet | D=6,8 | 8 | 51131916449 | $0.50 | Shop at ECS Tuning | ||||

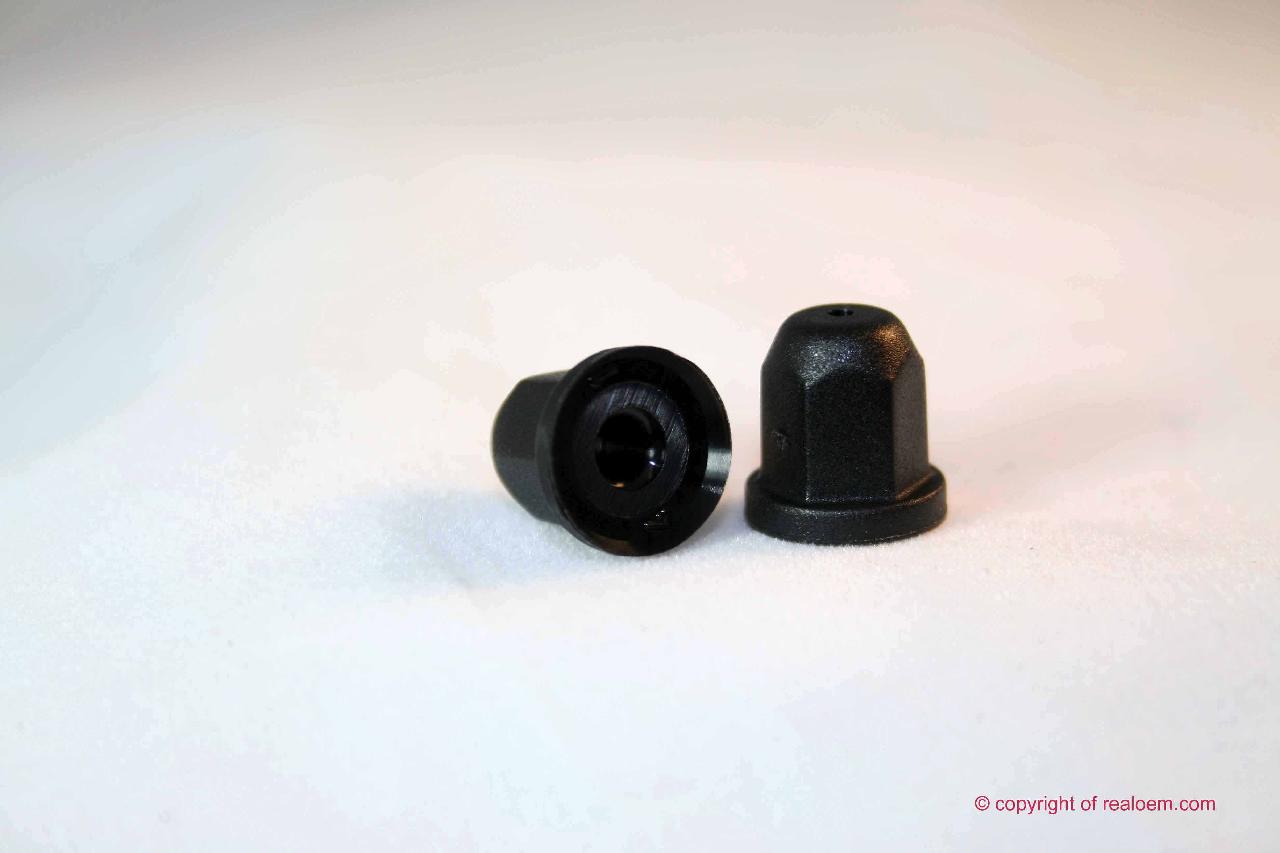

| 08 | Cap nut | M4 | 6 | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Clamp | 6 | 51131829904 | $0.42 | Shop at ECS Tuning | |||||
| 11 | Grommet | X | 51121867907 | $0.46 | Shop at ECS Tuning |
