Protective Mouldings for BMW 5 Series E34 525i (1996)

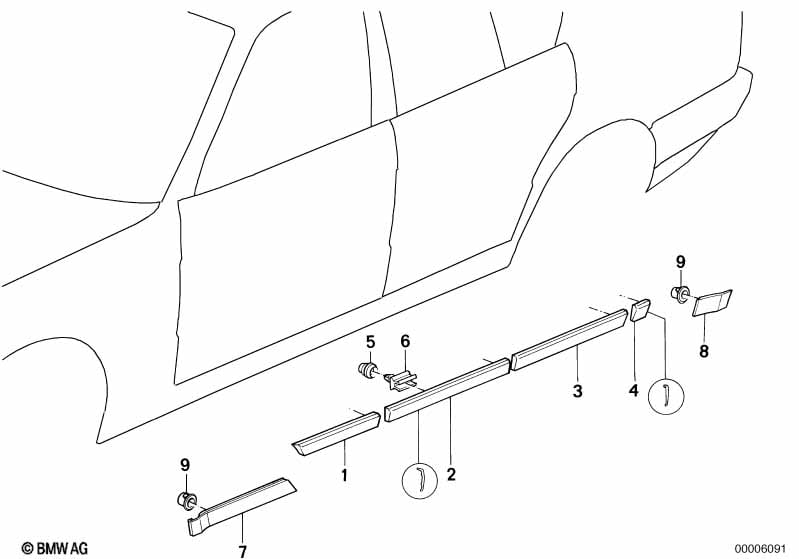

This Protective Mouldings technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding fender front left | 1 | 51131944941 | $34.44 | Shop at ECS Tuning | |||||
| 01 | Moulding fender front right | 1 | 51131944942 | $34.44 | Shop at ECS Tuning | |||||
| 02 | Moulding door front left | 1 | 51131934177 | $52.97 | Shop at ECS Tuning | |||||
| 02 | Moulding door front right | 1 | 51131934178 | $52.97 | Shop at ECS Tuning | |||||
| 03 | Moulding door rear left | 1 | 51131934181 | $50.31 | Shop at ECS Tuning | |||||
| 03 | Moulding door rear right | 1 | 51131934182 | $50.31 | Shop at ECS Tuning | |||||
| 04 | Moulding fender rear left | 1 | 51131934183 | $13.25 | Shop at ECS Tuning | |||||
| 04 | Moulding fender rear right | 1 | 51131934184 | $13.25 | Shop at ECS Tuning | |||||
| 05 | Grommet | X | 51131934160 | $0.32 | Shop at ECS Tuning | |||||
| 06 | Clamp | X | 51131946258 | $0.35 | Shop at ECS Tuning | |||||
| 07 | Covering left | 1 | 51131978193 | $15.95 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering right | 1 | 51131978194 | $15.95 | Shop at ECS Tuning | |||||
| 08 | Covering left | 1 | 51131978195 | $5.84 | Shop at ECS Tuning | |||||
| 08 | Covering right | 1 | 51131978196 | $5.31 | Shop at ECS Tuning | |||||
| 09 | Grommet | 8 | 51131934160 | $0.32 | Shop at ECS Tuning |
