M cover for rocker panel / wheel arch for BMW 5 Series E34 535i (1993)

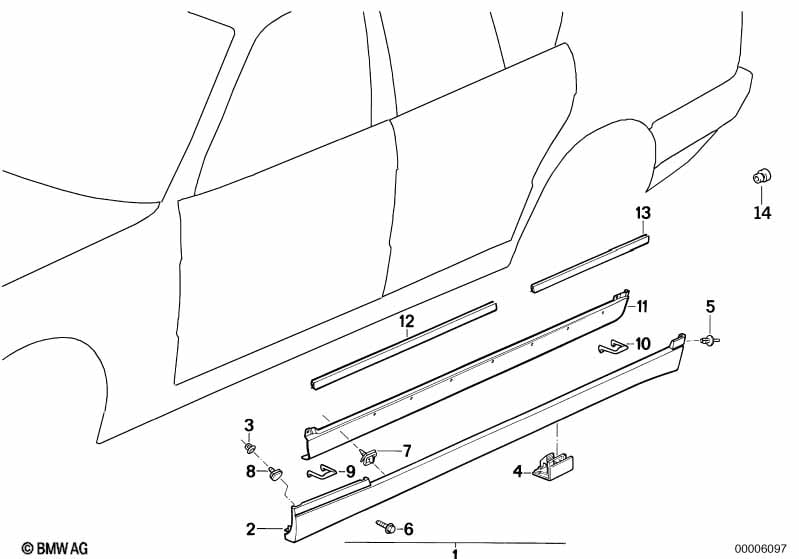

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO M TECHNIC | |||||||||
| 01 | Retrofit kit, M door sill trim, primed | 1 | 51712231639 | $758.00 | ENDED, ABE 9786608 | Shop at ECS Tuning | ||||
| 02 | Left door sill trim panel | M TECHNIC | 1 | 51712230339 | $359.96 | Shop at ECS Tuning | ||||
| 02 | Right door sill trim panel | M TECHNIC | 1 | 51712230340 | $359.96 | Shop at ECS Tuning | ||||
| 03 | Grommet | X | 51131934160 | $0.32 | Shop at ECS Tuning | |||||
| 04 | Clamping | X | 51711938940 | $1.56 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | 4 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 06 | Hex head screw | ST6,3X19-C-Z2 | 4 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 07 | Clamp | X | 51711959929 | $0.85 | Shop at ECS Tuning | |||||
| 08 | Plug | M TECHNIC | 8 | 51162239737 | $1.28 | Shop at ECS Tuning | ||||
| 09 | Gasket left | M TECHNIC | 1 | 51712231619 | $8.60 | Shop at ECS Tuning | ||||
| 09 | Gasket right | M TECHNIC | 1 | 51712231620 | $8.60 | Shop at ECS Tuning | ||||
| 10 | Gasket | M TECHNIC | 2 | 51712231621 | $7.92 | Shop at ECS Tuning | ||||
| 11 | Drilling template left | M TECHNIC | 1 | 51712231637 | $46.26 | Shop at ECS Tuning | ||||
| 11 | Drilling template right | M TECHNIC | 1 | 51712231638 | $46.26 | Shop at ECS Tuning | ||||
| 12 | Covering left | M TECHNIC | 1 | 51212230373 | $87.83 | Shop at ECS Tuning | ||||
| 12 | Covering right | M TECHNIC | 1 | 51212230374 | $87.83 | Shop at ECS Tuning | ||||
| 13 | Covering, rear | M TECHNIC | 2 | 51222230398 | $90.32 | Shop at ECS Tuning | ||||
| 14 | Blind plug | D=6MM | 2 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
